Hydraulic HDPE Butt Fusion Machines

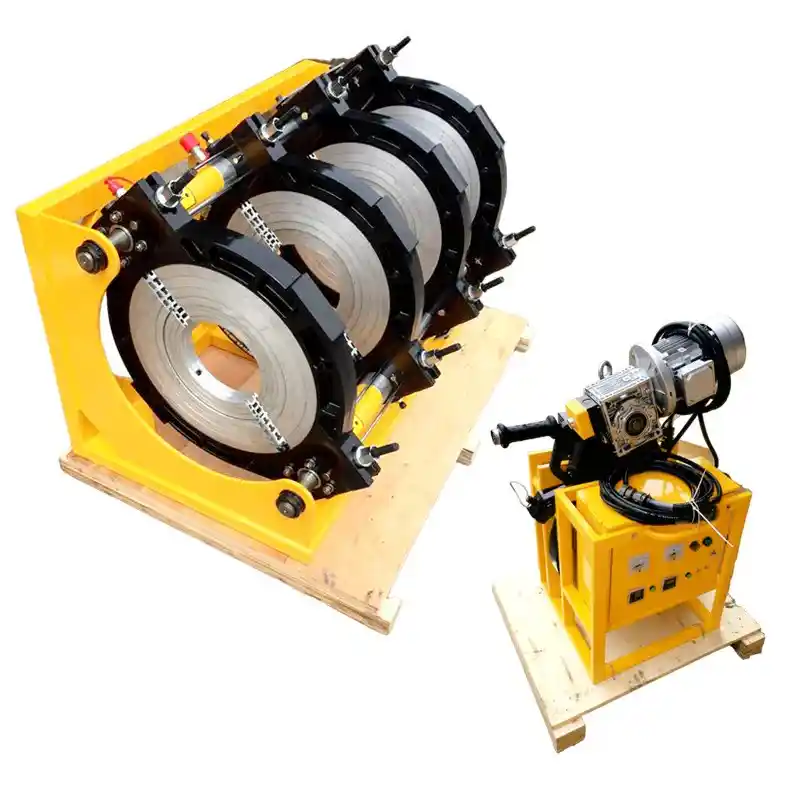

200 to 500mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 200 to 500mm Hydraulic HDPE Butt Fusion Welding Machine is designed for large-diameter pipe jointing. With a 6 kW heating plate, 1.5 kW planning tool, 1.5 kW hydraulic unit and 0 to 6.3 Mpa pressure range, it is suited to heavy-duty water, industrial and infrastructure pipeline work.
₹400,479.00
excl. GST
₹472,566.00
incl. GST (18%)
Get Your Best Price
Get best price & project quote
Call / WhatsApp
+91 9717593776
EXTRA 10% DISCOUNT
Use Code
SOLWETM10
at checkout
✓
Stock Ready Available
READY TO DISPATCH
Dispatch in 1–2 Days
•
Fastest Delivery
•
Express Shipping
•
Call for Free Delivery
The Solwet 200 to 500mm Hydraulic HDPE Butt Fusion Welding Machine is designed for large-diameter pipe jointing. With a 6.0 kW heating plate, 1.5 kW planning tool, 1.5 kW hydraulic unit and 0 to 6.3 Mpa pressure range, it is suited to heavy-duty water, industrial and infrastructure pipeline work.
Applications
Large-diameter water transmission, industrial pipelines, infrastructure and heavy-duty HDPE pipe installation.
Key Technical Specifications
- Fusion Range: 200 to 500 mm
- Pipe Material: HDPE / PE / MDPE
- Heating Plate Power: 5.38 kW
- Planning Tool Power: 1.5 kW
- Hydraulic Unit Power: 1.5 kW
- Total Power: 9.0 kW
- Heating Temperature: 300?C
- Pressure Range: 0 to 6.3 Mpa
- Voltage: 415V
- Frequency: 50 Hz
- Phase: 3 Phase
- Weight: 485 kg
- Packing: 3 Wooden Boxes
Frequently Asked Questions
- What pipe sizes does it support?
- The listed fusion range is 200 to 500 mm.
- What is the total power?
- The stated total power is 9.0 kW.
- What electrical supply is specified?
- It uses 415V, 50 Hz, 3-phase power.
- What pressure range is available?
- Hydraulic pressure is adjustable from 0 to 6.3 Mpa.
| Weight | 320 kg |
|---|---|
| Dimensions | 122 × 98 × 116 cm |
| Welding Pipe Range Clamps (mm) | 200, 225, 250, 280, 315, 355, 400, 450, 500mm |
| Product Type | Semi-Automatic Hydraulic HDPE Butt Fusion Machine |
| Model Number | SMH500 |
| Pipe Material | HDPE / PE / MDPE |
| Fusion Range | 200 to 500 mm |
| Welding Method | Butt Fusion |
| Operation | Hydraulic |
| Control | Hydraulic |
| Voltage | 415V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| Heating Temperature | Up to 300?C |
| Heating Plate Power | 6.0 kW |
| Trimmer/Planning Tool Power | 1.50 kW |
| Hydraulic Unit Power | 1.5 kW |
| Total Power | 9.00 kW |
| Pressure Adjustment Range | 0 to 6.3 MPa |
| Generator Required | 10 kVA |
| Total Weight | 485 |
| Packing Type | 3 Wooden Boxs for machine frame -121*89*97, trimmer & heating plate -81*68*116cm & Control box -67*50*50 |
| Application | Large-diameter water transmission, industrial pipelines, infrastructure and heavy-duty HDPE pipe installation. |
| Condition | New |
| Country of Origin | China |
| Warranty | One Year / 5 Years Spare parts Support |
Based on 0 reviews
Be the first to review “200 to 500mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder”
Hydraulic HDPE Butt Fusion Machines
063 to 250mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
-39%
Hydraulic HDPE Butt Fusion Machines
063 to 250mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
The Solwet 63 to 250mm Hydraulic HDPE Pipe Jointing Machine is built for controlled butt fusion of HDPE, PE and MDPE pipes. Its 2.2 kW heating plate, 2.5 kW planning tool and 0 to 6.3 Mpa adjustable pressure support accurate pipe preparation and joining for water, irrigation and industrial pipelines.
SKU: SOL_BO4PHQS968
Hydraulic HDPE Butt Fusion Machines
500 to 800mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
-5%
Hydraulic HDPE Butt Fusion Machines
500 to 800mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 500 to 800mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 12.5 kW heating plate, 2.2 kW planning tool, 1.5 kW hydraulic unit and 0 to 10 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
SKU: SOL_8NOCV1Y38100
Hydraulic HDPE Butt Fusion Machines
710 to 1200mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
-14%
Hydraulic HDPE Butt Fusion Machines
710 to 1200mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 710 to 1200mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 21.5 kW heating plate, 4.0 kW planning tool, 4 kW hydraulic unit and 0 to 15 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
SKU: SOL_289N1B738102
Hydraulic HDPE Butt Fusion Machines
040 to 200mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
-25%
Hydraulic HDPE Butt Fusion Machines

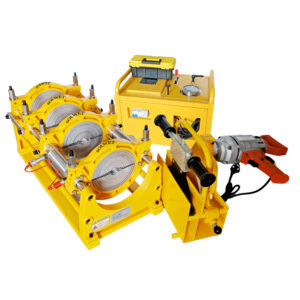

040 to 200mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
The Solwet 40 to 200mm Hydraulic HDPE Pipe Jointing Machine provides controlled butt fusion welding for HDPE, PE and MDPE pipes. With a 1.8 kW heating plate, 1.20 kW planing tool, and a 0 to 6.3 MPa pressure range, it suits professional water, irrigation, and industrial pipeline work.
SKU: SOL_5X51UKF966
Hydraulic HDPE Butt Fusion Machines
630 to 1000mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
-13%
Hydraulic HDPE Butt Fusion Machines

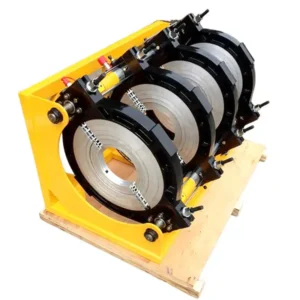

630 to 1000mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 630 to 1000mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 17.50 kW heating plate, 3.0 kW planning tool, 2.2 kW hydraulic unit and 0 to 15 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
SKU: SOL_87P89MZ38099
Enquiry for 200 to 500mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
You may also like…
- Hydraulic HDPE Butt Fusion Machines

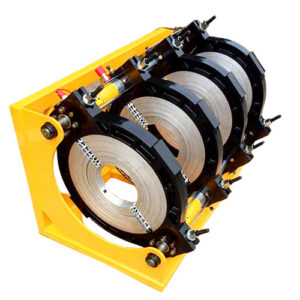

160 to 400mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
-13%Hydraulic HDPE Butt Fusion Machines160 to 400mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 160 to 400mm Hydraulic HDPE Butt Fusion Machine is designed for controlled welding of medium-to-large HDPE pipes. Its 4.8 kW heating plate, 1.10 kW planning tool, 1.1 kW hydraulic unit and 0 to 6.3 MPa pressure range make it suitable for water, irrigation, industrial and pipeline installation work.
SKU: SOL_H89X75S28953 - Hydraulic HDPE Butt Fusion Machines

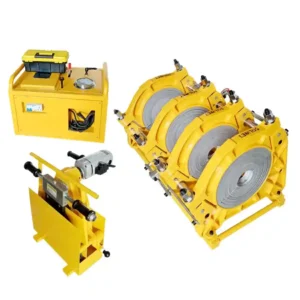

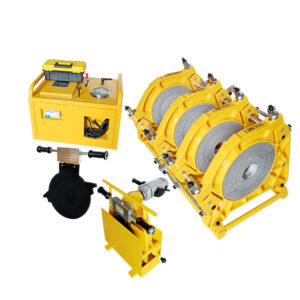

315 to 630mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
