Hydraulic HDPE Butt Fusion Machines

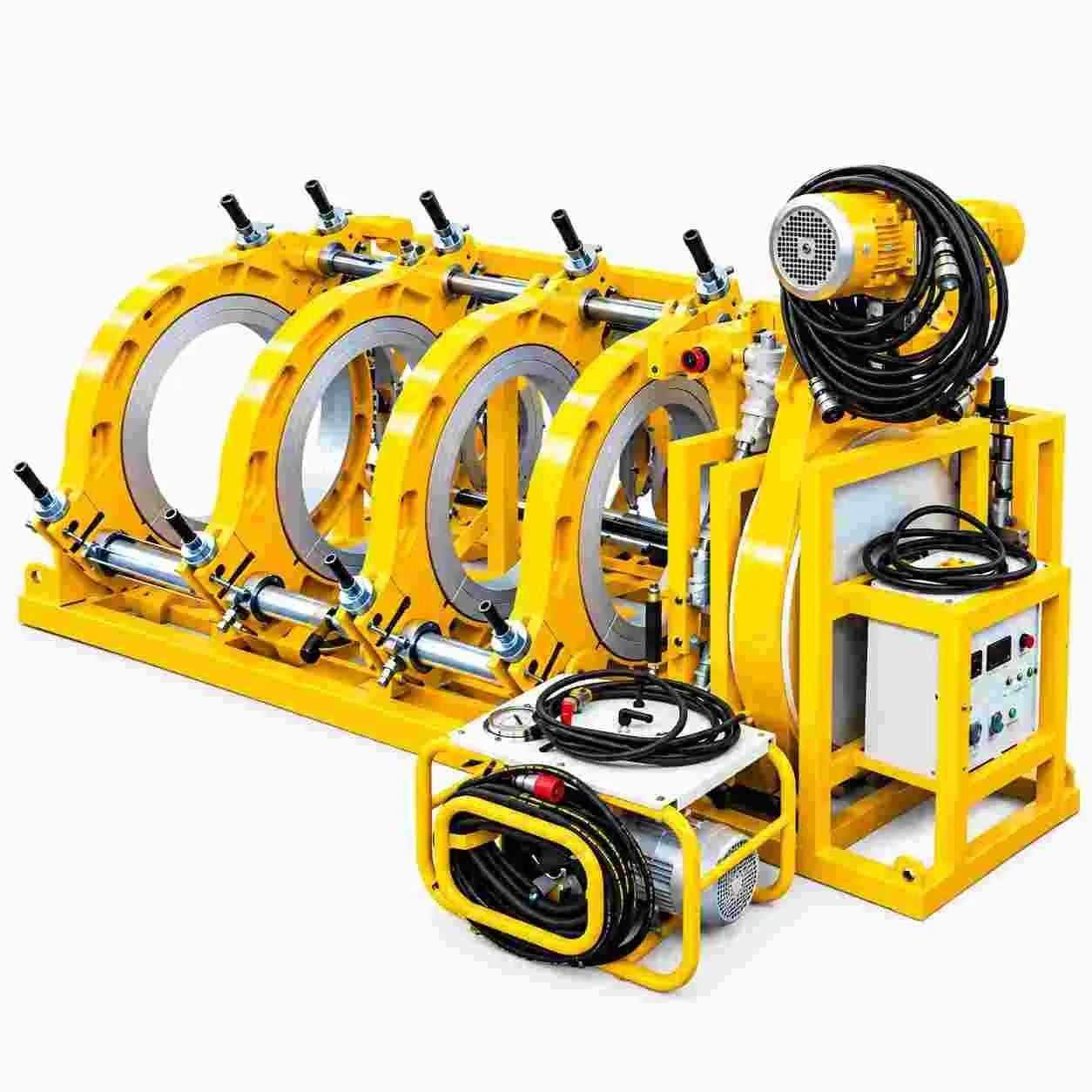

200 to 450mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
The Solwet 200 to 450mm Hydraulic HDPE Welding Machine is designed for large-diameter butt fusion of HDPE pipes. It combines a 5.3 kW heating plate, 1.1 kW planning tool, 1.1 kW hydraulic unit and 0 to 6.3 MPa pressure adjustment, making it suitable for professional water, irrigation and industrial pipeline projects.
₹315,995.00
excl. GST
₹372,874.00
incl. GST (18%)
Get Your Best Price
Get best price & project quote
Call / WhatsApp
+91 9717593776
EXTRA 10% DISCOUNT
Use Code
SOLWETM10
at checkout
✓
Stock Ready Available
READY TO DISPATCH
Dispatch in 1–2 Days
•
Fastest Delivery
•
Express Shipping
•
Call for Free Delivery
The Solwet 200 to 450mm Hydraulic HDPE Welding Machine is designed for large-diameter butt fusion of HDPE pipes. It combines a 5.3 kW heating plate, 1.1 kW planning tool, 1.1 kW hydraulic unit and 0 to 6.3 Mpa pressure adjustment, making it suitable for professional water, irrigation and industrial pipeline projects.
Applications
Large-diameter water supply, irrigation, industrial piping and infrastructure pipeline construction.
Key Technical Specifications
- Fusion Range: 200 to 450 mm
- Pipe Material: HDPE / PE / MDPE
- Heating Plate Power: 5.3 kW
- Planning Tool Power: 1.1 kW
- Hydraulic Unit Power: 1.1 kW
- Total Power: 7.5 kW
- Heating Temperature: 50 to 300?C
- Pressure Range: 0 to 6.3 Mpa
- Voltage: 415V
- Frequency: 50 Hz
- Phase: 3 Phase
- Weight: 420 kg
- Packing: 3 Wooden Boxes
Frequently Asked Questions
- What pipe sizes can this machine weld?
- The listed fusion range is 200 to 450 mm.
- What is the heating plate power?
- The heating plate power is 5.3 kW.
- What electrical supply is specified?
- It is specified for 415V, 50 Hz, 3-phase operation.
- What is the total power?
- The stated total power is 7.5 kW.
Technical Specifications :-
| Weight | 420 kg |
|---|---|
| Dimensions | 120 × 96 × 113 cm |
| Welding Pipe Range Clamps (mm) | 200, 225, 250, 280, 315, 355, 400, 450mm |
| Product Type | Semi-Automatic Hydraulic HDPE Butt Fusion Machine |
| Model Number | SMH450 |
| Pipe Material | HDPE / PE / MDPE |
| Fusion Range | 200 to 450 mm |
| Welding Method | Butt Fusion |
| Operation | Hydraulic |
| Control | Hydraulic |
| Voltage | 415V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| Heating Temperature | Up to 300?C |
| Heating Plate Power | 5.3 kW |
| Trimmer/Planning Tool Power | 1.10 kW |
| Hydraulic Unit Power | 1.10 kW |
| Total Power | 7.50 kW |
| Pressure Adjustment Range | 0 to 6.3 MPa |
| Generator Required | 10 kVA |
| Total Weight | 405 |
| Packing Type | 3 Wooden Boxs for machine frame -120*86*95, trimmer & heating plate – 78*68*1134 & Control box -67*50*50 |
| Application | Large-diameter water supply, irrigation, industrial piping and infrastructure pipeline construction. |
| Condition | New |
| Country of Origin | China |
| Warranty | One Year / 5 Years Spare parts Support |
