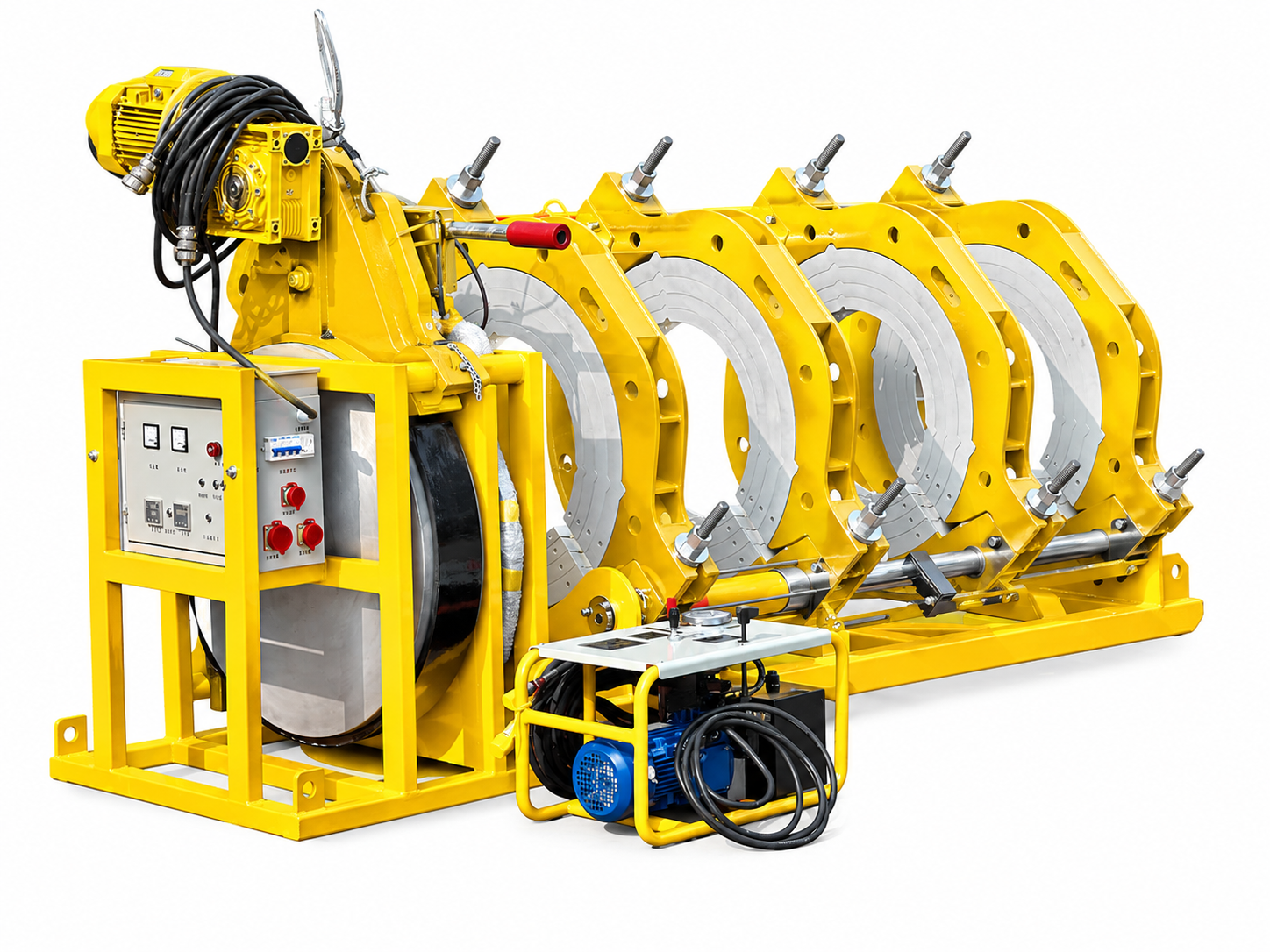

500 to 800mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
Out of stock
The Solwet 500 to 800mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 12.5 kW heating plate, 2.2 kW planning tool, 1.5 kW hydraulic unit and 0 to 10 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
₹833,390.00
excl. GST
₹983,400.00
incl. GST (18%)
Out of stock
The Solwet 500 to 800mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 12.5 kW heating plate, 2.2 kW planning tool, 1.5 kW hydraulic unit and 0 to 10 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
Applications
Large-scale water transmission, industrial pipelines, infrastructure, mining and major HDPE pipeline projects.
Key Technical Specifications
- Fusion Range: 500 to 800 mm
- Pipe Material: HDPE / PE / MDPE
- Heating Plate Power: 12.5 kW
- Planning Tool Power: 2.2 kW
- Hydraulic Unit Power: 1.5 kW
- Total Power: 16.2 kW
- Heating Temperature: 270?C
- Pressure Range: 0 to 10 Mpa
- Voltage: 415V
- Frequency: 50 Hz
- Phase: 3 Phase
- Weight: 1300 kg
- Packing: 3 Wooden Boxes
Frequently Asked Questions
- What is the fusion range?
- The machine covers 500 to 800 mm pipe sizes.
- What is the heating plate power?
- The heating plate is rated at 12.5 kW.
- What is the total power?
- The specified total power is 16.2 kW.
- What type of work is it suited for?
- It is designed for large-diameter HDPE butt fusion in water, industrial and infrastructure pipelines.
| Weight | 1300 kg |
|---|---|
| Dimensions | 213 × 122 × 130 cm |
| Welding Pipe Range Clamps (mm) | 500, 630, 710, 800mm |
| Product Type | Semi-Automatic Hydraulic HDPE Butt Fusion Machine |
| Model Number | SMH800 |
| Pipe Material | HDPE / PE / MDPE |
| Fusion Range | 500 to 800 mm |
| Welding Method | Butt Fusion |
| Operation | Hydraulic |
| Control | Hydraulic |
| Voltage | 415V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| Heating Temperature | Up to 300?C |
| Heating Plate Power | 12.5 kW |
| Trimmer/Planning Tool Power | 2.2 kW |
| Hydraulic Unit Power | 1.5 kW |
| Total Power | 16.20 kW |
| Pressure Adjustment Range | 0 to 10 MPa |
| Generator Required | 15 kVA |
| Total Weight | 1300 |
| Packing Type | 3 Wooden Boxs for machine frame -213*122*130, trimmer & heating plate -130*90*160 & Control box – 67*50*50 |
| Application | Large-scale water transmission, industrial pipelines, infrastructure, mining and major HDPE pipeline projects. |
| Condition | New |
| Country of Origin | China |
| Warranty | One Year / 5 Years Spare parts Support |
Based on 0 reviews
Be the first to review “500 to 800mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder”
710 to 1200mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
710 to 1200mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 710 to 1200mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 21.5 kW heating plate, 4.0 kW planning tool, 4 kW hydraulic unit and 0 to 15 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
090 to 355mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
090 to 355mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
The Solwet 90 to 355mm Semi-Automatic Hydraulic HDPE Butt Fusion Machine is designed for reliable pipe alignment, heating and joining across a 90 to 355mm fusion range. It uses a 3.8 kW heating plate, 2.5 kW planning tool and 0 to 6.3 Mpa pressure adjustment for professional water, irrigation and industrial pipeline installation.

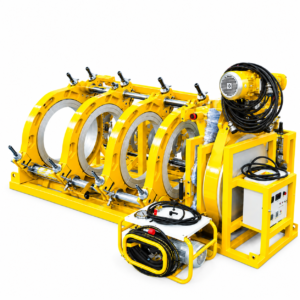

200 to 500mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
200 to 500mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 200 to 500mm Hydraulic HDPE Butt Fusion Welding Machine is designed for large-diameter pipe jointing. With a 6 kW heating plate, 1.5 kW planning tool, 1.5 kW hydraulic unit and 0 to 6.3 Mpa pressure range, it is suited to heavy-duty water, industrial and infrastructure pipeline work.

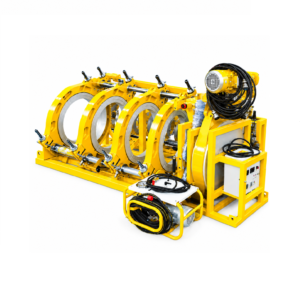

160 to 400mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
160 to 400mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
The Solwet 160 to 400mm Hydraulic HDPE Butt Fusion Machine is designed for controlled welding of medium-to-large HDPE pipes. Its 4.8 kW heating plate, 1.10 kW planning tool, 1.1 kW hydraulic unit and 0 to 6.3 MPa pressure range make it suitable for water, irrigation, industrial and pipeline installation work.

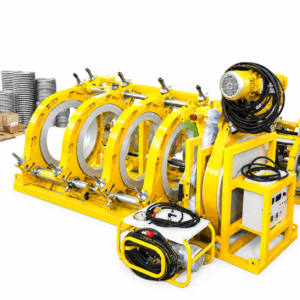

315 to 630mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
