HDPE Butt Fusion Welding Machine Hydraulic 315 to 630mm

540,000.00 510,000.00

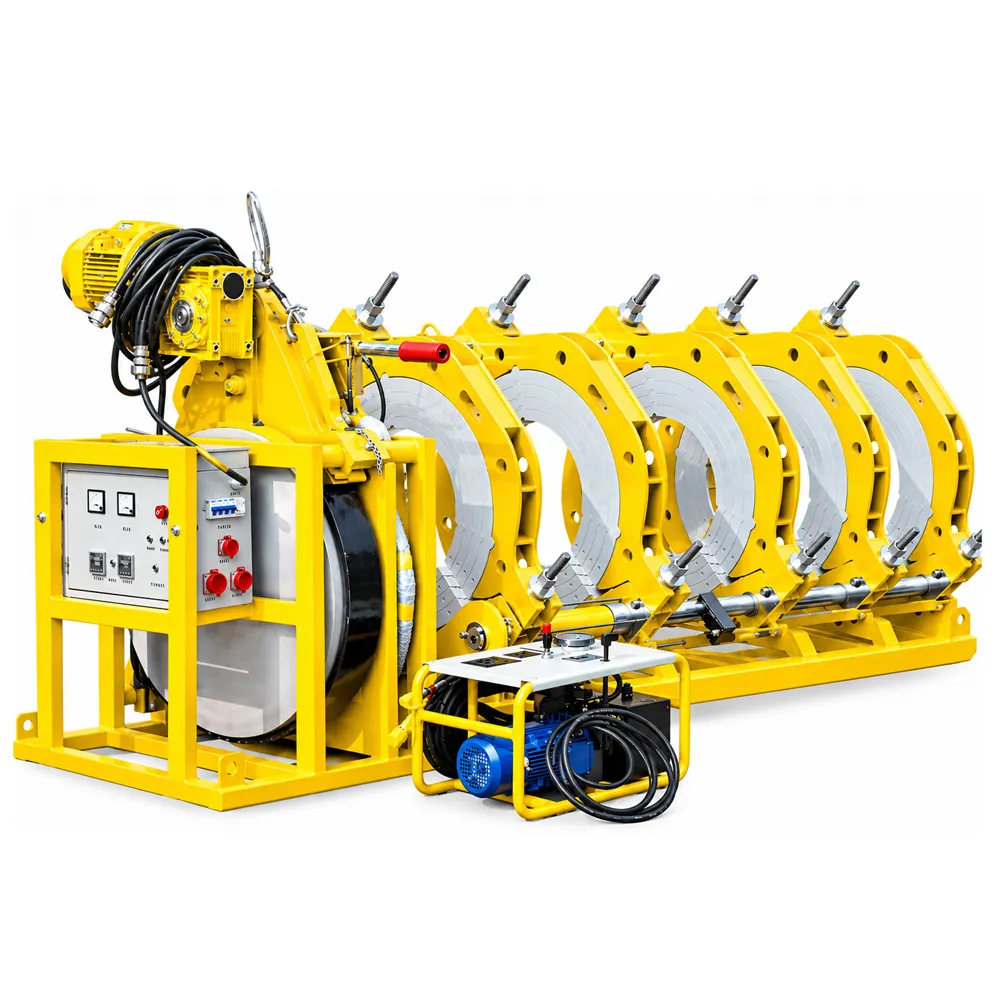

HDPE Butt Fusion Welding Machine Hydraulic (Semi-Automatic) 315 to 630mm (Model No. SMH630 )

With complete high and superior quality Components. Long Service Life ensuring Low Maintenance and Easy Operating System. Machines come with four high-grade aluminum die-cast main clamps supported by two hydraulic SS grade cylinders and hose pipes with SS quick couplings. Built-in digital timers for soaking & integrated with Buzzer with a loud audible & visual signal. The Standard components consist of – Main Machine Body, Heating Plate, Trimming Unit, Electro-Hydraulic Unit, Trimmer / Heating Plate Stand, Reduce Clamp Inserts and Operation and service manual for 315 to 630mm HDPE hydraulic Butt Fusion Welding machine.

Description

Technical Specification :

  1. Fusion Range(mm) -315, 355, 400, 450, 500, 630mm
  2. Temperature Heating Range – 270 °C
  3. Temperature Deviation in Surface – ≤±5 °C
  4. Working Voltage – 415V/50HZ – 3 Phase
  5. Pressure Adjustable Ranges – 0-15Mpa
  6. Heating Plate Power – 9.5kw
  7. Planning Tool Power – 1.5kw
  8. Hydraulic Unit Power –1.5kw
  9. Total Power – 12.5kw
  10. Gross Weight – 650KG
  11. Volume – 3.2 M³
  12. Packing – 3 Wooden Box
