Hydraulic HDPE Butt Fusion Machines

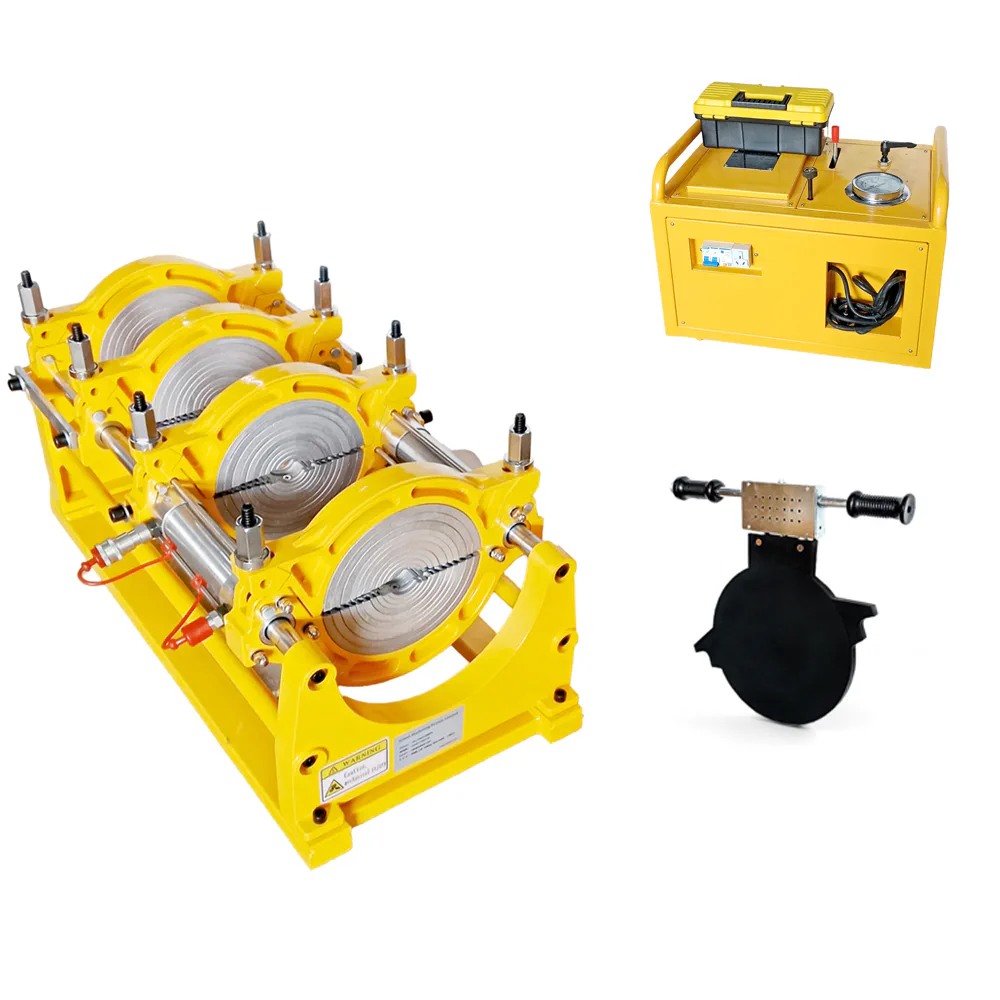

040 to 200mm HDPE Hydraulic Pipe Jointing Machine | Pipe Fusion Welder
The Solwet 40 to 200mm Hydraulic HDPE Pipe Jointing Machine provides controlled butt fusion welding for HDPE, PE and MDPE pipes. With a 1.8 kW heating plate, 1.20 kW planing tool, and a 0 to 6.3 MPa pressure range, it suits professional water, irrigation, and industrial pipeline work.
₹109,611.00
excl. GST
₹129,341.00
incl. GST (18%)
Get Your Best Price
Get best price & project quote
Call / WhatsApp
+91 9717593776
EXTRA 10% DISCOUNT
Use Code
SOLWETM10
at checkout
✓
Stock Ready Available
READY TO DISPATCH
Dispatch in 1–2 Days
•
Fastest Delivery
•
Express Shipping
•
Call for Free Delivery
The Solwet 40 to 200mm Hydraulic HDPE Pipe Jointing Machine provides controlled butt fusion welding for HDPE, PE and MDPE pipes. With a 1.8 kW heating plate, 1.20 kW planning tool, and 0 to 6.3 MPa pressure range, it suits professional water, irrigation, and industrial pipeline work.
Applications
Municipal water lines, irrigation networks, plumbing contractors, and industrial HDPE pipeline fabrication.
Key Technical Specifications
- Fusion Range: 40 to 200 mm
- Pipe Material: HDPE / PE / MDPE
- Heating Plate Power: 1.8 kW
- Planning Tool Power: 1.20 kW
- Hydraulic Unit Power: 0.75 kW
- Total Power: 3.75 kW
- Heating Temperature: Up to 300°C
- Pressure Range: 0 to 6.3 MPa
- Voltage: 220V
- Frequency: 50 Hz
- Phase: Single Phase
- Packing: Wooden Box
Frequently Asked Questions
- What is the welding range?
- The machine covers HDPE, PE, and MDPE pipe sizes from 40 to 200 mm.
- How powerful is the heating plate?
- The heating plate is rated at 1.8 kW.
- What voltage does it use?
- It operates at 220V, 50 Hz, single-phase.
- Where can it be used?
- It is suitable for water, irrigation, and industrial pipeline work.
Technical Specifications :-
| Weight | 140 kg |
|---|---|
| Dimensions | 91 × 70 × 66 cm |
| Welding Pipe Range Clamps (mm) | 40, 50, 63, 75, 90, 110, 140, 160, 180, 200mm |
| Product Type | Semi-Automatic Hydraulic HDPE Butt Fusion Machine |
| Model Number | SMH200 |
| Pipe Material | HDPE / PE / MDPE |
| Fusion Range | 40 to 200 mm |
| Welding Method | Butt Fusion |
| Operation | Hydraulic |
| Control | Hydraulic |
| Voltage | 220V |
| Frequency | 50 Hz |
| Phase | Single Phase |
| Heating Temperature | Up to 300°C |
| Heating Plate Power | 1.8 kW |
| Trimmer/Planning Tool Power | 1.20 kW |
| Hydraulic Unit Power | 0.75 kW |
| Total Power | 3.75 kW |
| Pressure Adjustment Range | 0 to 6.3 MPa |
| Generator Required | 5 kVA |
| Total Weight | 130 |
| Packing Type | 3 Wooden Boxs for machine frame, trimmer, heating plate – 91*58*49 & Control box – 67*50*50 |
| Application | Municipal water lines, irrigation networks, plumbing contractors and industrial HDPE pipeline fabrication. |
| Condition | New |
| Country of Origin | INDIA |
| Warranty | One Year / 5 Years Spare parts Support |
