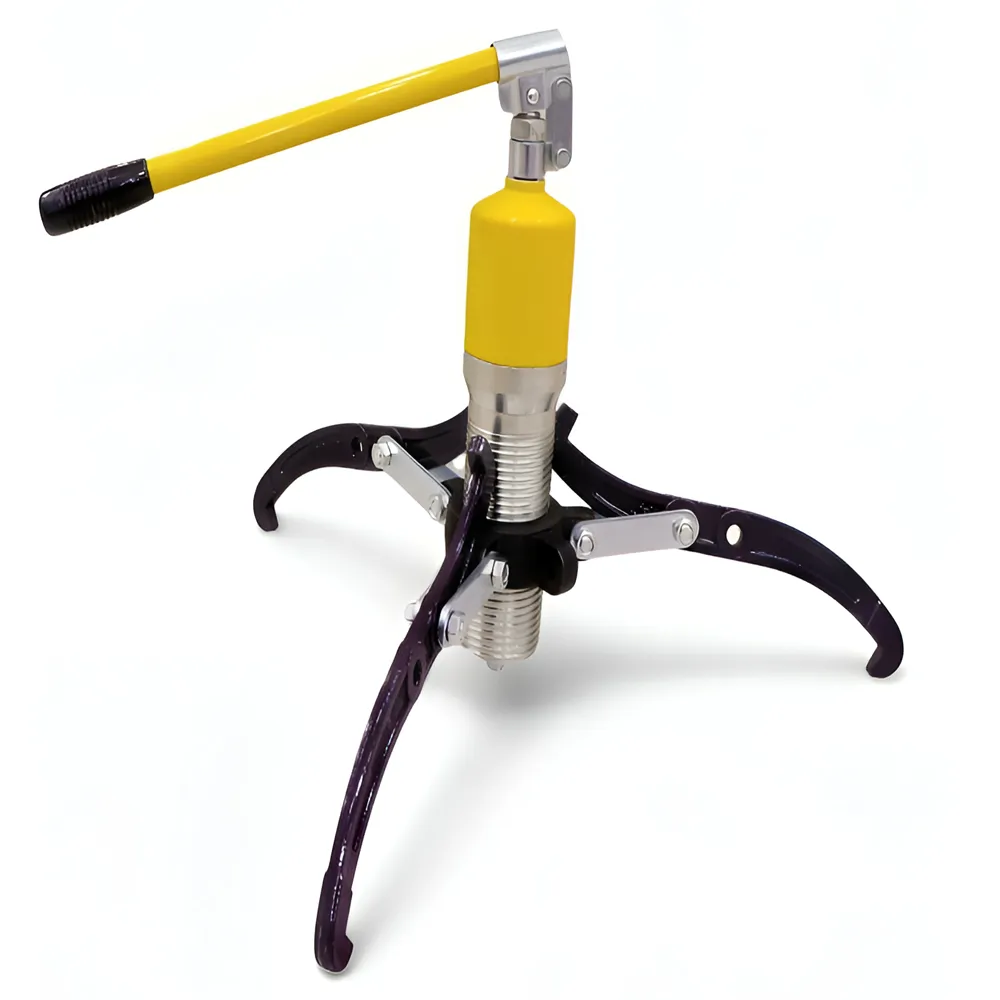

Hydraulic Gear Puller 20 Ton
Features:

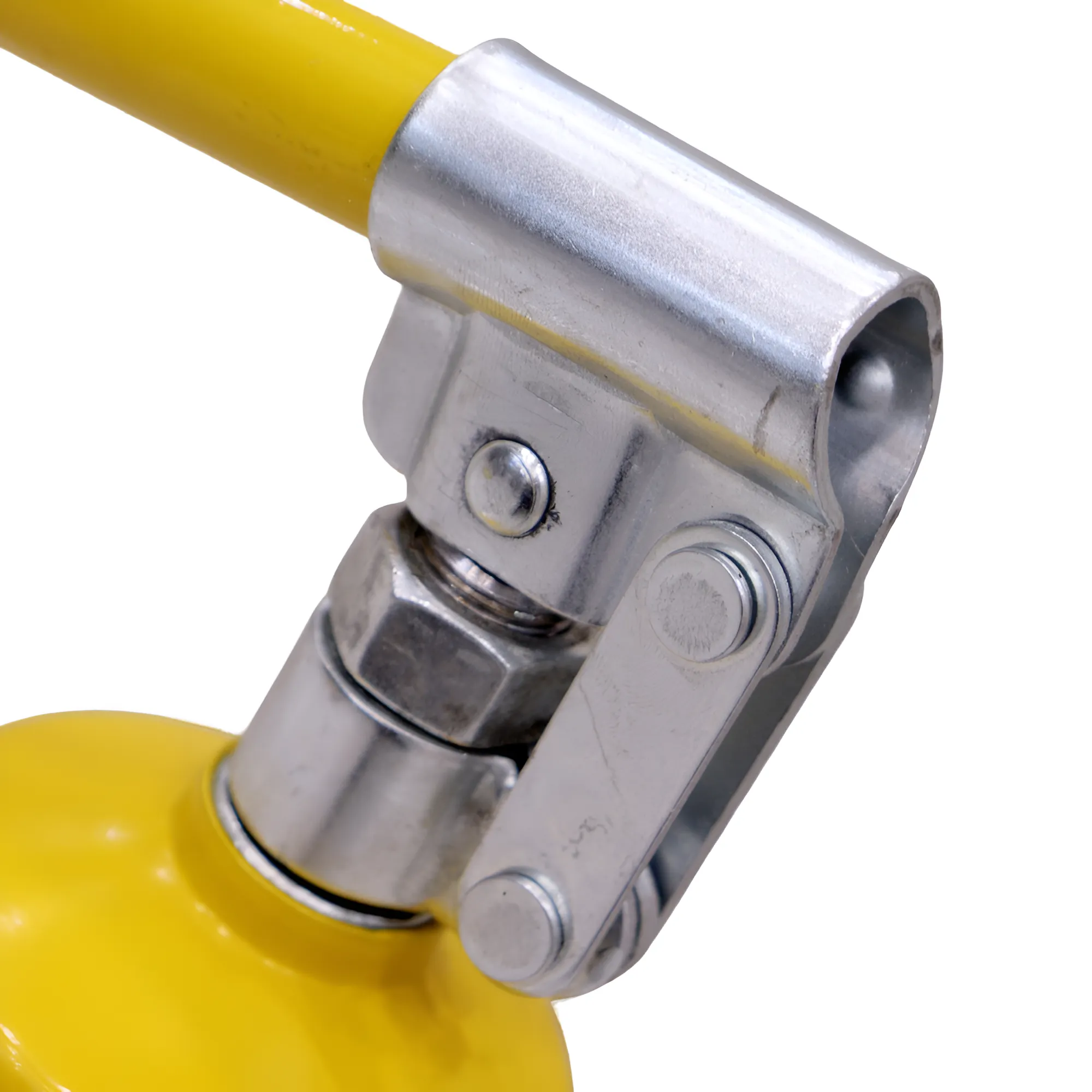

The Hydraulic gear Puller 2/3 claws are shared, suitable for use in different places. The detachable handle and 360° press direction design make it easy to use in a limited space. The elastic thimble design can accurately locate the center. The claw hook and claw hook frame are forged with high-strength alloy steel, which is not easy to deform. The hydraulic cylinder is made of solid steel and processed in one design, with a high safety factor. Quick positioning and adjusting the nut design save time and effort. 20 tons are packed in plastic carrying cases, storing tools and accessories.
₹14,407.00 excl. GST₹17,000.00 incl. GST (18% GST)
Hydraulic Gear Puller 20 Ton
1. Forged jaw structure
2. Working ability: 20 tons
3. Maximum opening distance (Max. Spread ): 100 – 350mm
4. Maximum drawing distance (Max. Reach): 205mm
5. Maximum working pressure: 700 bar
6. Ram stroke: 70 mm
7. Widely used to remove gears, bushings, pulleys, etc.
Self-Contained Hydraulic Pullers
These tools are designed for removing a wide variety of
Gears. Bearings, bushings, pulleys, and other press-fitted parts.
Features

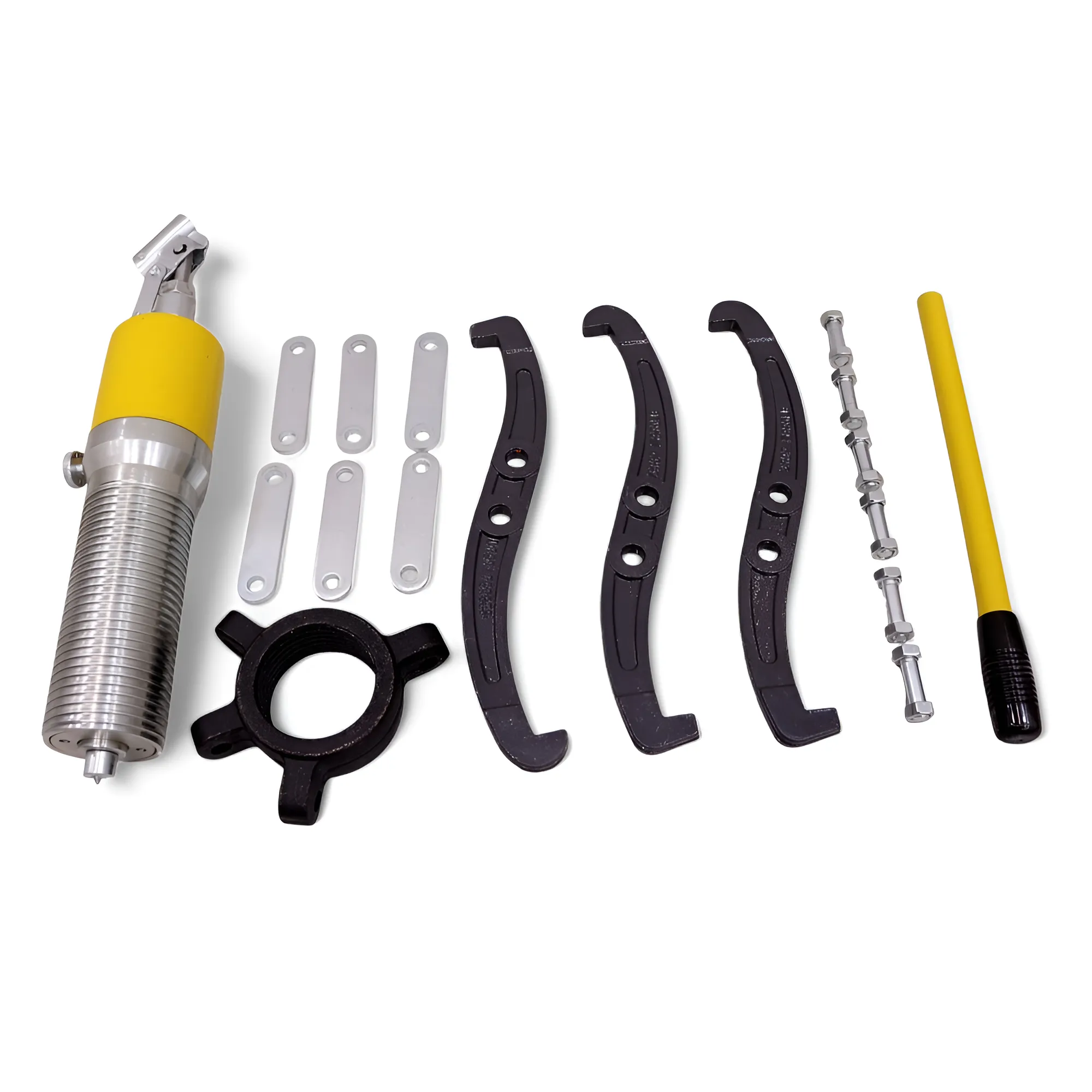

● Use with 2 or 3 jaws.
● High-quality, forged steel jaws and crosshead provide superior
Reliability and service.
● Precise hydraulic control allows fast, efficient, and safe pulling.
● High-force hydraulic system for effortless pulling of large components.
● More efficient pulling, as one man can do the job where manual pullers offer
Require two operators.

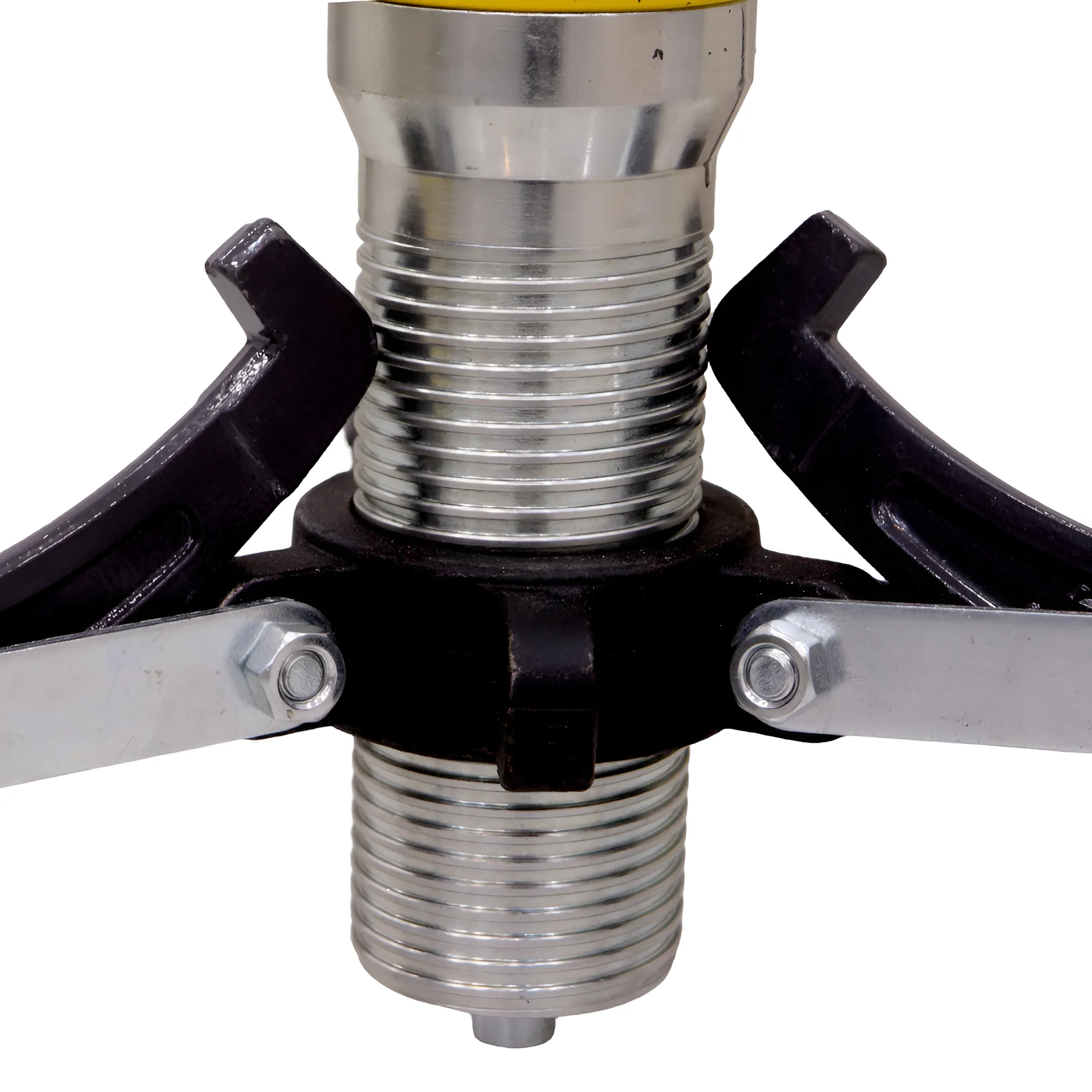

● Spring-loaded live centering cone.

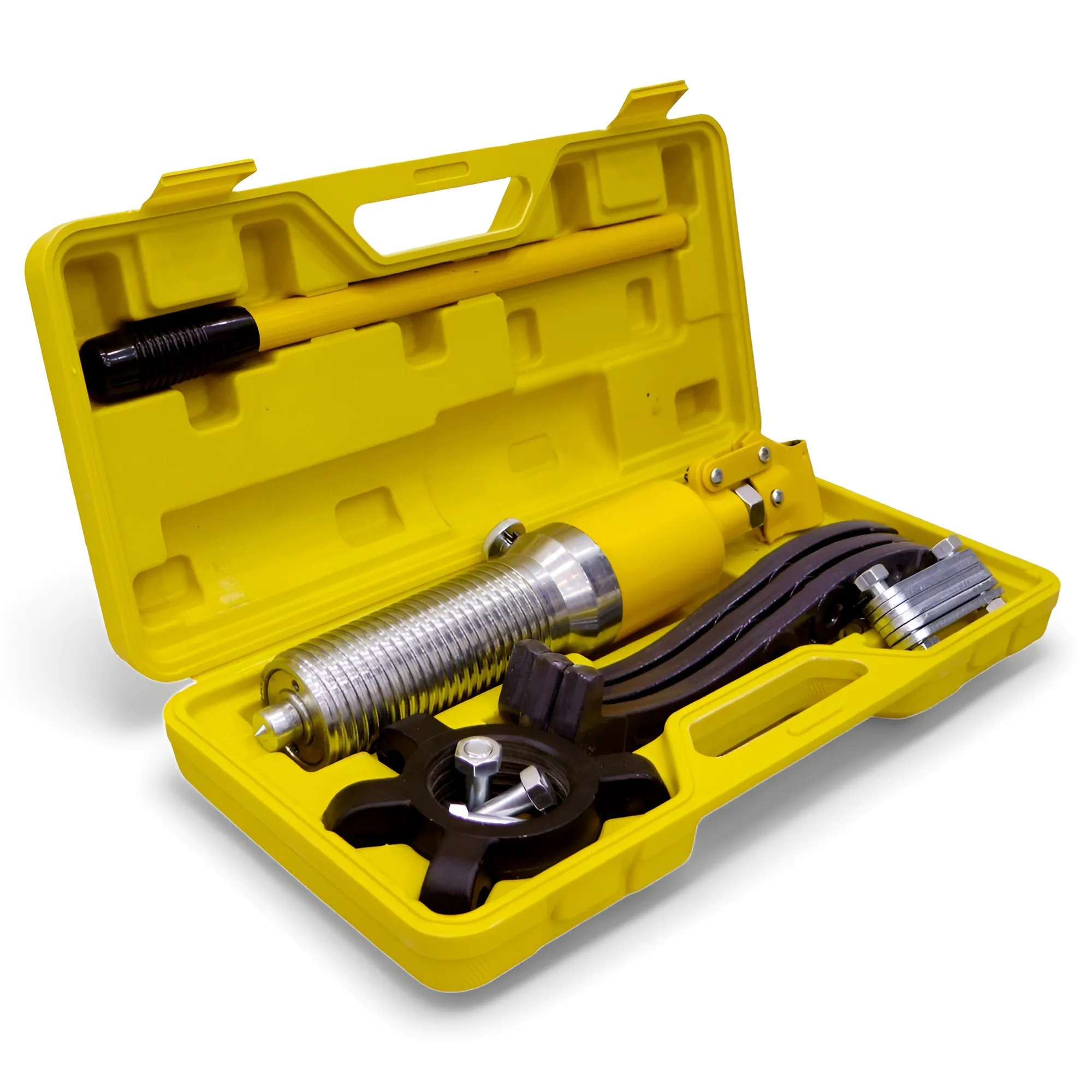

5,10, and 20 ton sets are all in a plastic carry case. 30 and 50 ton
Sets are all contained in a robust wooden box.
| Model | Output
(Ton) |
Spread
(mm) |
Max
Reach (mm)
|
Ram
Stroke (mm)
|
Dimensions (mm) | Weight
(kg)
|
Packing size
(cm) |
|||||
| E | F | G | A | B | C | |||||||
| HHL-20 | 20 | 100-350 | 205 | 70 | 78 | 33 | 105 | 21 | 33.5 | 33 | 18.6 | 44*35*13 |
We sell online and offline Hydraulic Gear Puller 20 Ton with low market prices and the best quality & remarkable performance, and durability for years in adverse conditions.
We provide after-sales service within the reach of Delhi, Jaipur, Bhopal, and Lucknow. Our prices are very competitive and the best discount on the SOLWET brand.
We also offer a bulk purchase discount. If you are planning to bulk purchase standard packing in a carton corrugated box, which is used in the industrial and construction sectors, you can contact us.
Other products link
Portable electric rope hoist operation video link
| Weight | 18 kg |
|---|---|
| Dimensions | 44 × 35 × 13 cm |
| Brand | Solwet |
| Condition | New |
| Country of origin | China |
| Name of Manufacturer/ Packer / Importer | Solwet Marketing Private Limited |
| Warranty Duration | Six Months |
| Usage of product | remove bearings, pulleys, and gears |
