Hydraulic Gear Puller
![Solwet]()
Hydraulic Gear Puller 30 Ton for used to remove gears, bushings, pulleys
₹24,936.00
excl. GST
₹29,425.00
incl. GST (18%)
Get Your Best Price
Get best price & project quote
Call / WhatsApp
+91 9717593776
EXTRA 10% DISCOUNT
Use Code
SOLWETM10
at checkout
✓
Stock Ready Available
READY TO DISPATCH
Dispatch in 1–2 Days
•
Fastest Delivery
•
Express Shipping
•
Call for Free Delivery
Product Description:-

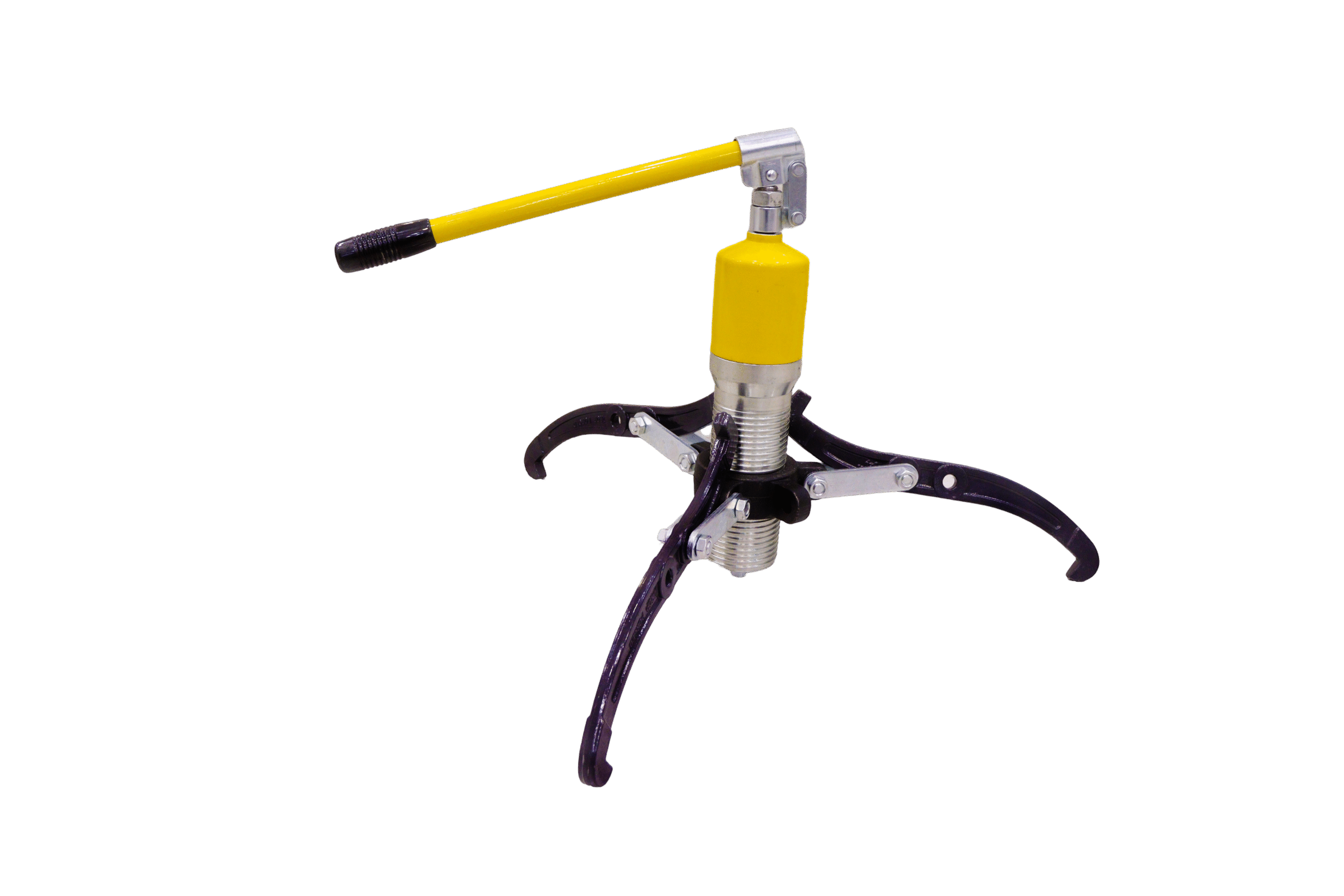

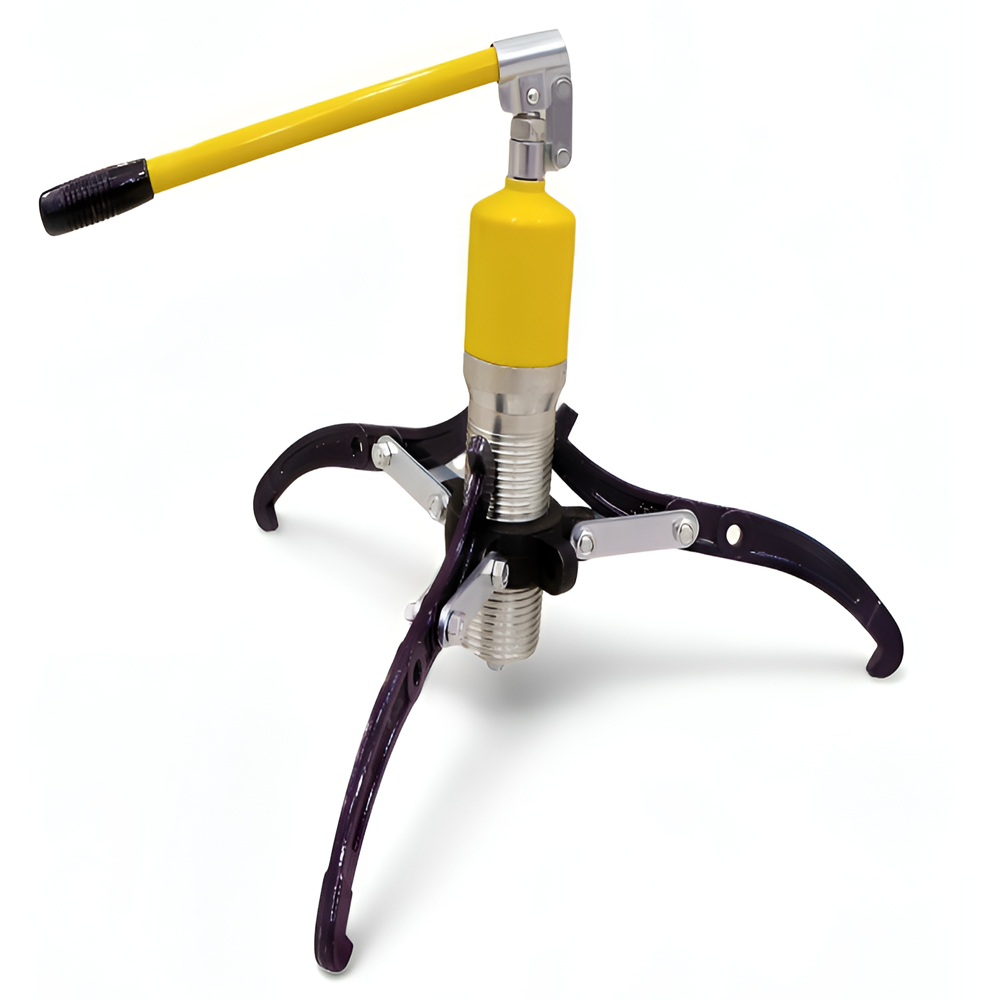

Hydraulic Gear Puller 30 Ton
1. Forged jaw structure
2. Working ability: 30 tons
3. Maximum opening distance (Max. Spread ): 150 – 400 mm
4. Maximum drawing distance (Max Reach): 220 mm
5. Maximum working pressure: 700 bar
6. Ram stroke: 70 mm
7. Widely used to remove gears, bushings, pulleys, etc.
Self-Contained Hydraulic Pullers
These tools are designed for removing a wide variety of
Gears. Bearings, bushings, pulleys, and other press-fitted parts.
Key Features:-

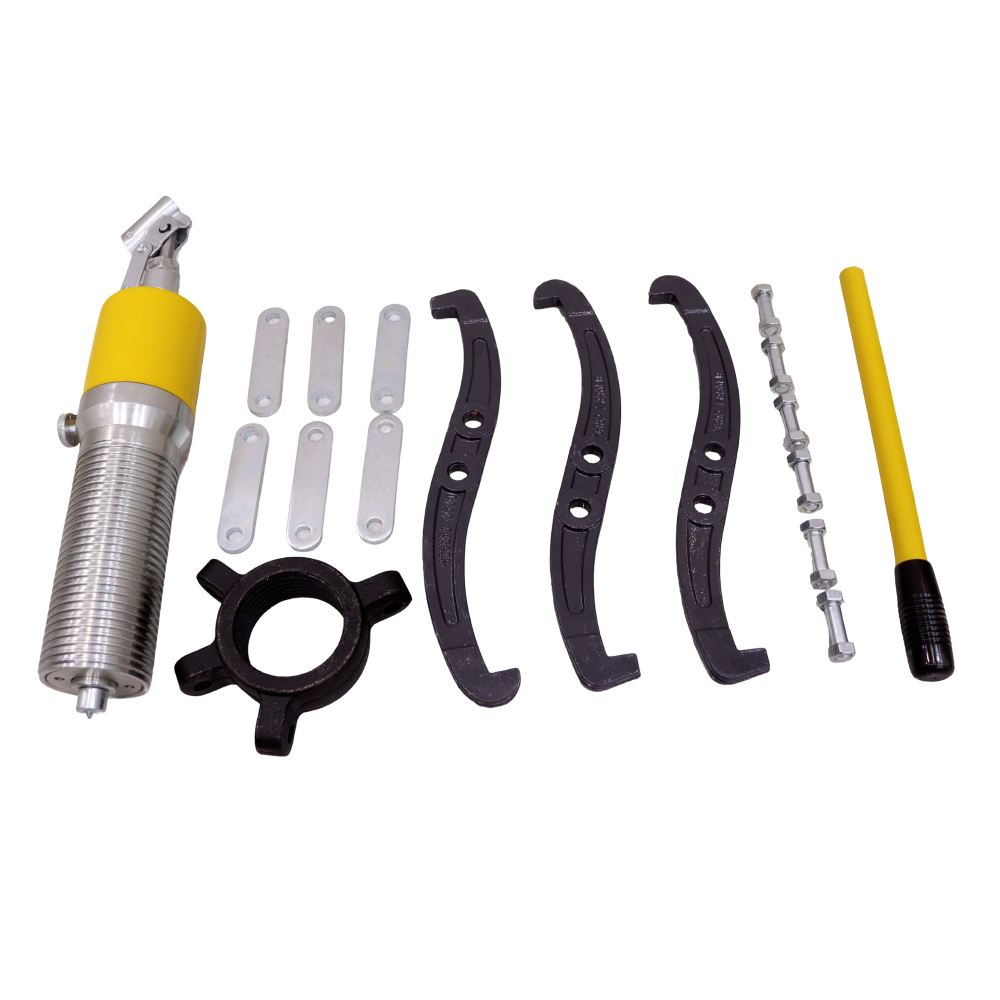

● Use with 2 or 3 jaws.
● High-quality, forged steel jaws and crosshead provide superior
Reliability and service.
● Precise hydraulic control allows fast, efficient, and safe pulling.
● High-force hydraulic system for effortless pulling of large components.
● More efficient pulling, as one man can do the job where manual pullers offer
Require two operators.
● Spring-loaded live centering cone.

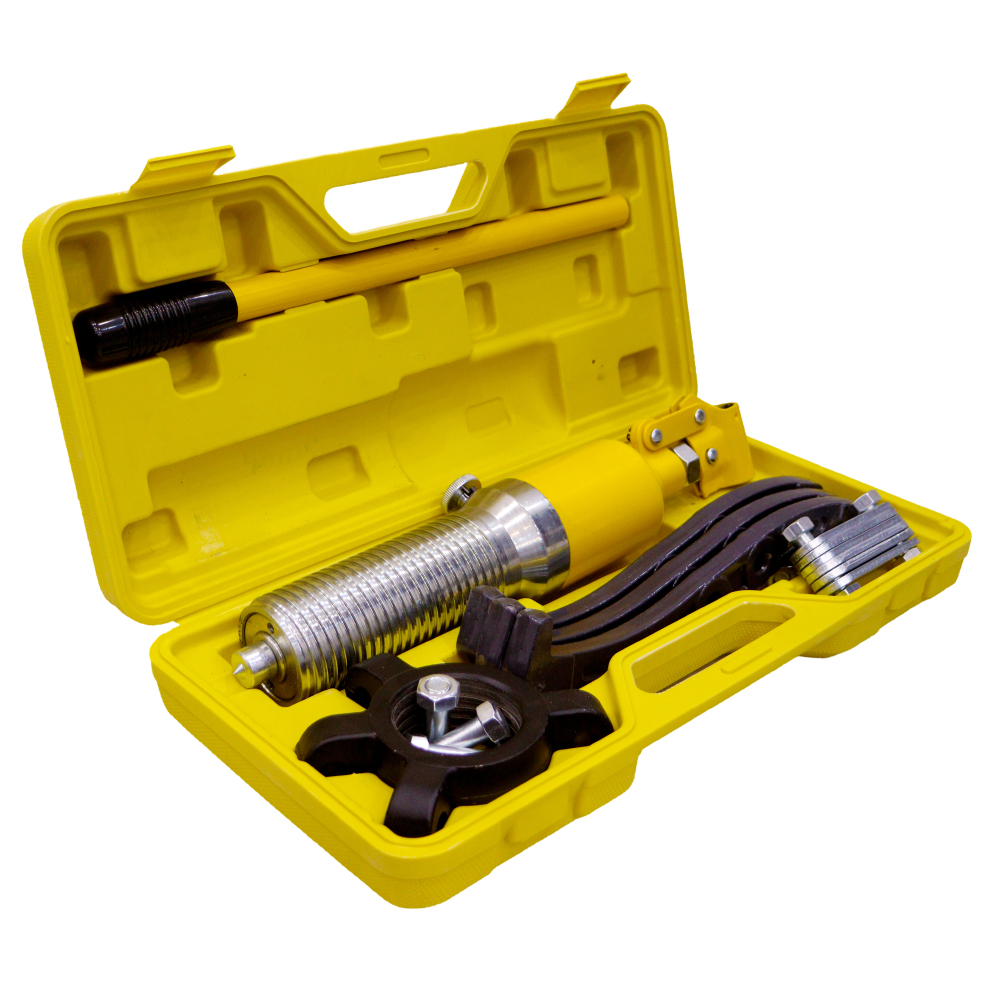

The 5, 10, and 20 ton sets are all included in a plastic carry case. 30 and 50 ton
Sets are all contained in a robust wooden box.
| Model | Output (Ton) | Spread (mm) | Max Reach (mm)
| Ram Stroke (mm)
| Dimensions (mm) | Weight (kg)
| Packing size (cm) | |||||
| E | F | G | A | B | C | |||||||
| HHL-30 | 20 | 150-400 | 220 | 70 | 90 | 38 | 103 | 26 | 36 | 35 | 24.2 | 48*20*18 |
Technical Specifications:-
| Weight | 24 kg |
|---|---|
| Dimensions | 48 × 20 × 18 cm |
| Brand | Solwet |
| Country of origin | China |
| Name of Manufacturer/ Packer / Importer | Solwet Marketing Private Limited |
| Warranty Duration | Six Months |
Based on 0 reviews
Be the first to review “Hydraulic Gear Puller 30 Ton for used to remove gears, bushings, pulleys”
Hydraulic Gear Puller
Hydraulic Gear Puller 20 Ton
Features:
The Hydraulic gear Puller 2/3 claws are shared, suitable for use in different places. The detachable handle and 360° press direction design make it easy to use in a limited space. The elastic thimble design can accurately locate the center. The claw hook and claw hook frame are forged with high-strength alloy steel, which is not easy to deform. The hydraulic cylinder is made of solid steel and processed in one design, with a high safety factor. Quick positioning and adjusting the nut design save time and effort. 20 tons are packed in plastic carrying cases, storing tools and accessories.
SKU: SOL_CQLA7QO29079
Hydraulic Gear Puller
Hydraulic Gear Puller 10 Ton
Features:
The Hydraulic gear Puller 2/3 claws are shared, suitable for use in different places. The detachable handle and 360° press direction design make it easy to use in limited space. The elastic thimble design can accurately locate the center. The claw hook and claw hook frame are forged with high-strength alloy steel, which is not easy to deform. The hydraulic cylinder is made of solid steel and processed in one design, with a high safety factor. Quick positioning and adjusting nut design save time and effort. 10 tons are packed in plastic carrying cases, storing tools and accessories.
SKU: SOL_3421RQC26111
