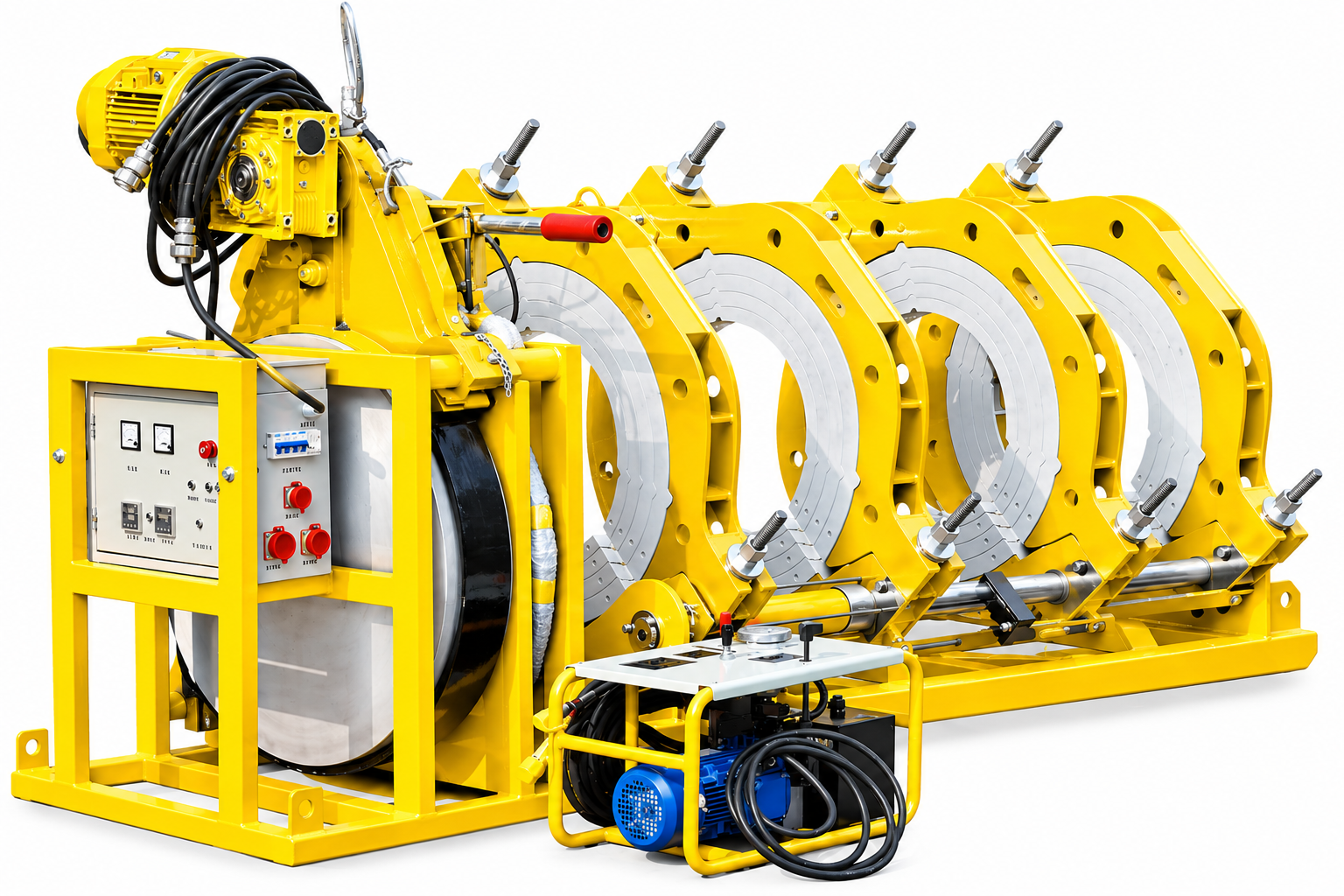

630 to 1000mm HDPE Hydraulic Pipe Jointing Machine | Butt Fusion Welder
Out of stock
The Solwet 630 to 1000mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 17.50 kW heating plate, 3.0 kW planning tool, 2.2 kW hydraulic unit and 0 to 15 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
₹1,165,254.00
excl. GST
₹1,375,000.00
incl. GST (18%)
Out of stock
The Solwet 630 to 1000mm Hydraulic HDPE Butt Fusion Machine is a large-diameter pipe welding system for professional HDPE butt fusion. It provides a 17.5 kW heating plate, 3.0 kW planning tool, 2.2 kW hydraulic unit and 0 to 15 Mpa pressure adjustment for major water, industrial and infrastructure pipeline projects.
Applications
Large-scale water transmission, industrial pipelines, infrastructure, mining and major HDPE pipeline projects.
Key Technical Specifications
- Fusion Range: 630 to 1000 mm
- Pipe Material: HDPE / PE / MDPE
- Heating Plate Power: 17.5 kW
- Planning Tool Power: 1.5 kW
- Hydraulic Unit Power: 3.0 kW
- Total Power: 22.7 kW
- Heating Temperature: 270?C
- Pressure Range: 0 to 15 Mpa
- Voltage: 415V
- Frequency: 50 Hz
- Phase: 3 Phase
- Weight: 650 kg
- Packing: 3 Wooden Boxes
Frequently Asked Questions
- What is the fusion range?
- The machine covers 630 to 1000 mm pipe sizes.
- What is the heating plate power?
- The heating plate is rated at 17.5 kW.
- What is the total power?
- The specified total power is 22.7 kW.
- What type of work is it suited for?
- It is designed for large-diameter HDPE butt fusion in water, industrial and infrastructure pipelines.
| Weight | 2200 kg |
|---|---|
| Dimensions | 258 × 225 × 188 cm |
| Welding Pipe Range Clamps (mm) | 630, 710, 800, 900, 1000mm |
| Product Type | Semi-Automatic Hydraulic HDPE Butt Fusion Machine |
| Model Number | SMH1000 |
| Pipe Material | HDPE / PE / MDPE |
| Fusion Range | 630 to 1000 mm |
| Welding Method | Butt Fusion |
| Operation | Hydraulic |
| Control | Hydraulic |
| Voltage | 415V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| Heating Temperature | Up to 300?C |
| Heating Plate Power | 17.5 kW |
| Trimmer/Planning Tool Power | 3.0 kW |
| Hydraulic Unit Power | 2.2 kW |
| Total Power | 22.70 kW |
| Pressure Adjustment Range | 0 to 15 MPa |
| Generator Required | 25 kVA |
| Total Weight | 2200 |
| Packing Type | 3 Wooden Boxs for machine frame -258*148*160, trimmer & heating plate -153*95*188 & Control box – 79*58*52 |
| Application | Large-scale water transmission, industrial pipelines, infrastructure, mining and major HDPE pipeline projects. |
| Condition | New |
| Country of Origin | China |
| Warranty | One Year / 5 Years Spare parts Support |
