1310 1550nm 26/24db mini machine otdr fiber optics

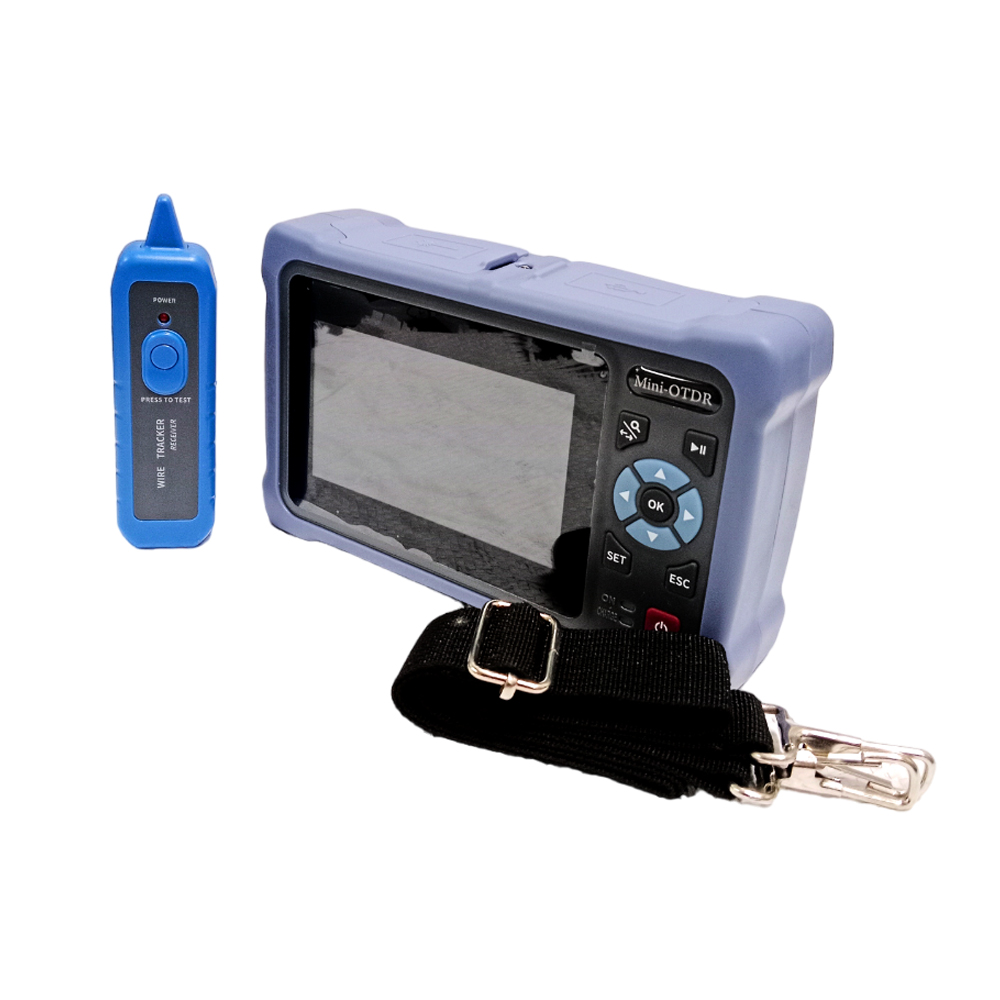

1310 1550nm 26/24db Mini OTDR Machine fiber optic (SOL4000D)

Technical Specifications:-

Model No – SOL4000D
Wavelength-1310 nm /1550 nm
Dynamic Range – 26 dB/24 dB
Event Blind Zone -2.5 m
ATT Blind Zone -8 m
Test Range -500 m to 100 km
Sample Resolution-  0.05nm~8m
Loss Resolution – 0.001dB
Loss Threshold -0.20 dB
Range Resolution -0.001m
Refresh Rate – 3 Hz

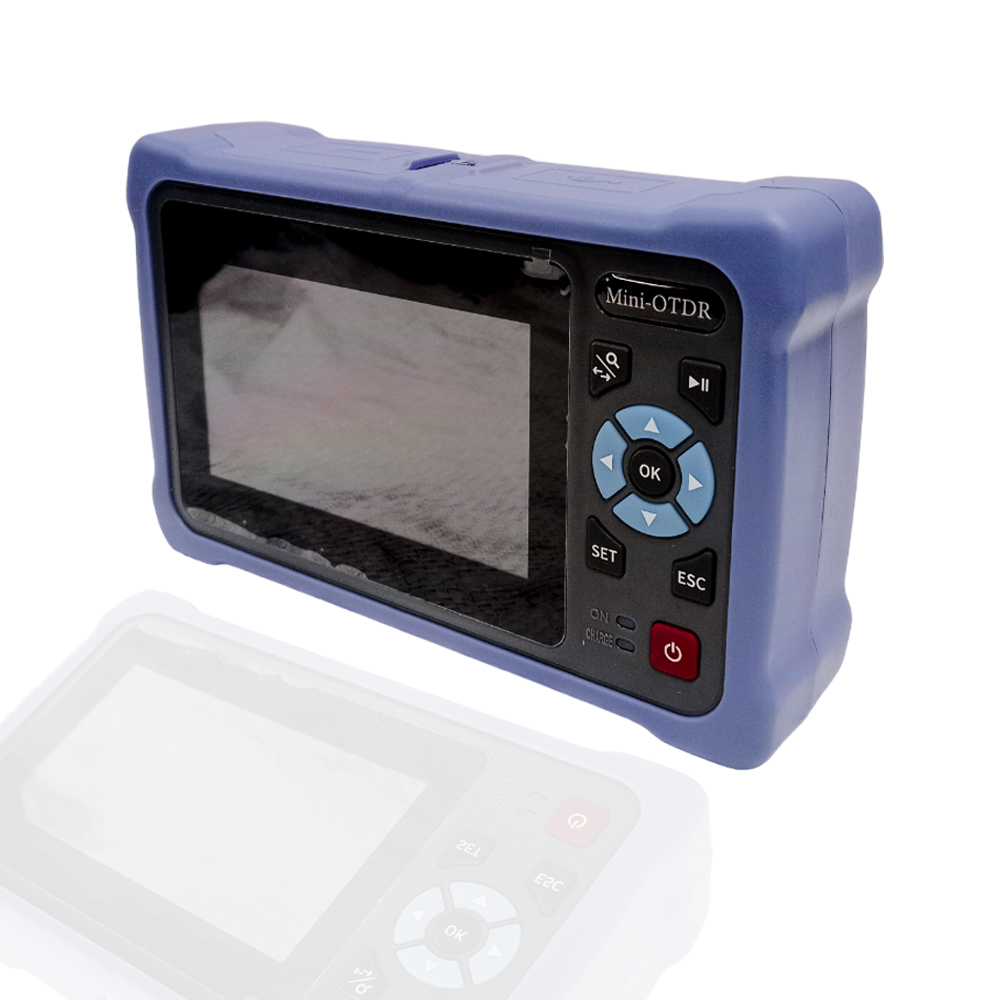

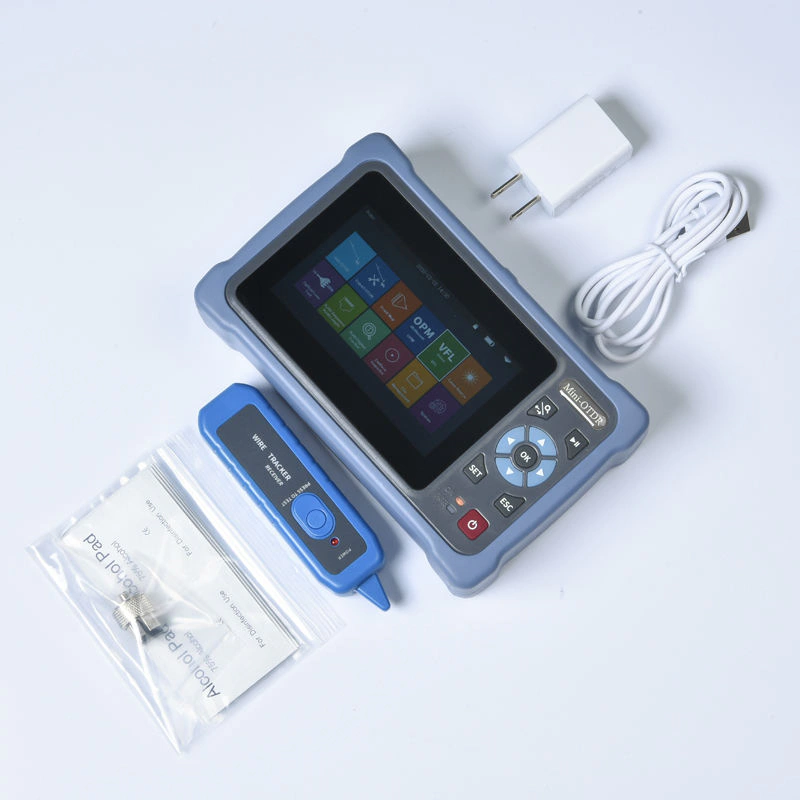

400D mini OTDR adopts 4.3-inch capacitive touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and “computer level” file management to meet various test requirements on different occasions. Mini OTDR machine has a maximumdynamic range of 26dB, 8G memory, and can store more than 200,000 curves; OTDR fiber optic equipped with 4000mAh high-density polymer lithium battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank.

series are used to measure the length, loss, connection quality, and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering, maintenance and emergency repair tests, and production measurement of optical fiber and cable.

Functions:

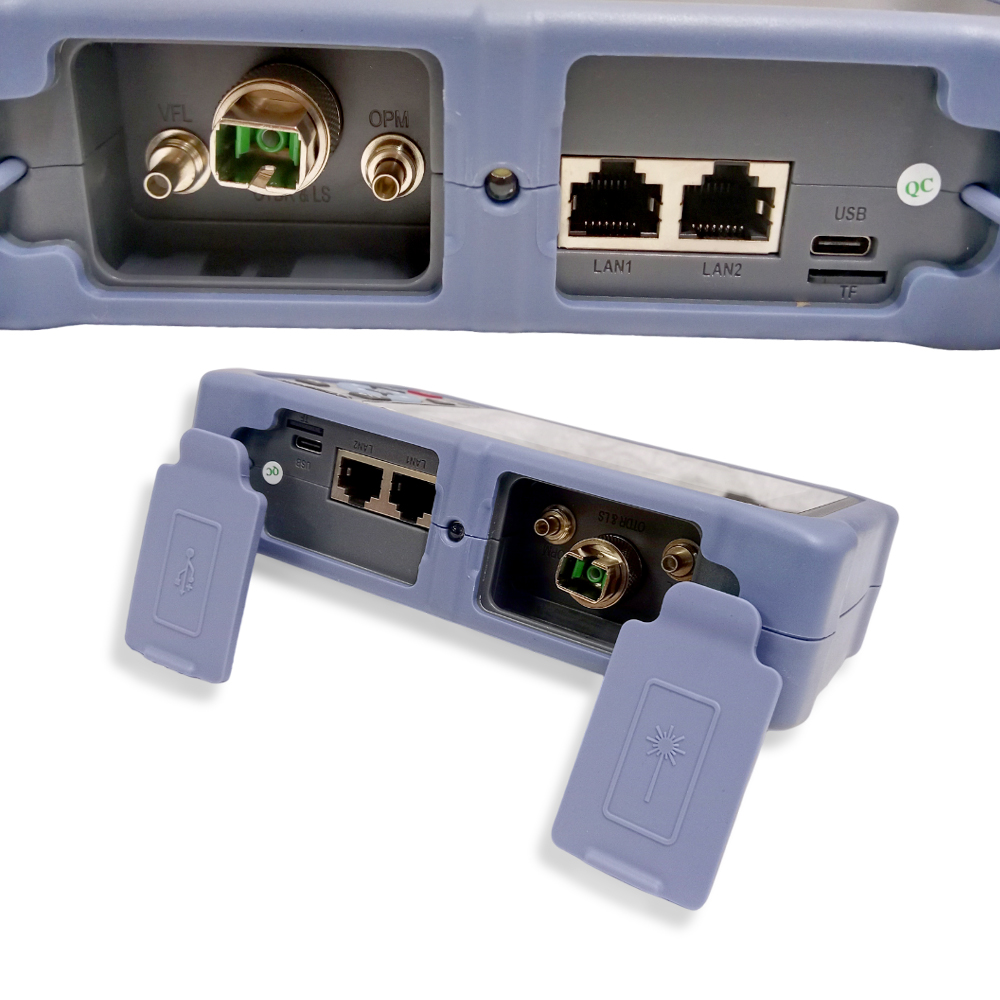

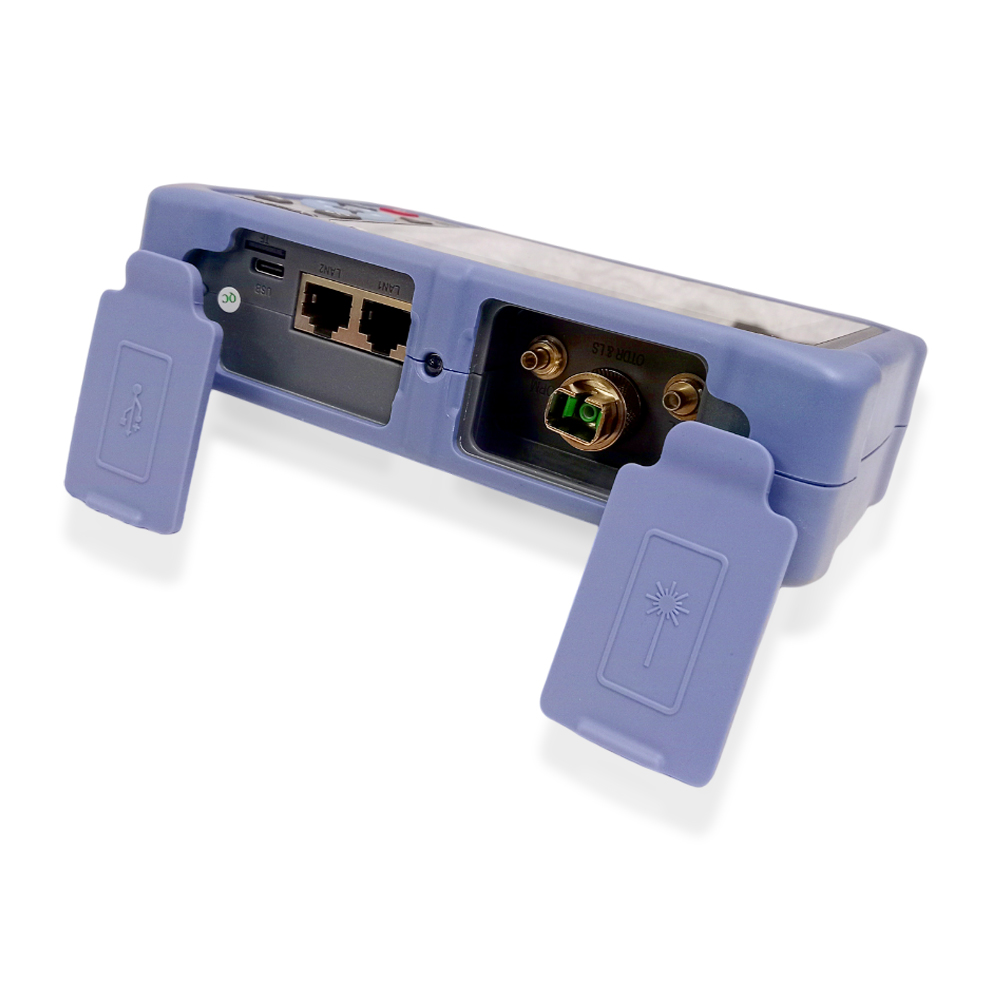

Auto OTDR, expert OTDR, event map, OPM, LS, VFL, RJ45 cable tracker(Including line finder), RJ45 cable sequence, RJ45 cable length, end face detection(Optional), flashlight, optical loss test

Note:

1, F1 can test fiber with 1490/1550nm signal (power ≤-5dBm)

F2 can test fiber with 1310/1490nm signal (power ≤-5dBm) T can test fiber with 1310/1490/1550nm signal (power ≤+2dBm)

2, Dynamic Range test temperature is 25℃+2℃, maximum pulse width, the average time is more than

3 minutes.3, The test conditions of the event blind zone are minimum range, minimum pulse width, reflection loss of optical fiber end (> 45dB), and typical value.

Expert ODTR: Professional measurement, curve /list/ map are displayed simultaneously

Auto ODTR: no complex settings, one key test

VFL and LS can run in the background, and multi-task can be operated simultaneously
