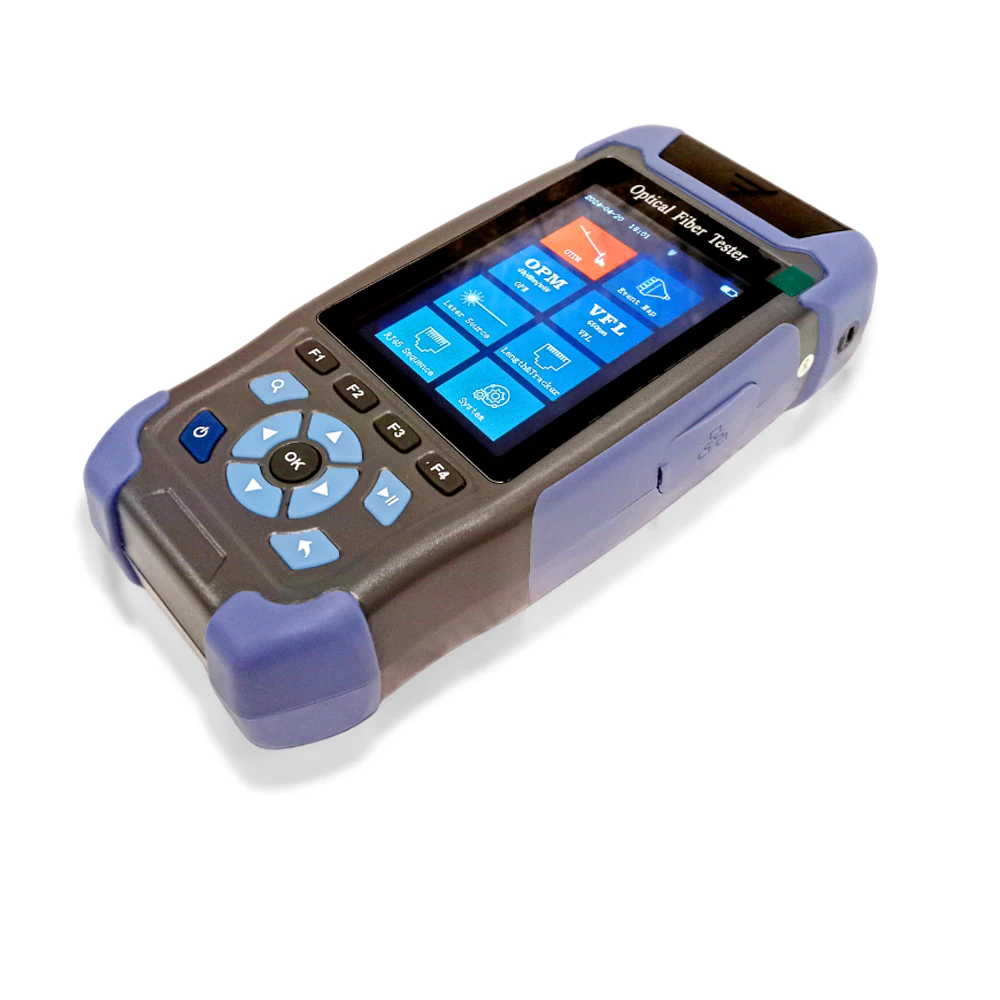

Mini Fiber OTDR Tester

Multi-Function tester Built in OPM/OLS / RJ45 Test/VFL Dynamic Range 24dB/22dB With FC/APC-FC/UPC-SX

Mini handheld OTDR Optical Time Domain Reflectometer used for fiber optical cable testing for internet and telecommunication industries. Model: SOL3200D wavelength – 1310nm/1550nm±20nm

Fiber Type: G.652, 24dB/22dB, Event Blind Zone 3m, ATT Blind Zone 8m, Test Range 500m~60km, Pulse Width 3ns~10us, Ranging accuracy ±（1m+ Sampling interval +0.005％×Test distance, Loss accuracy  ±0.05dB/dB, Sampling Points 16k~128k, Sampling resolution 0.05m~8m, Reflection accuracy ±3dB, Data Storage  Internal：≥600； External TF Card, Laser Safety Level  Class Ⅱ, File format SOR Standard file format, Connector FC/UPC（Interchangeable SC、ST), OPM Wave Range – 800nm~1700nm, Interface Type Universal Joint FC/SC/ST, Test Range -50dBm～+26dBm, Uncertainty ±5%, Frequency Identification CW/270/330/1k/2kHz, LS Calibration wavelength 850/980/1300/1310/1490/1550/1625/1650nm, LD Type FP-LD, 1310nm/1550nm±20nm, Output Power ≥-5dBm

Modulation Frequency  270/330/1k/2kHz, Stability CW，±0.5dB/15min （Test after 15 minutes of preheating), Connector FC/UPC（Interchangeable SC、ST), VFL – Wavelength 650nm±20nm, Output Power ≥10mW, Mode CW/1Hz/2Hz, Connector FC/SC/ST, RJ45 Cable Length Measurement Test Range 300m, Other Parameters Display 3.5 inch Color LCD, Data Interface Micro USB, External storage TF Card, Power Supply Polymer Li-Battery：3.7V，4000mAh Adapter：5VDC，2A, Battery Life  Standby＞20h； Measuring time＞12h, Operating Temperature -10℃～+50℃, Storage Temperature -40℃～+70℃, Relative Humidity 0～95％Non Condensing, Size 173mm×82mm×37mm, Weight ≤350g,

Functions:

Blue， OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight

1 Test temperature is 25℃+2℃, maximum pulse width, the average time is more than 3 minutes. Note:

2 Test conditions of the Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical fiber end (> 45dB), and typical value.
