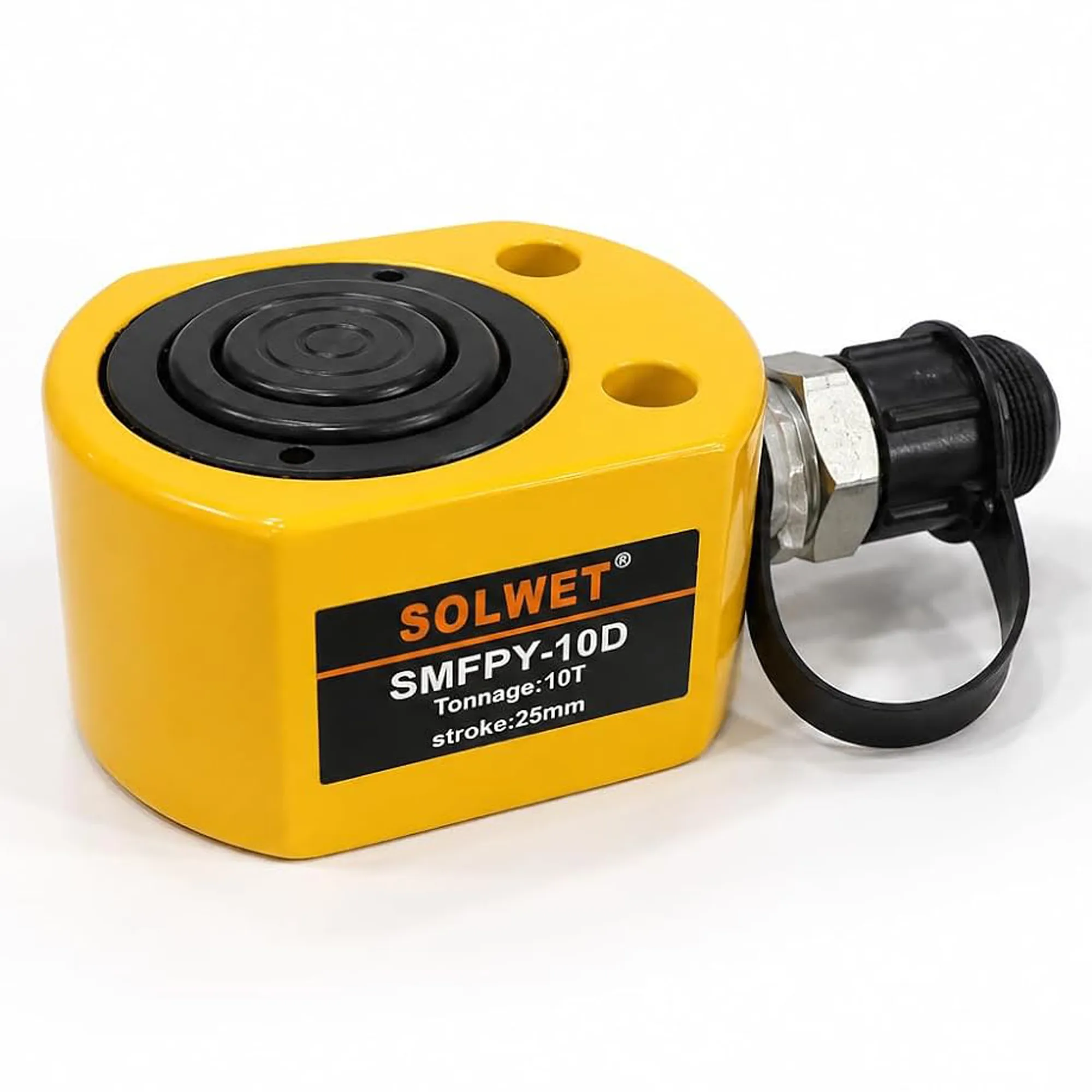

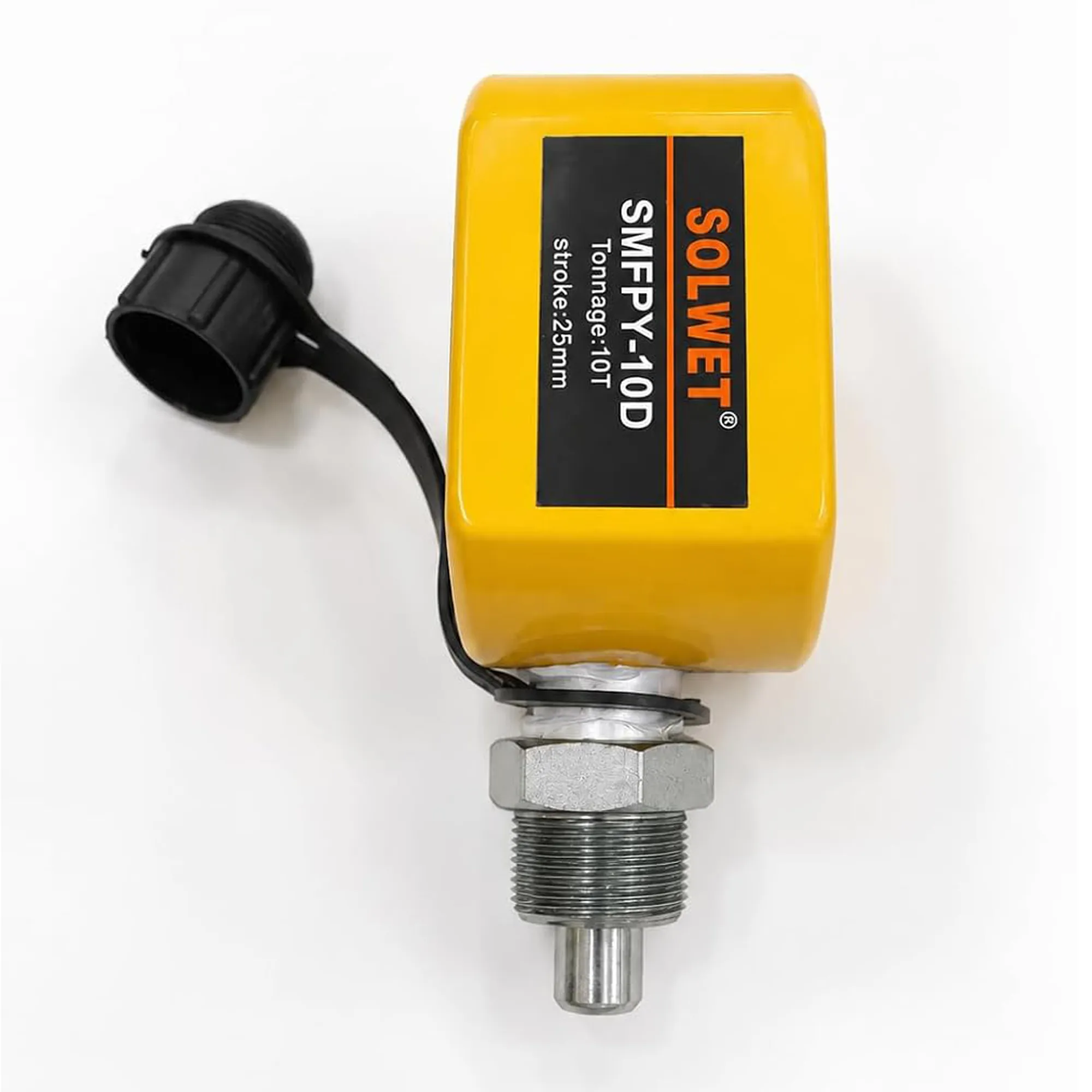

Multi stage low height hydraulic cylinder 10Ton (SMFPY-10D)

Multi-stage low-height hydraulic cylinder

Technical Specifications:-

• Model No – SMFPY-10D
• Outside Diameter – 83 mm
• Capacity – 10 Ton
• Stroke – 25 mm
• Return Type – load return
• Plunger Type – multi -stage telescopic
• Stage 1 Stroke – 10 mm
• Stage 1 capacity  – 10 Ton
• Stage 2 Stroke – 15 mm
• Stage 2 Capacity – 5 Ton
• Collapsed height – 47 mm
• Extended height – 72 mm
• Inside Diameter – 45 mm
• Plunger Dia – 26/38 mm
• Net Weight – 1.96 kg
