Manual Hydraulic Pipe Bending Machines
![Solwet]()
Manual Hydraulic MS GI SS Pipe Bending machine 1/2″ to 4″
- Model No. SMPL-MH4
- Pipe bender
- Max pressure: 20T
- Max stroke: 370mm
- Bending capacity: 21.3-108mm (1/2″-4″)
- Bending shoes: 1/2″, 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/2″ , 3″ , 4″
- Pipe wall thickness: 2.75-6mm
₹64,795.00
excl. GST
₹76,458.00
incl. GST (18%)
Get Your Best Price
Get best price & project quote
Call / WhatsApp
+91 9717593776
EXTRA 10% DISCOUNT
Use Code
SOLWETM10
at checkout
✓
Stock Ready Available
READY TO DISPATCH
Dispatch in 1–2 Days
•
Fastest Delivery
•
Express Shipping
•
Call for Free Delivery

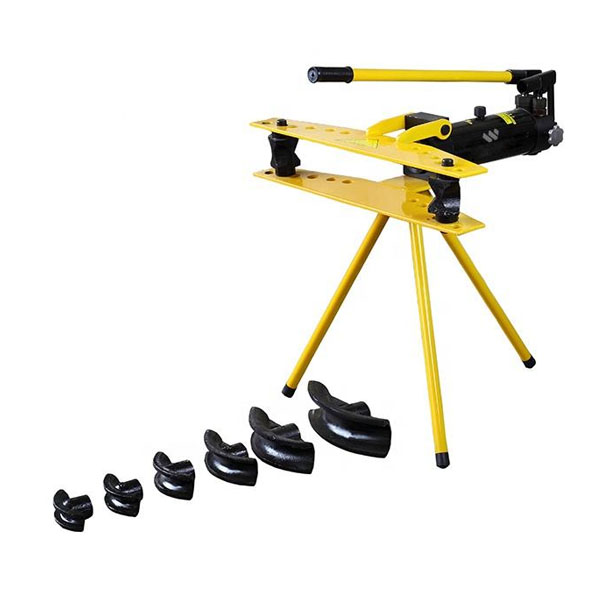

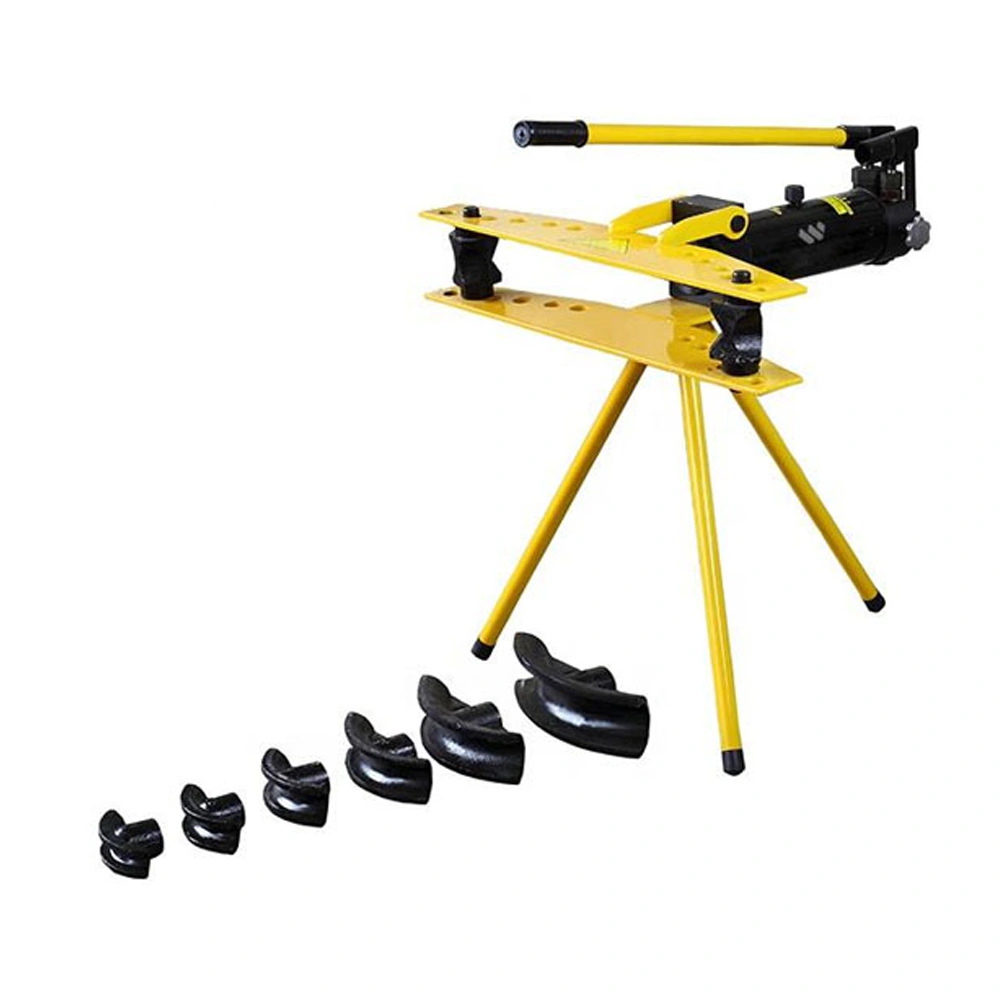

MS GI SS Manual Hydraulic Pipe Bending machine 1/2″ to 4″ model SMPL-MH4
Manual Hydraulic Pipe Bending machine 1/2″ to 4″
The manual hydraulic pipe bender is designed for precision cold bending of thick-walled
Pipes (gas, water, and steam pipes, non-heated black iron pipes, galvanized pipes, schedule 40
& 80) up to 90° following GB/T 3091 DIN 2440, EN 10255, BS 1387 Standards.
These benders are ideal for plumbing, sanitary, and heating installation on construction sites, for apparatus and boiler making, and for industrial applications.
Characteristics
● Capable of bending angles from 0° to 90° on pipes on ranging from 1/2” to 4”.
● Cold bending, no pre-warming of pipes is required.

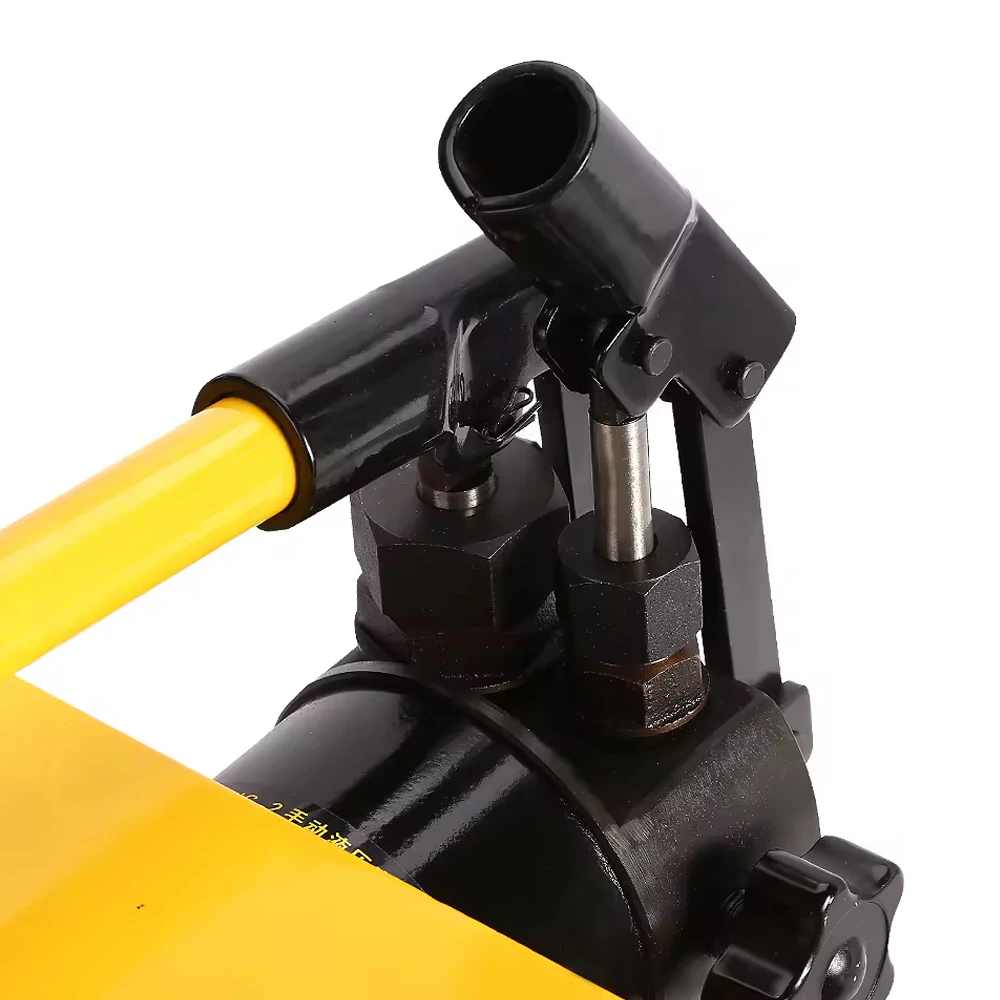

● Works quicker with the two-speed, heavy-duty hydraulic pumping system.
● Comfortable working position with the tripod stand.
● Longer piston stroke per pumping and optimized hand force minimizes operator fatigue.
● Supplied in a wooden case with a set of bending shoes and a service pack.
| Model | Hydraulic Ram Output (TON) | Ram Stroke (MM)
| Bending Shoes | Bending Shoes (inch)
| G.W (kg) | Packing Size (cm) |
| SMPL-MH4 | 20 | 370 | 21.3-108 | 1/2″, 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/2″ , 3″ , 4″ | 156.8 | 118*46*25 |
Bending Shoes
For bending pipes to 90 degrees, following GB/T 3091, DIN 2440, EN 1025, and BS 1387 standards.
Made of modular cast iron, the bending shoes are strong and durable.
| Bending Shoe size (inch)
| A (MM)
| B (MM)
| Minimum bend radius (mm)
| D (mm)
| Pipe Schedule | Wall thickness (mm)
|
| ¼” | 61 | 44 | 38 | 13.5 | 40 | 2 |
| 5/16” | 76 | 56 | 48 | 16.5 | 40 | 2 |
| 3/8” | 106 | 63 | 50 | 18 | 40 | 2.3 |
| ½” | 115 | 67.5 | 50.2 | 22 | 40 80 | 2.8 3.7 |
| ¾” | 131 | 84.5 | 66 | 28 | 40 80 | 2.9 3.9 |
| 1” | 147 | 96.5 | 75.4 | 34 | 40 80 | 3.4 4.5 |
| 1” | 195 | 134 | 108.7 | 43 | 40 | 3.6 |
| 1” | 242 | 162 | 133.5 | 50 | 40 | 3.7 |
| 2” | 297 | 238 | 199.2 | 62 | 40 | 3.9 |
| 2” | 380 | 257 | 209 | 79 | 40 | 5.2 |
| 3” | 436 | 390 | 335 | 90 | 40 | 5.5 |
| 4” | 555 | 450 | 400 | 110 | 40 | 6 |
- Pipe Schedule: 40 = Standard, 80 Extra Heavy
Buy online heavy-duty Manual Hydraulic Pipe Bender 1/2″ to 4″ is available in stores cites Delhi, Jaipur, Bhopal & Lucknow in India at best-discounted rates and fast delivery within the City on the same day.
We can also supply to all of India by road transportation. Are you looking for a quality product? You are at the right place.
Solwet Manual Hydraulic Pipe Bender 1/2″ to 4″ is the best performance for HDPE pipe face to face, widely used in industries, firefighting, Factories, Plumbing Contractors, water pipeline contracts, sewerage, and irrigation work.
Distribution network
Our channel network in all metro and capital cities: Delhi, Lucknow, Jaipur, Bhopal, Mumbai, Pune, Bangalore, Kolkata, Chennai, Hyderabad, Ahmadabad, Raipur, Patna, Vishakhapatnam, Nagpur, Vadodara, Chandigarh, Shimla, Jodhpur, Kanpur, Dehradun, Ludhiana, Jalandhar, and Patna.
We sell online and offline Manual Hydraulic Pipe Benders 1/2″ to 4″ with low market prices and the best quality & remarkable performance and durability for years in adverse conditions.
We provide after-sales service within the reach of Delhi, Jaipur, Bhopal, and Lucknow. Our prices are very competitive and the best discount on the SOLWET brand.
Other Manual Hydraulic Pipe Bending Machine pipe bending machine product detail link
Manual Hydraulic Pipe Bender 1/2″ to 4″ operational video
Technical Specifications :-
| Weight | 156 kg |
|---|---|
| Dimensions | 118 × 46 × 25 cm |
| Brand | Solwet |
| Manufacturer | Solwet Marketing Private Limited |
| Model Number | SMPL-MH4 |
| Product Type | Pipe Bending Machine |
| Machine Type | Manual Hydraulic Pipe Bending Machine |
| Operation Type | Hand Hydraulic |
| Operation Mode | Manual |
| Automation Grade | Manual |
| Drive Type | Hydraulic |
| Power Source | Manual Hydraulic |
| Hydraulic Ram Output | 20 Ton |
| Maximum Hydraulic Pressure | 20 Ton |
| Ram Stroke | 370 mm |
| Pipe Diameter Range | 21.3–108 mm |
| Pipe Size Range | 1/2″–4″ |
| Bending Capacity | 21.3–108 mm (1/2″–4″) |
| Pipe Wall Thickness | 2.75–6 mm |
| Maximum Bending Angle | 90° |
| Bending Angle Range | 0–90° |
| Bending Method | Cold Bending |
| Bending Shoes | 1 1/2″, 1 1/4″, 1/2″, 1″, 2 1/2″, 2″, 3/4″, 3″, 4″ |
| Number of Bending Shoes | 9 |
| Die Type | Interchangeable Bending Dies |
| Compatible Pipe Material | GI, MS, Stainless Steel, Steel |
| Application | Pipe Bending |
| Usage | Pipe bending |
| Industry | Construction, Fabrication, Industrial, Plumbing |
| Frame Material | Steel |
| Product Dimensions | 118 × 46 × 25 cm |
| Machine Dimensions | 118 × 46 × 25 cm |
| Net Weight | 156 kg |
| Product Weight | 156 kg |
| Portability | Portable |
| Mounting Type | Job-Site / Portable |
| Storage / Carrying Case | Wooden Case |
| Included Dies | 1 1/2″, 1 1/4″, 1/2″, 1″, 2 1/2″, 2″, 3/4″, 3″, 4″ |
| Included Accessories | Bending Shoes |
| Condition | New |
| Warranty | 6 Months |
| Country of origin | China |
