Solwet 63-250 mm Manual HDPE Pipe Butt Fusion Welding Machine

Product Description: –

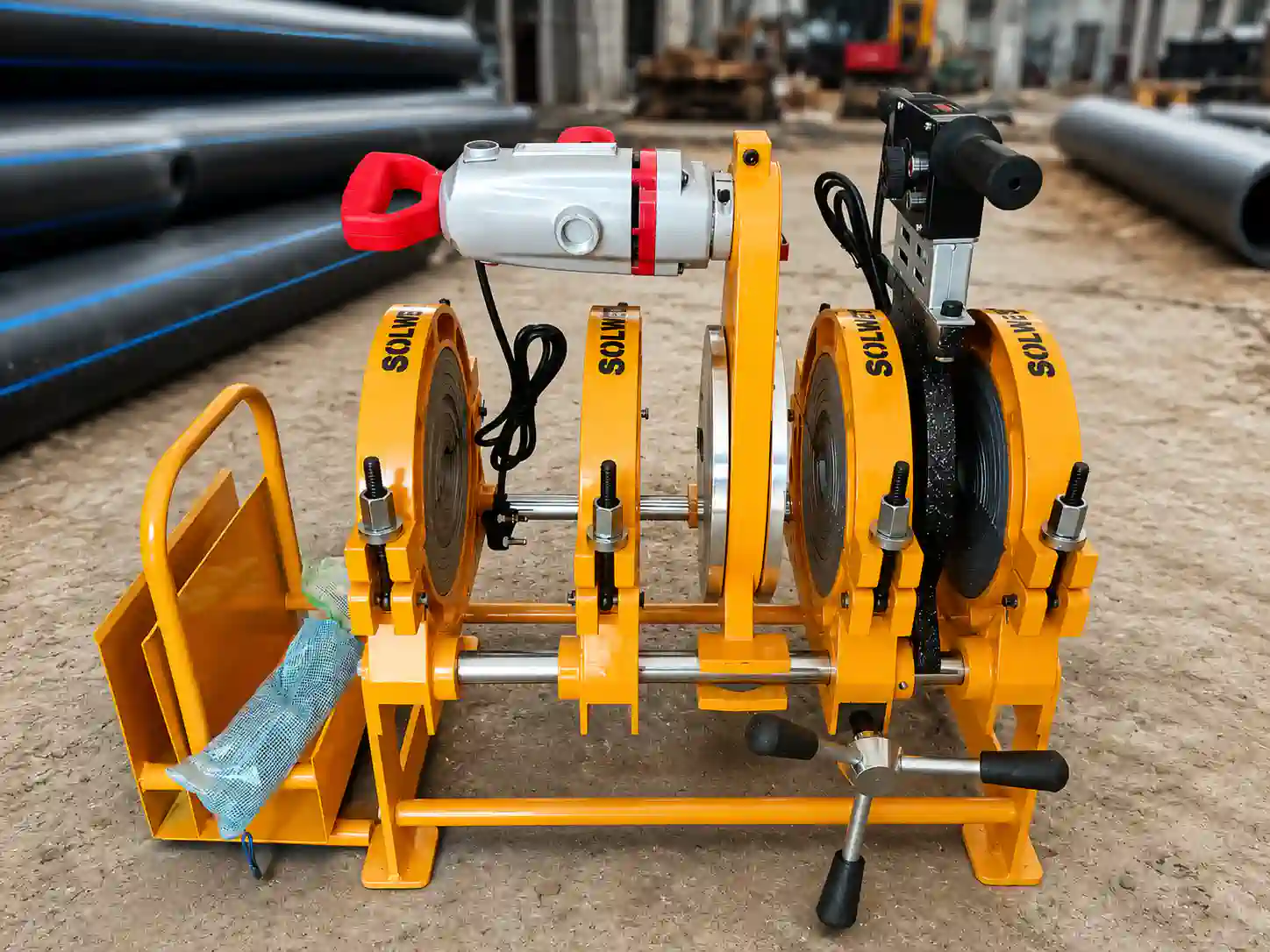

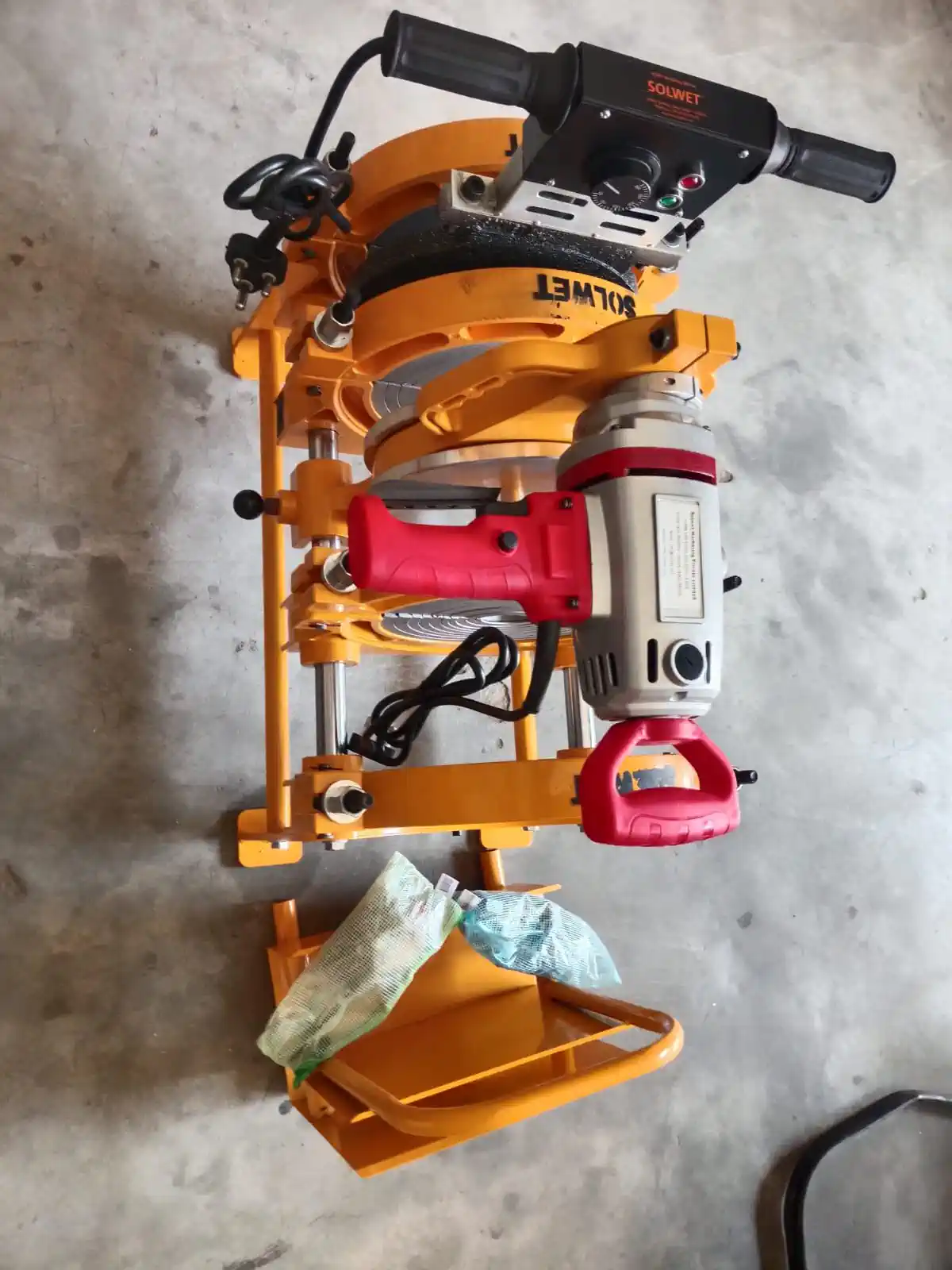

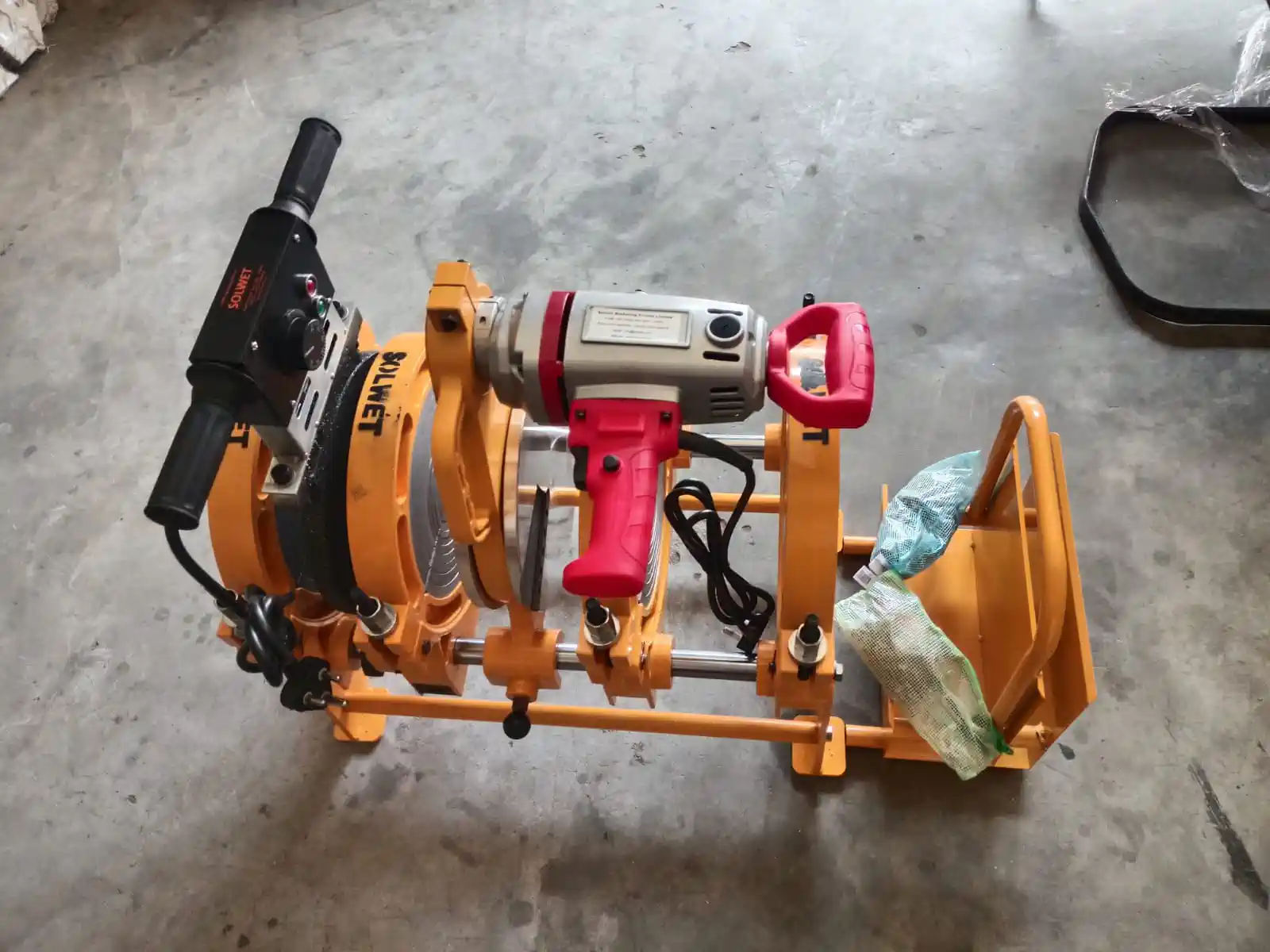

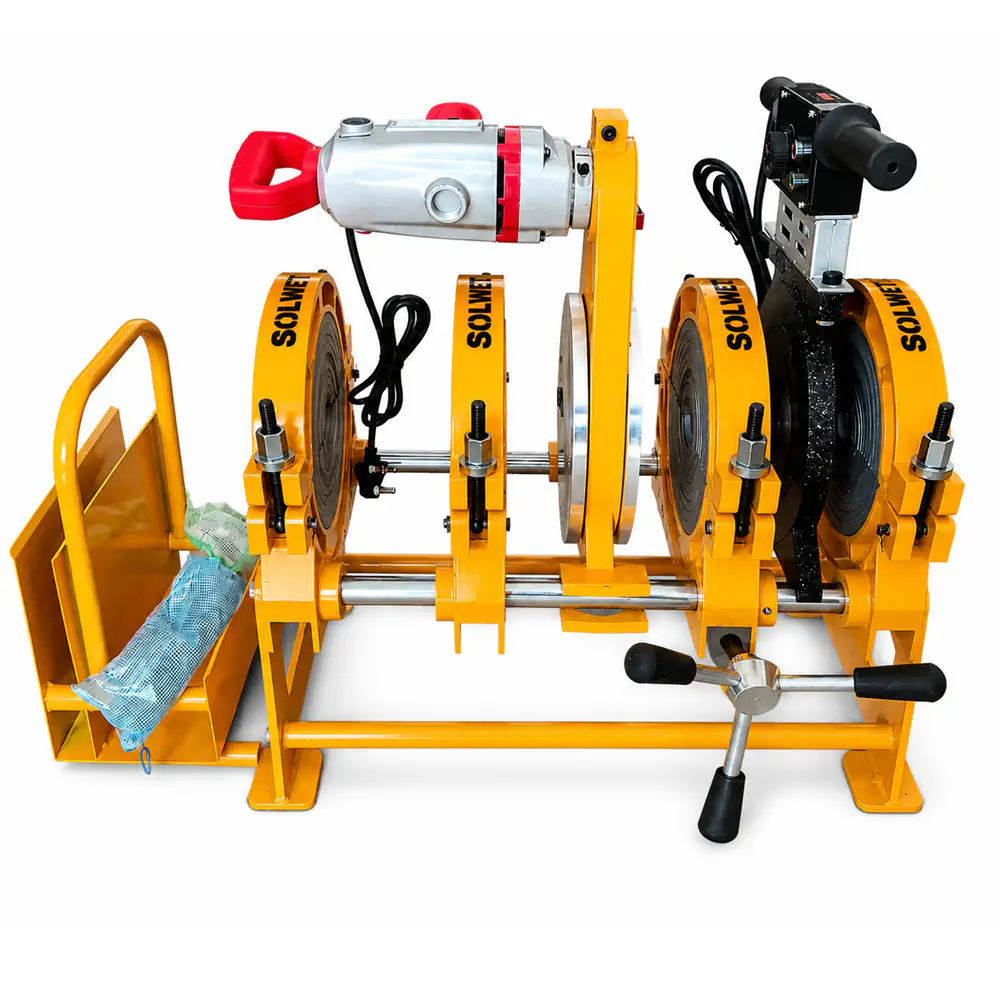

The Solwet Manual HDPE Pipe Butt Fusion Welding Machine 63–250mm is a professional pipe jointing solution for contractors, plumbers, irrigation professionals, infrastructure companies, and pipeline installation teams. Designed for 63mm to 250mm HDPE/PE pipes, the machine combines a pipe clamping system, heating plate, and pipe-end trimmer/facing tool. The pipe ends can be faced and aligned before heating and fusion, helping achieve consistent and properly aligned joints. Its manual operation makes it suitable for field installation and maintenance work that requires dependable HDPE pipe fusion.

Key Features: –

• 63–250mm pipe welding range
• Suitable for HDPE and PE pipes
• Heating plate for controlled pipe-end heating
• Trimmer/facing tool for smooth and parallel pipe ends
• Suitable for water, irrigation, drainage, and industrial pipelines

Applications: –

• HDPE water supply pipelines
• Plumbing applications
• Pipeline repair and maintenance
• Industrial pipe networks
• Infrastructure projects
• PE/HDPE pipe jointing

Installation Steps: –

• Place the Machine – Position the machine on a stable, level surface with sufficient working space.
• Install Clamp Inserts – Select and fit the correct clamp inserts according to the HDPE pipe diameter.
• Connect Power – Connect the heating plate and trimmer/facing tool, and ensure the electrical supply matches the machine rating.
• Position the Pipes – Place both HDPE pipe ends into the 4 clamps and align them properly.
• Clamp the Pipes – Tighten the clamps securely to prevent pipe movement during welding.
• Face the Pipe Ends – Place the trimmer between the pipes and face both ends until they are clean, flat, and parallel.
• Clean & Align – Remove plastic shavings, bring the pipe ends together, and check alignment.
• Heat the Pipe Ends – Place the heated plate between the pipe ends and follow the recommended fusion temperature and heating time for the pipe.
• Join the Pipes – Remove the heating plate and immediately bring the molten pipe ends together under the specified fusion pressure.
• Cool the Joint – Keep the pipes clamped and undisturbed until the recommended cooling time is complete.
• Release & Inspect – Release the clamps, remove the welded pipe, and visually inspect the fusion bead for uniformity and proper alignment.
