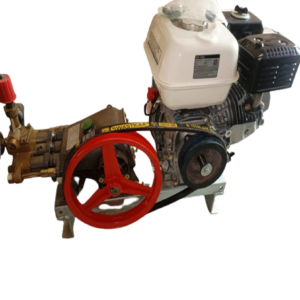

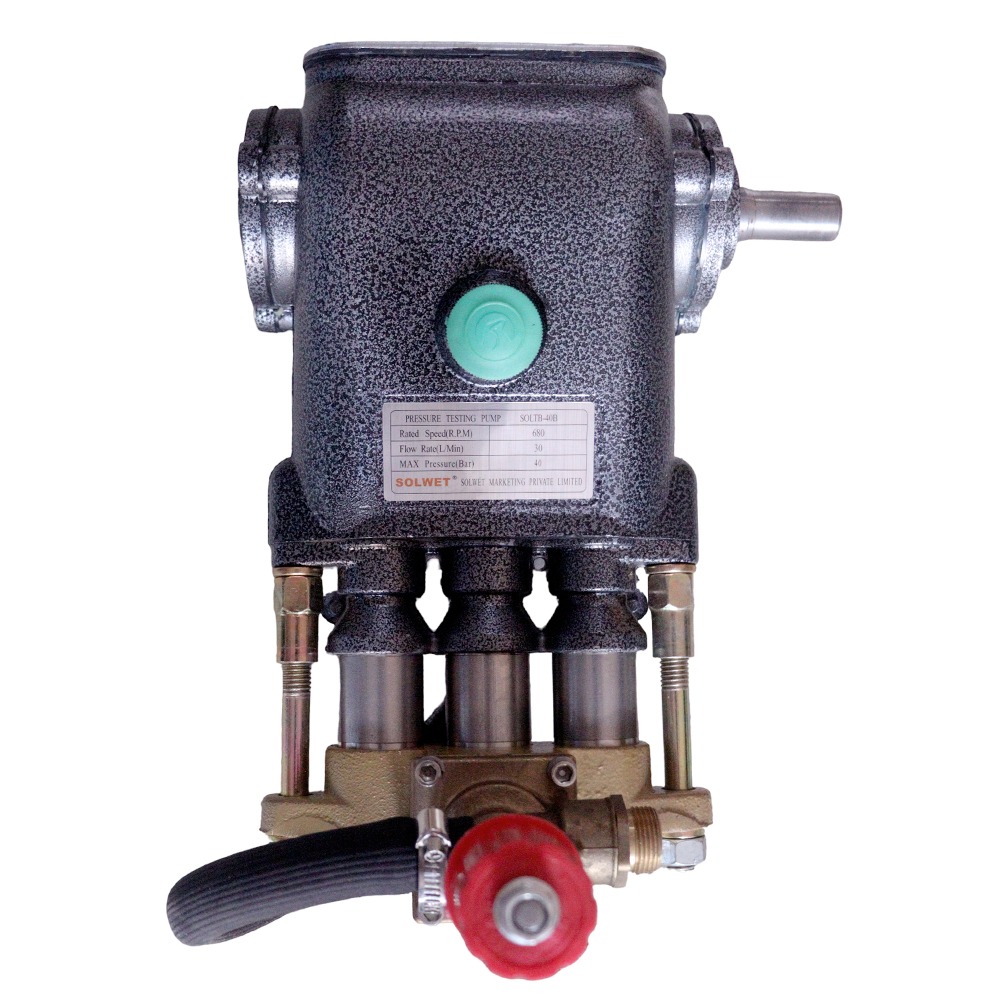

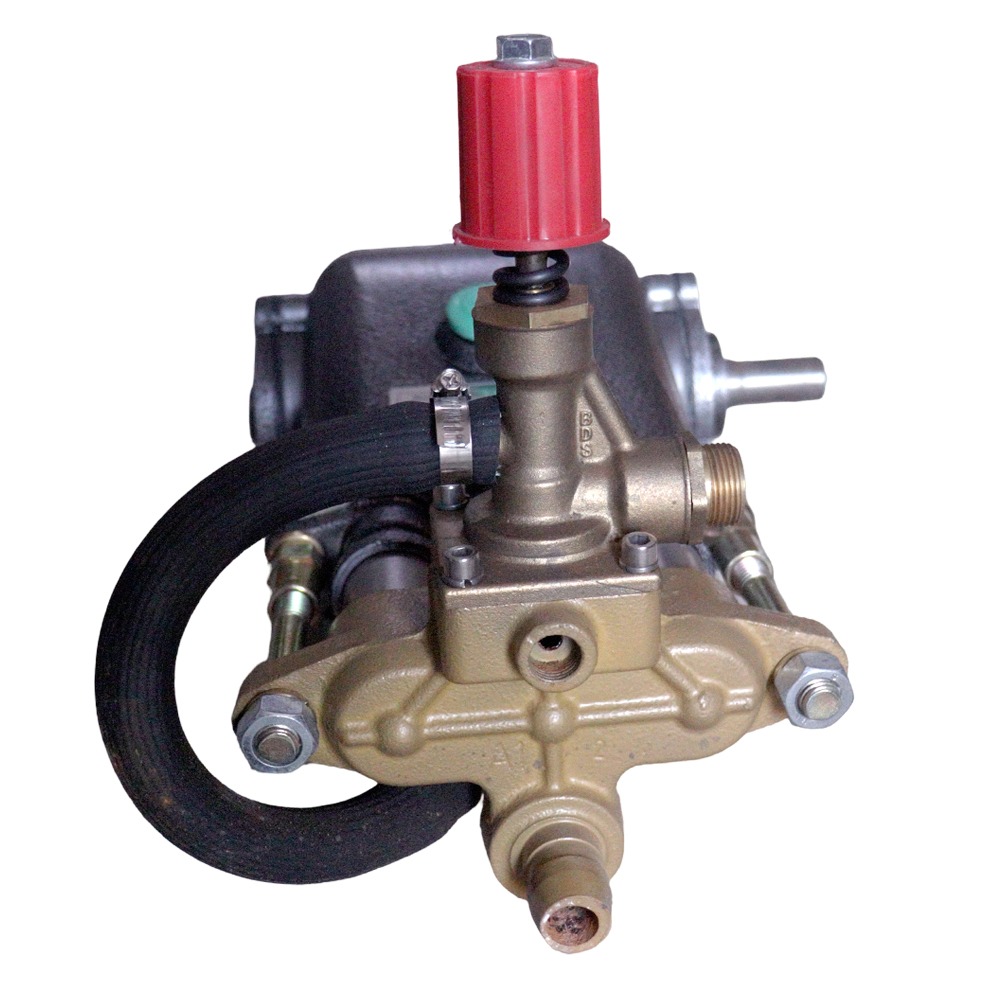

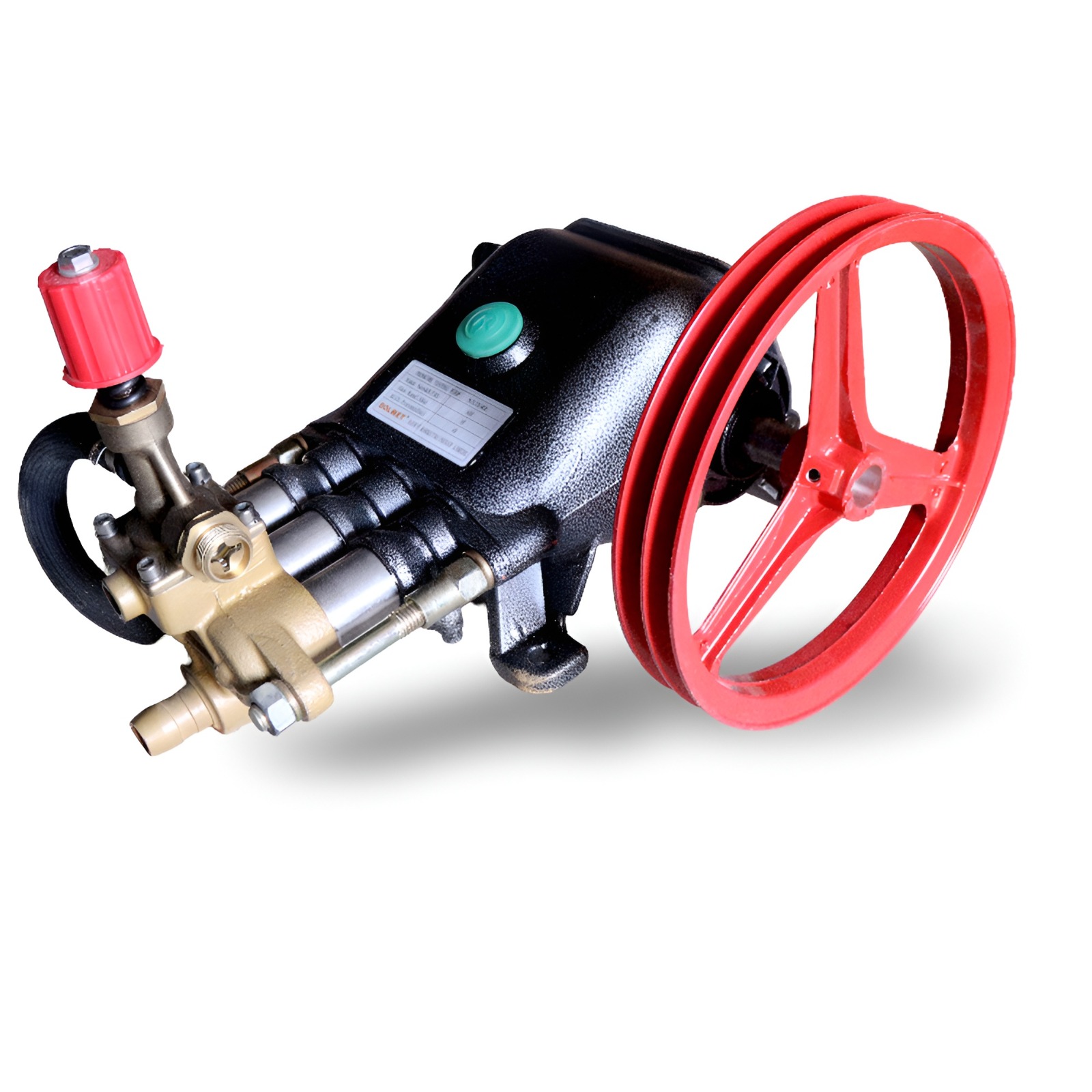

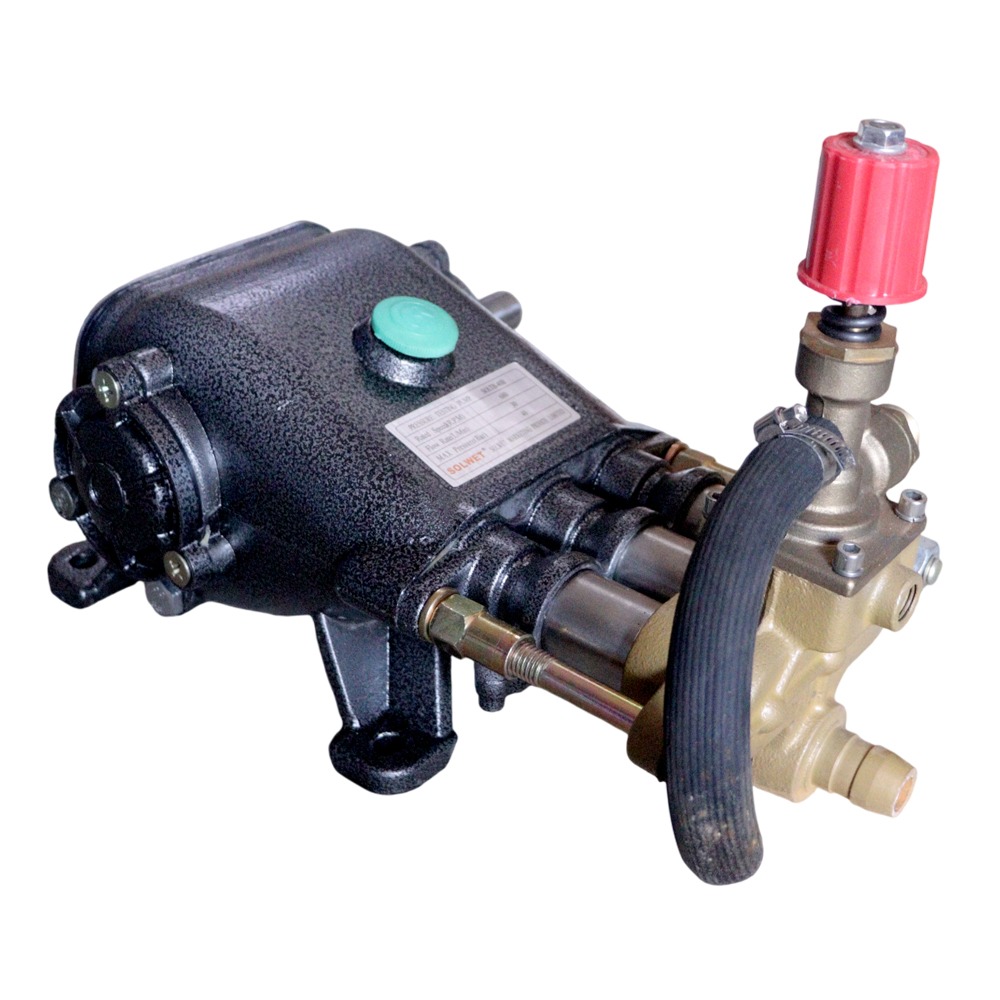

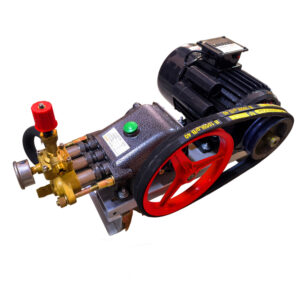

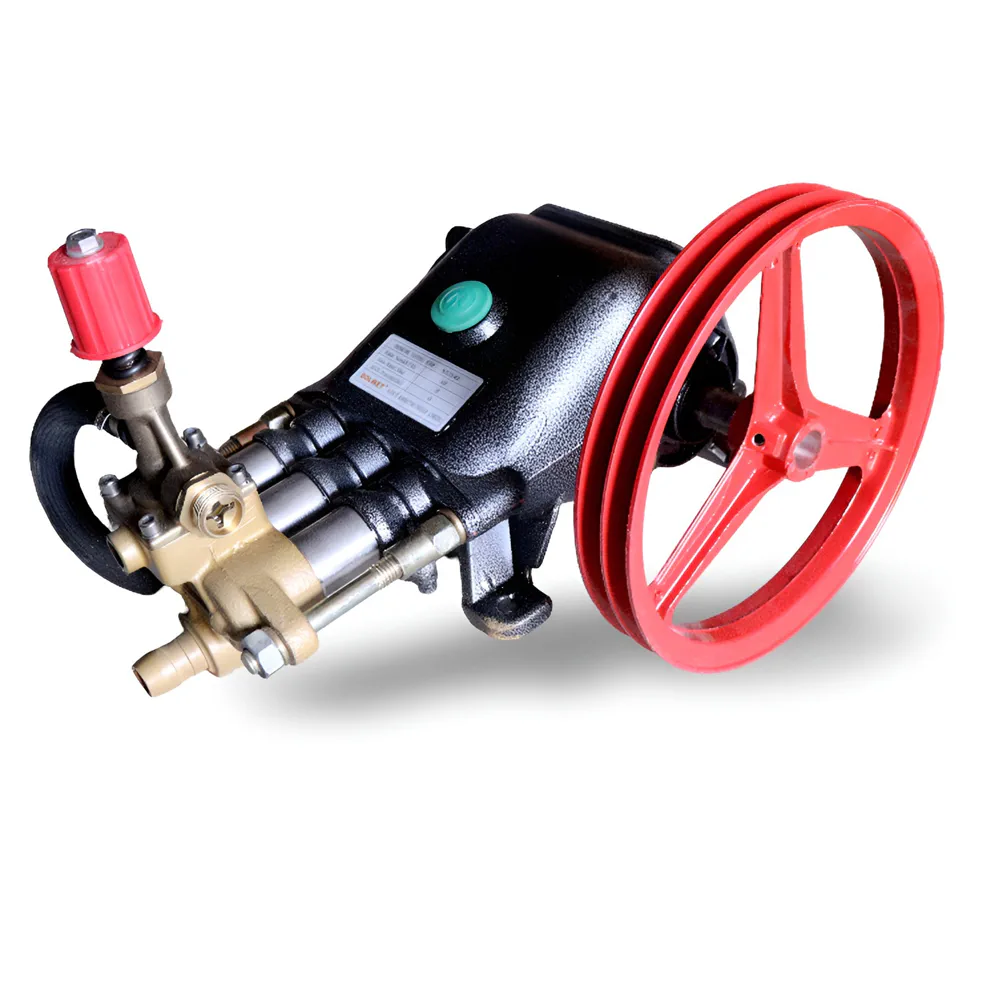

Hydro Testing Pump (SOLTB-40B)

Hydro Testing Pump

Description:-

A Hydro Testing Pump is a high-pressure device used to test the strength and leak-proof performance of pipelines, plumbing systems, valves, and pressure vessels. It works by filling the system with water and applying controlled pressure to detect leaks or weaknesses.

Technical Specification:-

Water Pump model – SOLTGB40B
No of Cylinders – 3 nos.
Max. Pressure: 40bar
Flow Rate: 30L/min
Rotation:680 r/Min
Casted Body heavy
Belt Size – B40
V Pully 5*2B (S)
Oil Required – 25W
Frame GI Coated C Channel Weight – 8KG
Total Weight – 40KG

Features:-

• High-Pressure Output – Capable of generating precise and stable pressure for accurate testing
• Robust Construction – Made from heavy-duty materials for long-lasting performance
• Corrosion-Resistant Body – Suitable for use with water and other testing fluids
• Easy Operation – User-friendly design with smooth pumping mechanism
• Leak-Proof Performance – Ensures accurate detection of leaks in pipelines and systems

Advantages and Benefits:-

• Detects leaks and weak points efficiently
• Reduces maintenance risks and failures
• Ensures system safety and reliability
• Saves time and operational costs
