HDPE 315mm hydraulic pipe jointing machine semi automatic complete set

180,000.00 - Inclusive of all taxes

HDPE Butt Fusion Welding Machine Hydraulic (Semi-Automatic) 90 to 315mm (Model No. SMH 315)

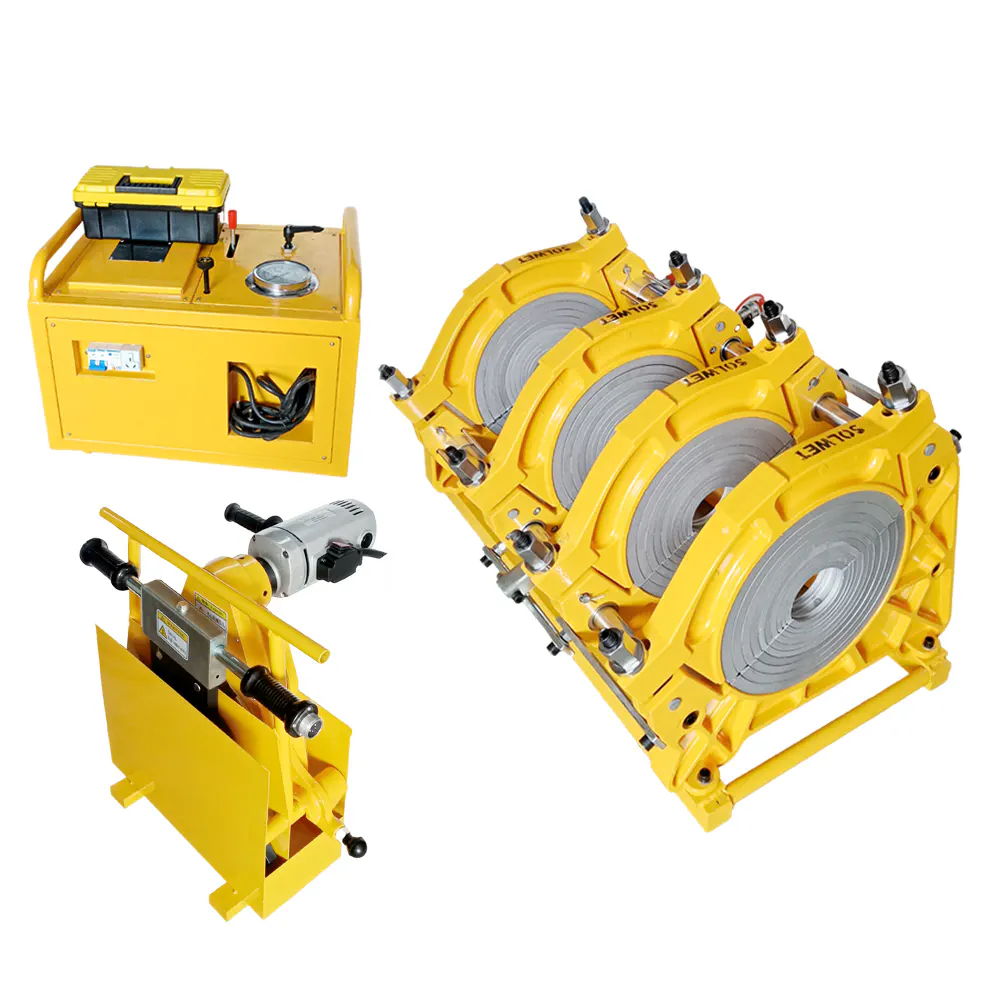

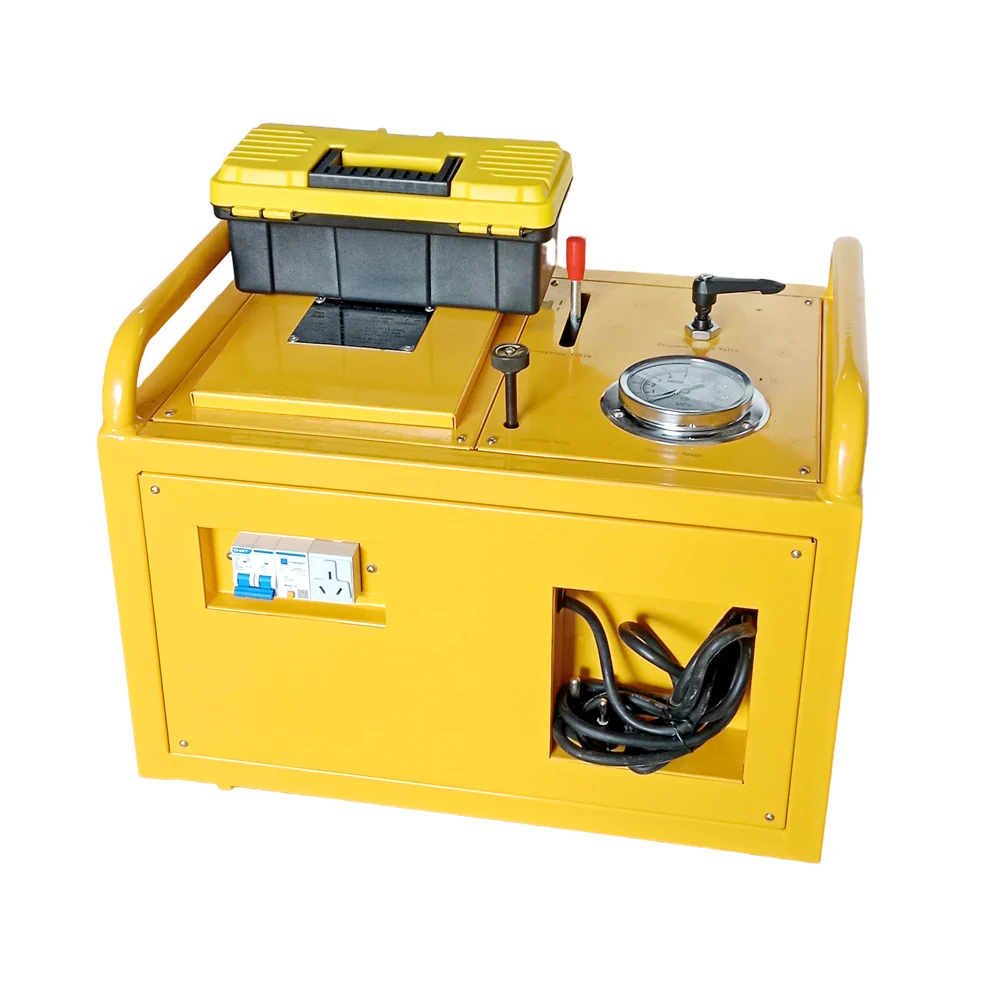

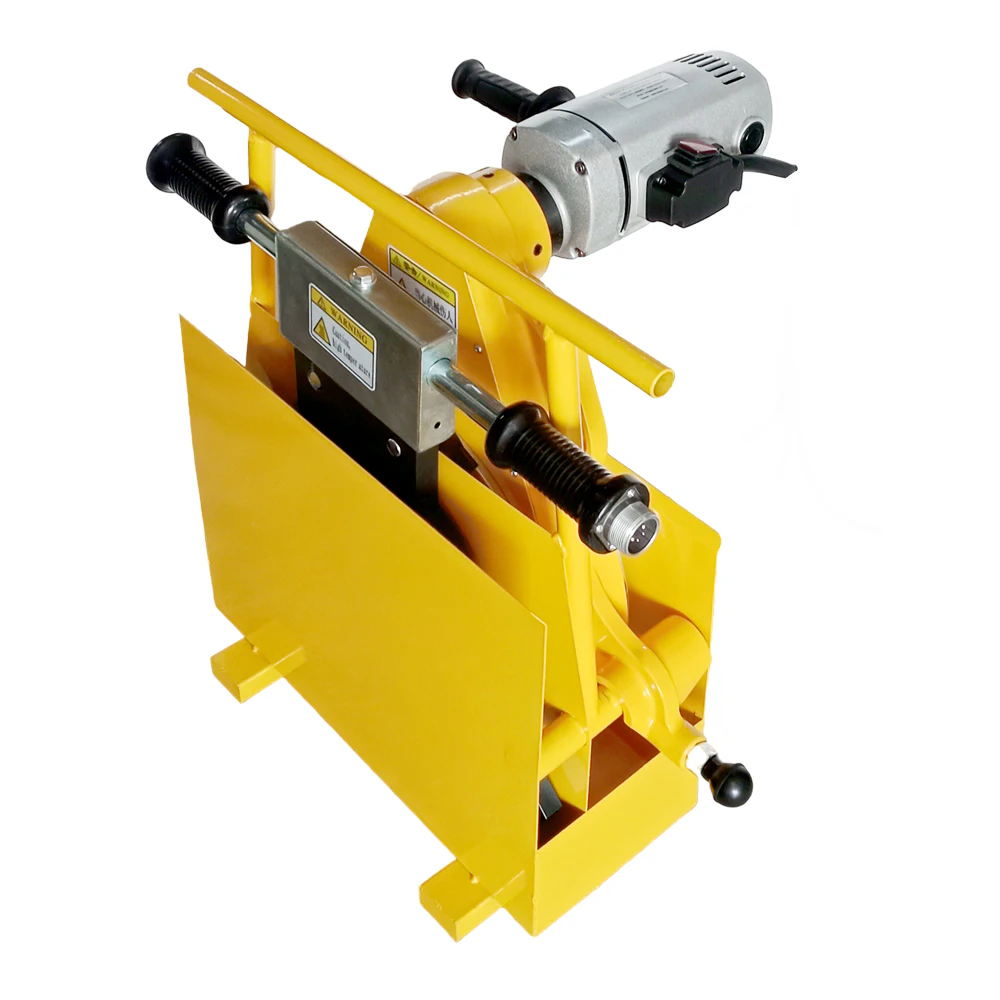

With complete high and superior quality Components. Long Service Life ensuring Low Maintenance and Easy Operating System. Machines come with four high-grade aluminum die-cast main clamps supported by two hydraulic SS grade cylinders and hose pipes with SS quick couplings. Built-in digital timers for soaking & integrated with Buzzer with a loud audible & visual signal. The Standard components consist of – Main Machine Body, Heating Plate, Trimming Unit, Electro-Hydraulic Unit, Trimmer / Heating Plate Stand, Reduce Clamp Inserts and Operation and service manual for 90 to 315mm HDPE hydraulic Butt Fusion Welding machine.

In stock

Technical Specification :

  1. Fusion Range(mm) – 90 110 125 140 160, 180, 200, 225, 250, 280, 315mm
  2. Temperature Heating Range – 270 °C
  3. Temperature Deviation in Surface – ≤±5 °C
  4. Working Voltage – 220V/50HZ
  5. Pressure Adjustable Ranges – 0-6.3Mpa
  6. Heating Plate Power – 3.5kw
  7. Planning Tool Power – 1.10kw
  8. Hydraulic Unit Power – 0.75kw
  9. Total Power – 5.35kw
  10. Gross Weight – 200KG
  11. Volume – 1 M³
  12. Packing – 2 Wooden Box
Weight 220 kg
Dimensions 100 × 66 × 64 cm
