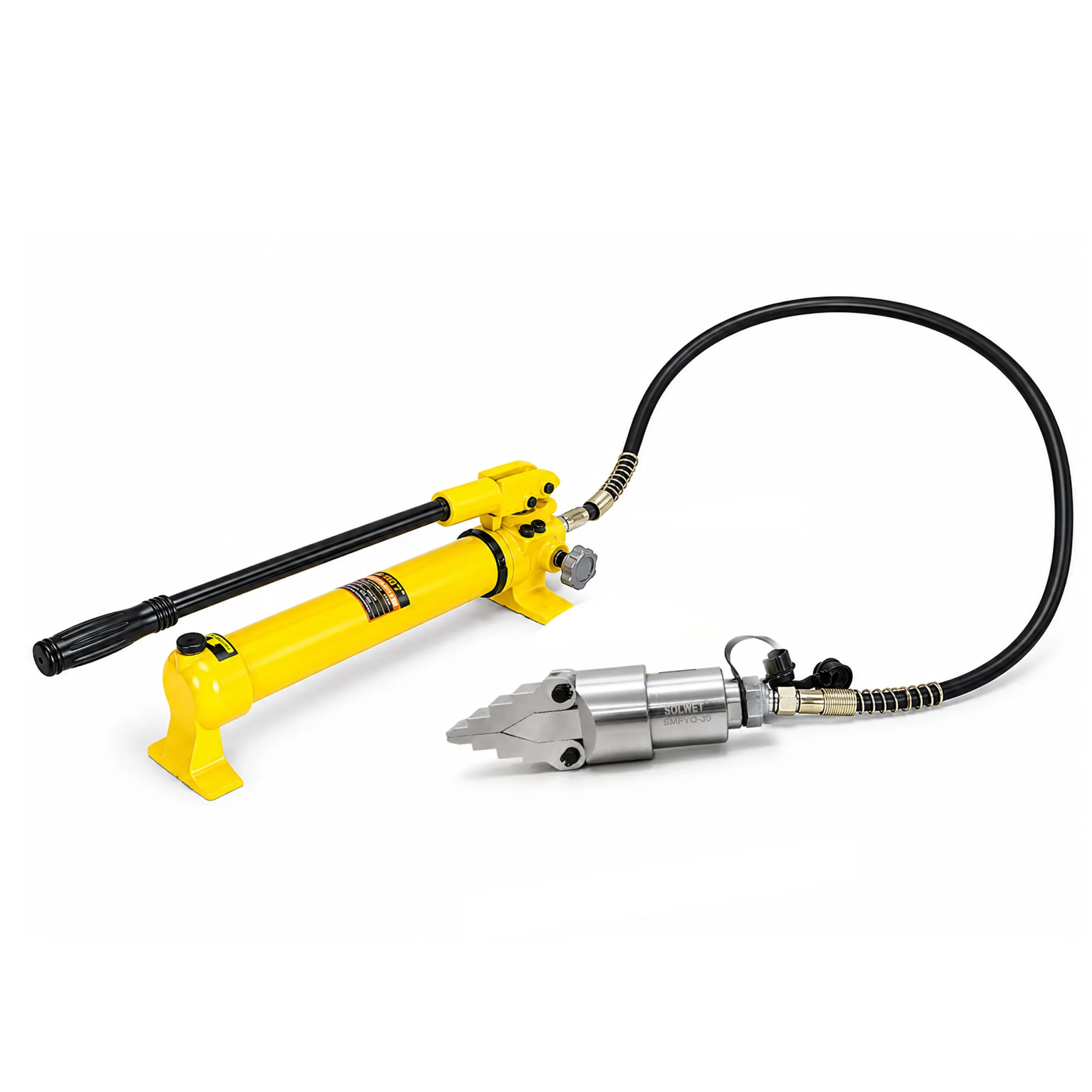

Flange Spreader Head with Hydraulic Pump

Product Description:-

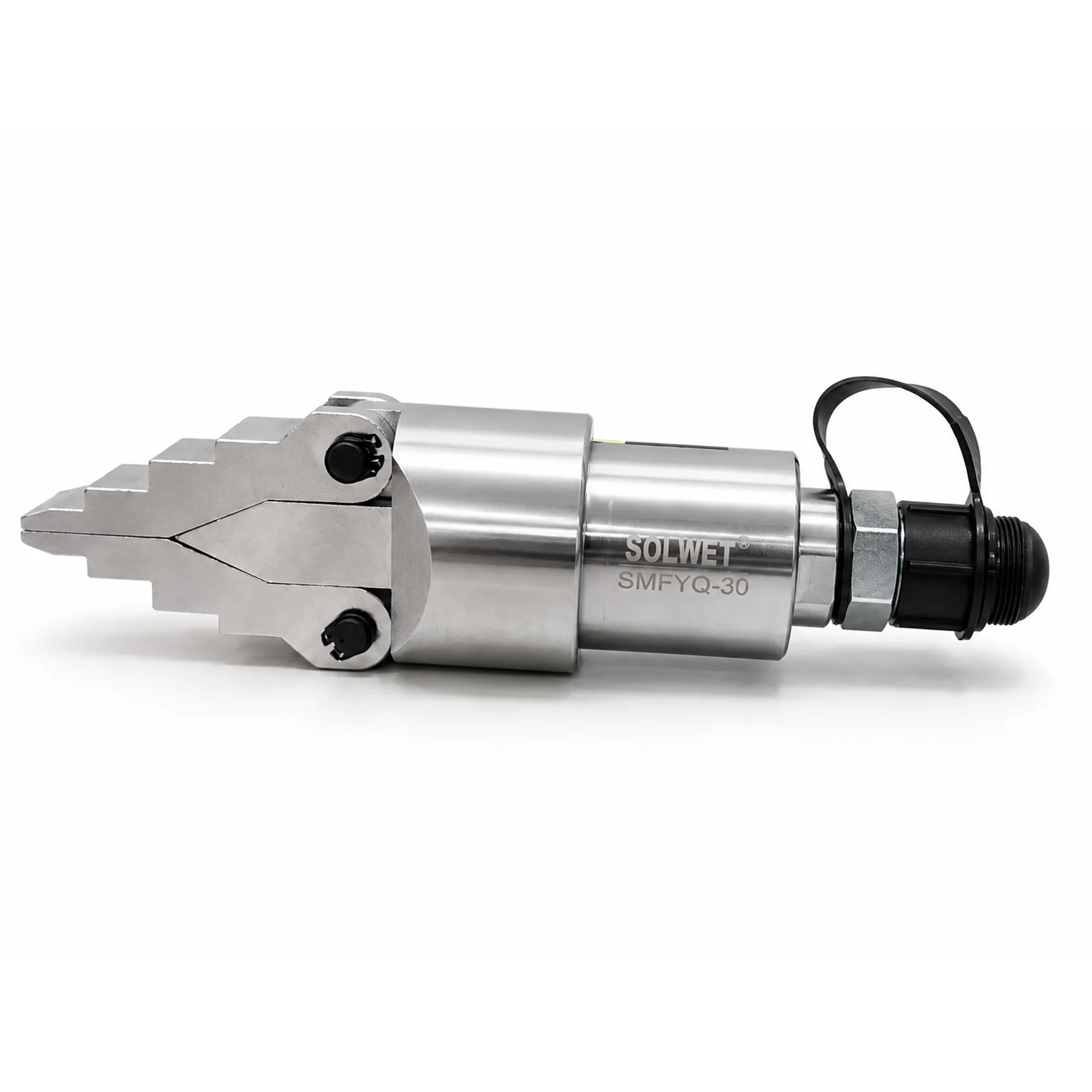

Technical Specifications of  Flange Spreader Head:-

• Model No.– SMFYQ-30
• Power Source – Hydraulic
• Spreading Force – 10T
• Tip clearance – 8 mm
• Max Spread – 30 mm
• Length – 240 mm
• Net Weight – 2.2 kg
• Gross Weight – 3.2 kg

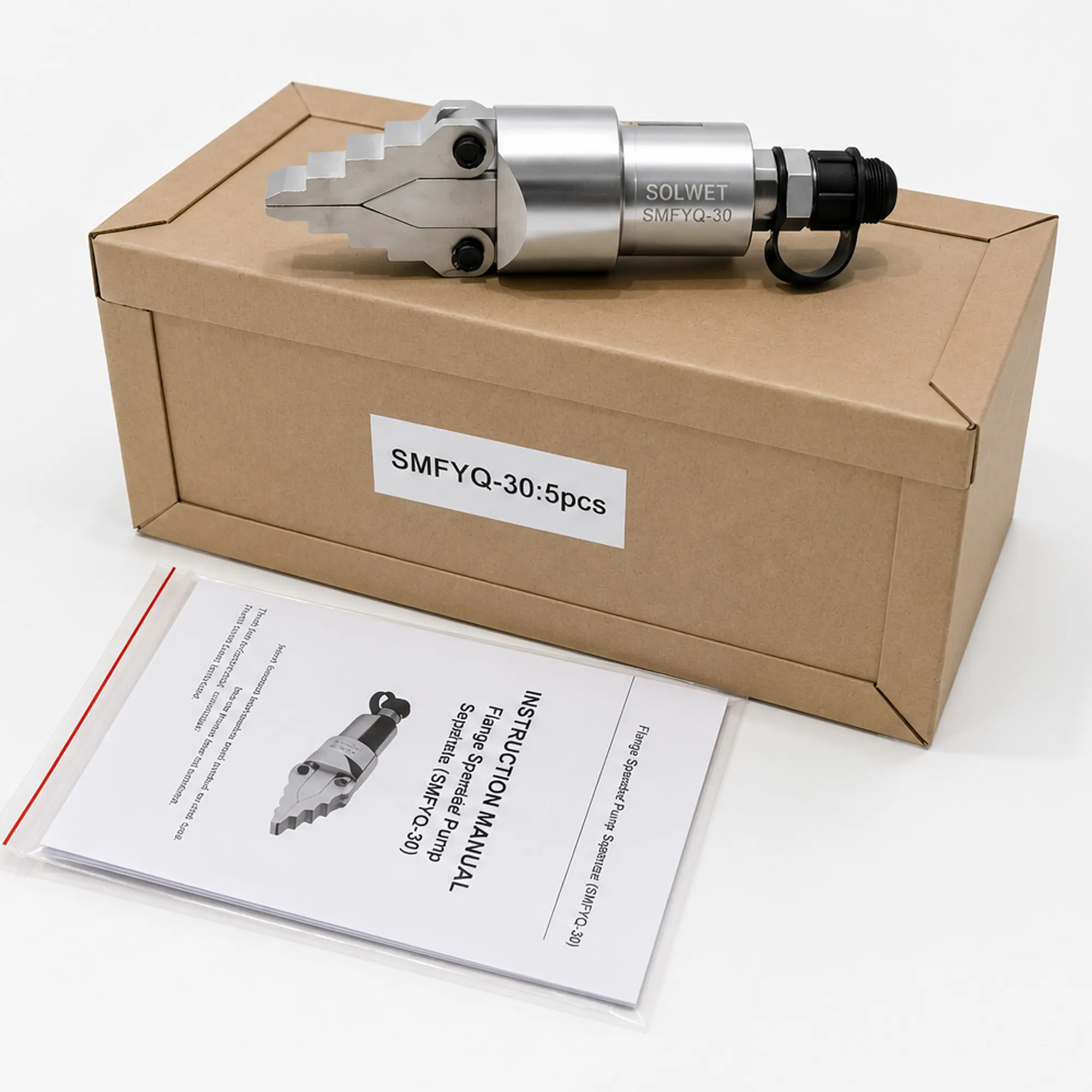

• Package – Plastic Box

Technical Specifications of  Hydraulic Pump:-

1. Model No – SMCP-700
2. Operation Type -Hand
3. Pressure Rating  1st Stage – 2 MPa
4. Pressure Rating 2nd Stage – 70 MPa
5. Oil displacement per stroke 1st Stage – 13 cm³
6. Oil displacement per Stroke 2nd stage – 2.3 cm³
7. Oil Capacity – 900 cm³
8. Cylinder compatibility -Single-acting
9. Pump speed – Two-speed
10. Net Weight – 9.65 kg
11. Gross Weight – 10.9 kg
12. Package – Honeycomb cardboard box
13. Packing size – 63 x 16 x 17 cm
