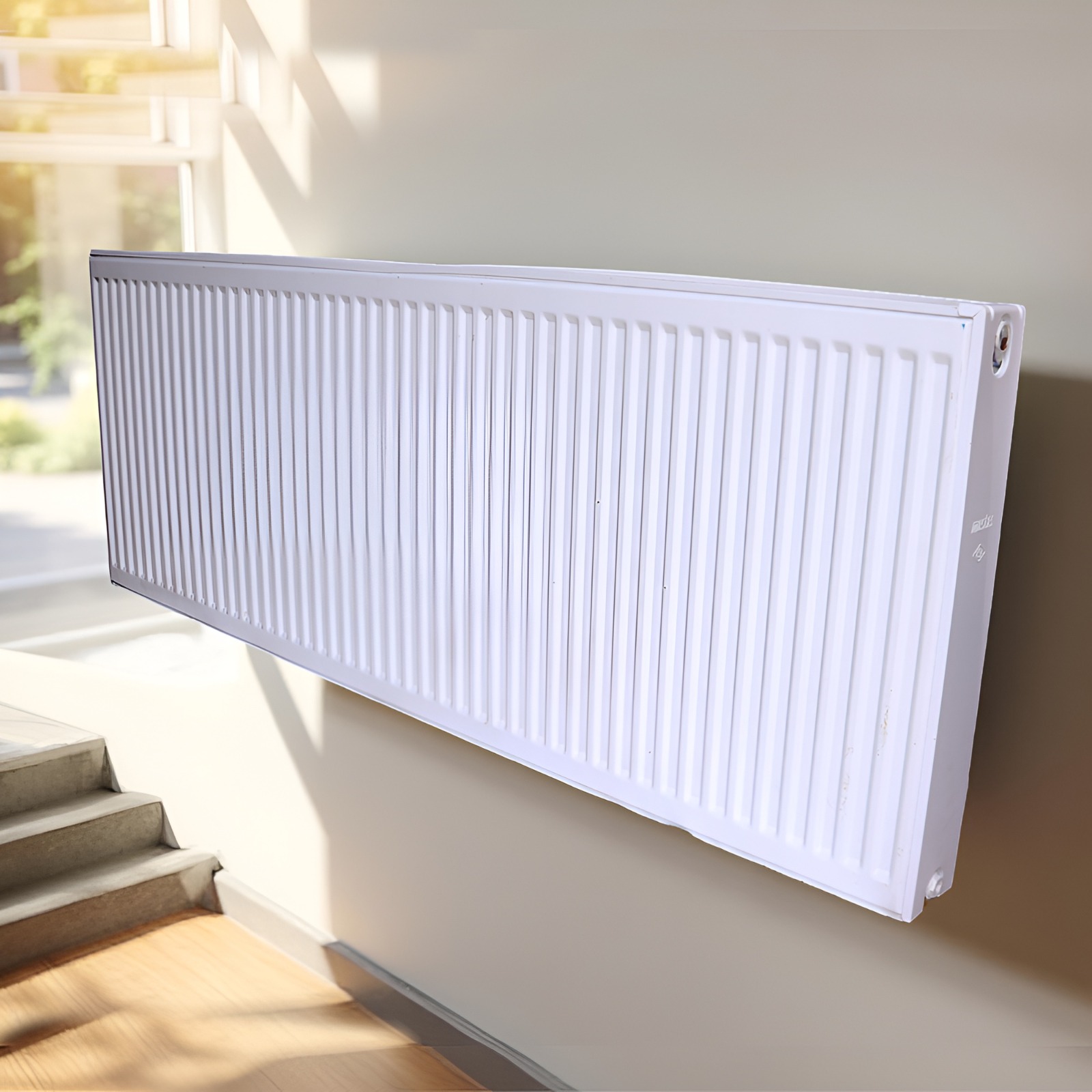

Steel Panel Radiators 1600mm


Central heating radiators panels 800mm are supplied with robust top grilles and side panels, and a choice of height, including 300, 400, 500 and 600 mm, with lengths from 400 to 3000mm. Solwet radiator comprises of a single panel with one convector plate (11k), a double panel with two convector plates (22k). Extra heating Panels (33K),  Solwet radiators can be used on indirect systems or closed heating systems. The radiators are designed to heat the air in the room using convection to transfer heat from the radiators to the surrounding air.  They do this by drawing cool air in at the bottom, warming the air as it passes over the radiator fins, and discharging the heating air at the top. This sets up convective loops of air movement within a room



C

15,705.93 24,166.95 - excl. tax

CENTRAL ROOM HEATING STEEL PANEL RADIATORS  TYPE 22 (600mm X 1600mm)

The compact panel radiator consists of 4 connections of 1/2″ side connection holes and a 33mm optimum pitch distance.  The Type 22 Panel radiators part include front semi-panel, back semi-panel, t-fitting, support part, top grill, slide cover, convector, and hook.

Radiators heat a room by transferring thermal energy from one medium to another.
They are powered by either Heat Pumps or boilers.
The system takes hot water from a centralized heating unit and heats the surroundings through heat dissipation by hot water circulation.
The system can control the heating through hot water circulation with self-temperature adjustment.

The thermostatic radiator valve (TRV) is a self-regulating valve fitted to hot water heating system radiators, to control the temperature of a room by changing the flow of hot water to the radiator for the safe functioning of the system.

Central heating Steel Panel Heating Radiators Type 22 1600mm are supplied with robust top grilles and side panels, and a choice of height, including 300, 400, 500, and 600 mm, with lengths from 400 to 3000mm. Solwet radiator comprises of a single panel with one convector plate (11k) and a double panel with two convector plates (22k). Extra heating Panels (33K).

Solwet radiators can be used on indirect systems or closed heating systems. The radiators are designed to heat the air in the room using convection to transfer heat from the radiators to the surrounding air.  They do this by drawing cool air in at the bottom, warming the air as it passes over the radiator fins, and discharging the heating air at the top. This sets up convective loops of air movement within a room.

Our channel network in all metro and capital cities Delhi, Lucknow, Jaipur, Bhopal, Mumbai, Pune, Bangalore, Kolkata, Chennai, Hyderabad, Ahmadabad, Raipur, Patna, Vishakhapatnam, Nagpur, Varodara, Chandigarh, Shimla, Jodhpur, Kanpur, Dehradun, Ludhiana, Jalandhar, Dehradun, Shimla, Manali, Kullu, Almora, and Patna
We sell online and offline Steel Panel Heating Radiators with low market prices and the best quality & remarkable performance and durability for years in adverse conditions.

Other central room heating products link

Steel Panel Heating Radiators type 22 Video link

SKU: SOL_NPNRI3S16525 Category:
Weight 56 kg
Dimensions 160 × 60 × 11 cm
Brand

Solwet

Condition

New

Country of origin

China

Name of Manufacturer/ Packer / Importer

Solwet Marketing Private Limited

Warranty Duration

Six Months

Usage of product

For room heating
