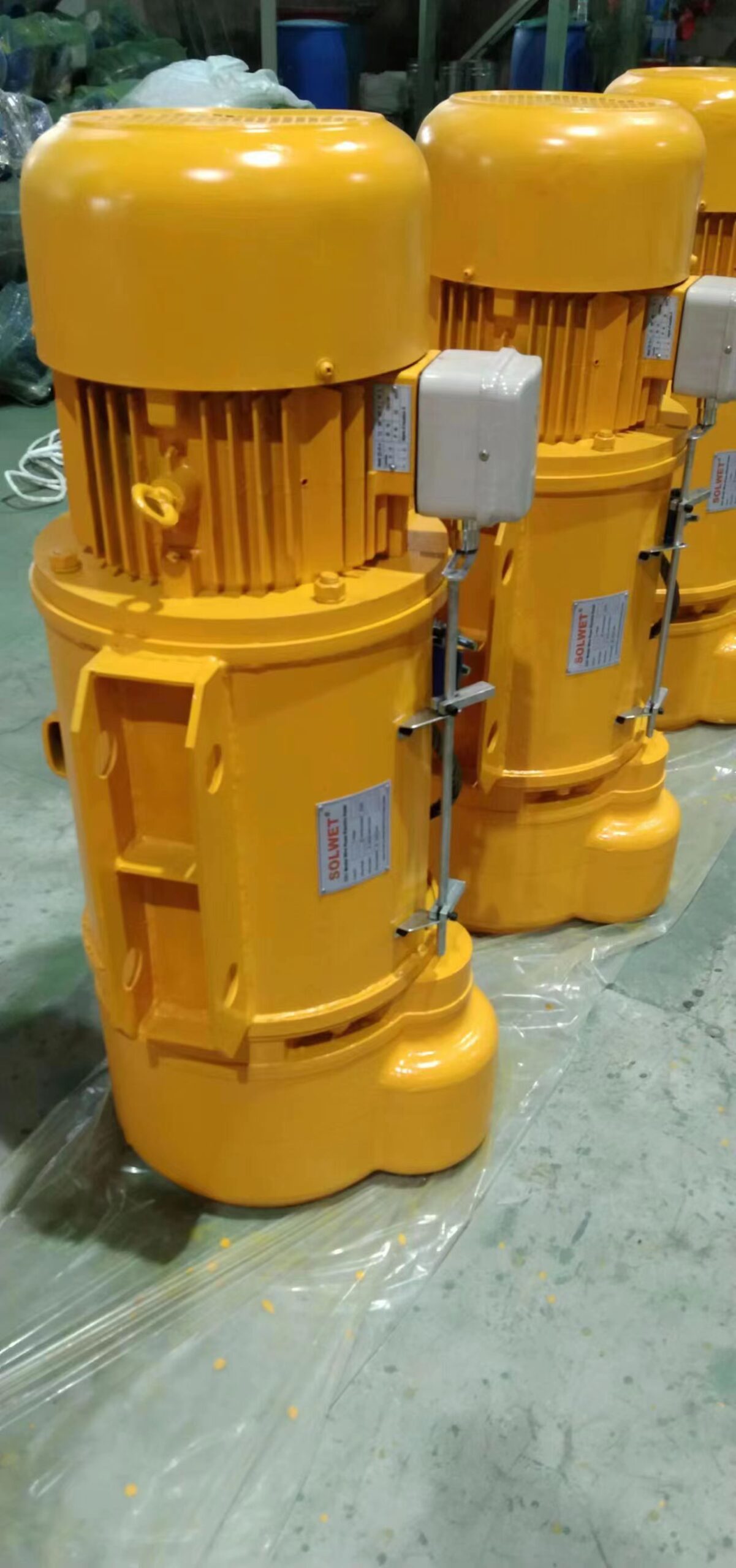

CD1 Wire Electric Hoist 3Ton 6Mtrs power 4.5kwatt with beam trolley motor Power – 0.8Kw

CD1 WIRE ELECTRIC HOIST 3TON 6Mtrs

CD1 is a small-sized lifting equipment that can be mounted on a single beam, bridge gantry, and arm crane.

With slight modification, it can also be used as a winch

it is widely used in factories, mines, harbors, warehouses, cargo storage areas, and shops, essential in raising working efficiency and improving working conditions.

Features:

A. The optional standard lifting height is 6,9,12,18,24,30 and 36 meters.
B. The lifting speed can be single-speed or double-speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H type tail, and an I-type rail is also available.
D. The recommended rope reeving of this kind of hoist is 2/1, 4/2, or 4/1,
E. The normal traveling speed is 20m/min, and 12.5,16,25,32m/min by request.
F. The normal rail gauge of the double-girder hoist is 1200, 1500, 1800, 2100, and 2300mm.
G. The normal traveling speed of this kind of hoist is 20m/min, and 30, 45m/min by request.

Technical specification :

Capacity – 3 Ton

Lifting Height – 6 Mtrs

Lifting Speed  – 8 M/min

Travel Speed – 20mtrs/30mins

Wire rope Dia  – 13mm

Wire Track – 2 min curvature radius

Power  – AC 3 phase 415v, 50 Hz

Hoisting motor  power – 4.5Kw

Hoisting motor Rotation speed – 1380R/min

Hoisting motor  Current – 11Amp

Traveling motor Power – 0.8Kw

Traveling motor Rotation Speed – 1380R/min

Traveling motor Current – 1.25amp

Net Weight – 280 Kg

Main Dimention (mm)  – H985, E848, L2 – 230, L1 – 380, LCD – 915, LMD- 915, m448, n264, h211.5,θ25, B279-930, F438/642

Distribution network:

Our channel network in all metro and capital cities Delhi, Lucknow, Jaipur, Bhopal, Mumbai, Pune, Bangalore, Kolkata, Chennai, Hyderabad, Ahmadabad, Raipur, Patna, Vishakhapatnam, Nagpur, Vadodara, Chandigarh, Shimla, Jodhpur, Kanpur, Dehradun, Ludhiana, Jalandhar, and Patna. Also available with our authorized dealer network around India.

We sell online and offline sMini Lifting Monkey Crane Rotatable with low market prices and the best quality & remarkable performance and durability for years in adverse conditions.
We provide after-sales service within the reach of Delhi, Jaipur, Bhopal, and Lucknow. Our prices are very competitive and the best discount on the SOLWET brand.
We also offer a bulk purchase discount, you can contact us if planning to bulk purchase standard packing in a carton plastic wrap box. used in the field of residential job indoor & outdoor movement jobs.
