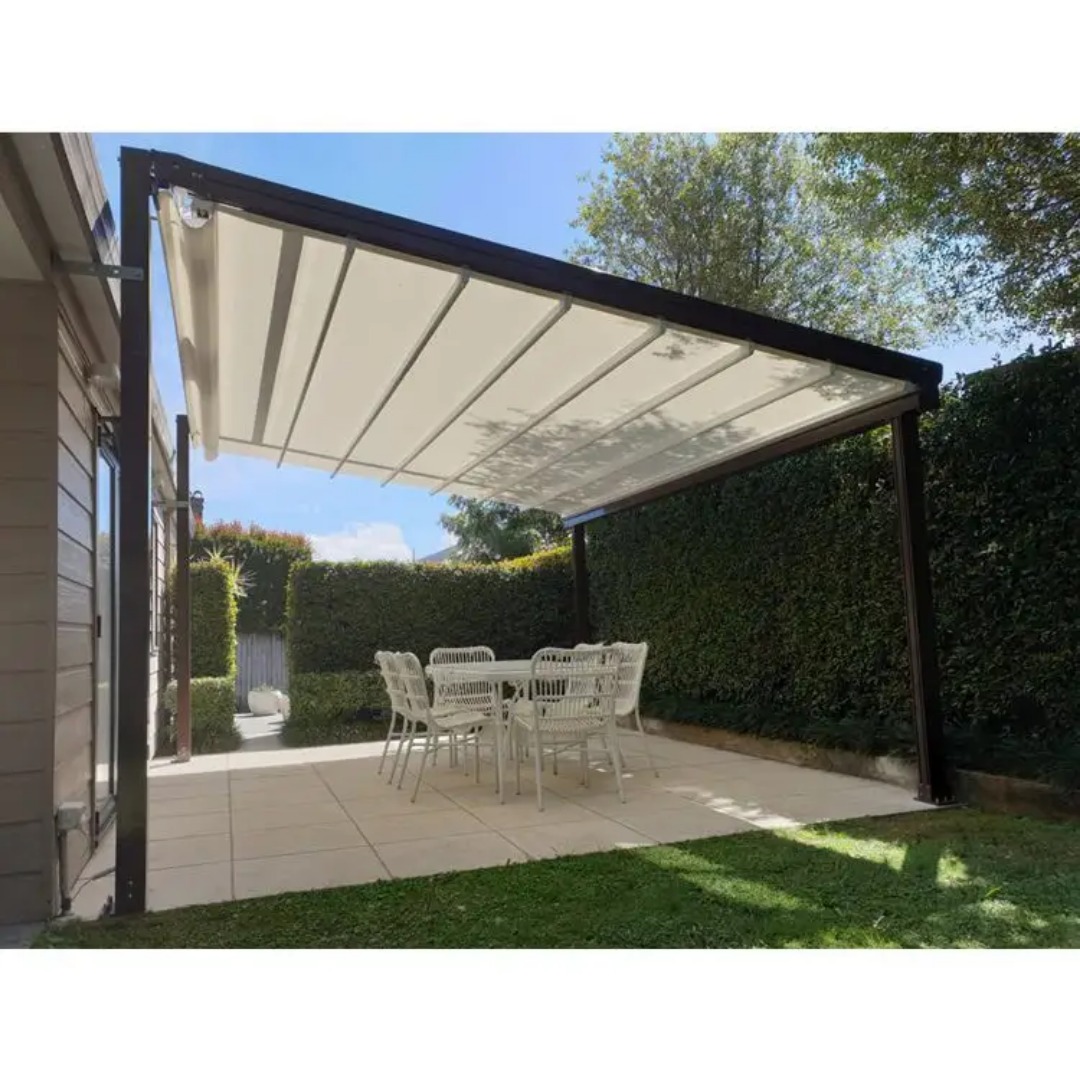

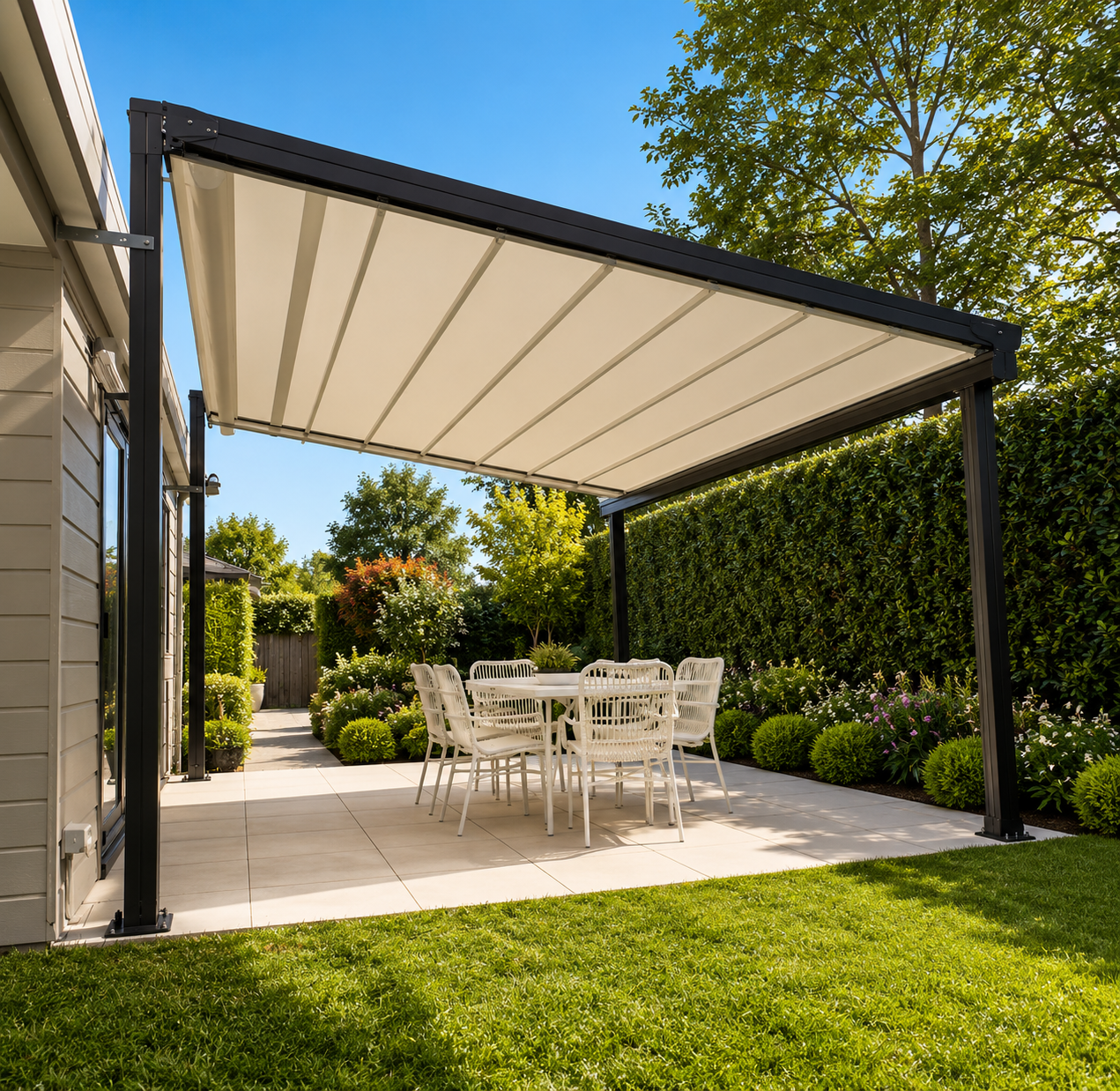

10x13x9.5 feet PVC Pergola Roof (3x4x2.9 mtr)

PVC Pergola Roof:-

The Special fabric connects to the crossbar, driven by a motor that moves a pulley along an aluminum alloy track, enabling the canopy to open and close. This allows users to freely enjoy outdoor space while providing sunshade and rain protection, replacing traditional fixed canopies and sunrooms, and redefining outdoor space solutions.

Technical Specifications:-

• Model No-SOL-PVC342429
• Large Support Rod – 80 x 65 x 1.3 mm
• Guide Rail – 130 x 70 x 2.2 mm
• Guide Rail (heavy-duty) – 200 x 110 x 2.5 mm
• Water Slot – 150 x 130 x 2.5 mm
• Small Support Rod – 39 x 65 x 1.3 mm
• Stand Column – 144 x 102 x 2.0 mm
• Synchronous Belt Embedded 14 Steel Wires
• Light Strip Pole, Light Strip
• Color – Dark Grey
• Material: Aluminium alloy 6063
• Size: Standard Size of 5 x 7 mtr, can be customized to a maximum extension size of 11 mtrs
• Surface Treatment: High-density powder coating for enhanced rust and corrosion resistance
• Horizontal bar Spacing: 450 mm -500 mm
• Lamp Strip: waterproof silicon with 300K brightness LED
• Rain resistance: Fully waterproof design
• Wind Resistance: Capable of withstanding wind speeds up to 62 km/hr

Fabric Specifications:-

• Fabric Material: PVC + Polyester
• Tensile Strength : Radial 3312N/5 cm , latitudinal 2898N/5 cm
• Fabric thickness: 0.68 mm
• Lifespan: Normal use with a warranty of up to ten years
• Fire rating: GB/T5455-2014
• Weight: 850 g/m²
• Color fastness: UV resistance level 4

Advantages:-

• Waterproof – protects from rain completely
• Low maintenance – doesn’t rust or corrode
• UV-resistant – reduces heat and sun exposure
• Budget-friendly – cheaper than glass or metal roofing
