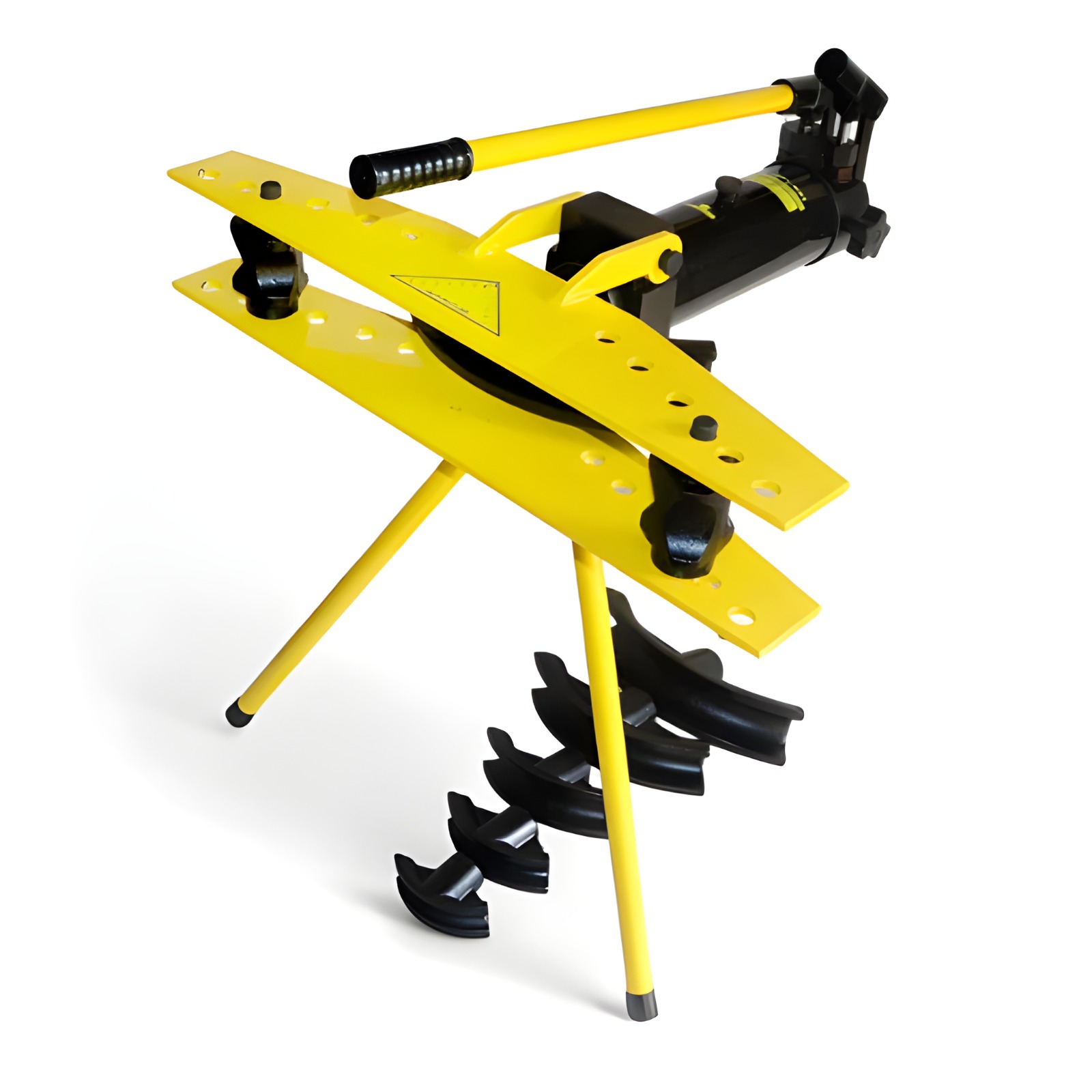

Pipe Bending Machine Hand Hydraulic 1/2″ to 2″
10 in stock
- Model No. SMPL-MH2
- Pipe bender
- Max pressure: 13T
- Max stroke: 250mm
- Bending capacity: 21.3-60mm (1/2″-2″)
- Bending shoes: 1/2″,3/4″,1″,1 1/4″,1 1/2″,2″
- Pipe wall thickness: 2.75-4.5mm
₹17,151.00 ₹24,106.00 - Including GST 18%
10 in stock
MS GI SS Pipe Bending Machine from 1/2″ to 2″
| Weight | 53 kg |
|---|---|
| Dimensions | 73 × 32 × 20 cm |
