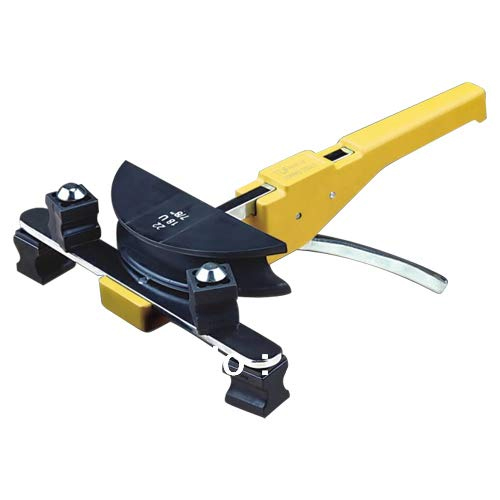

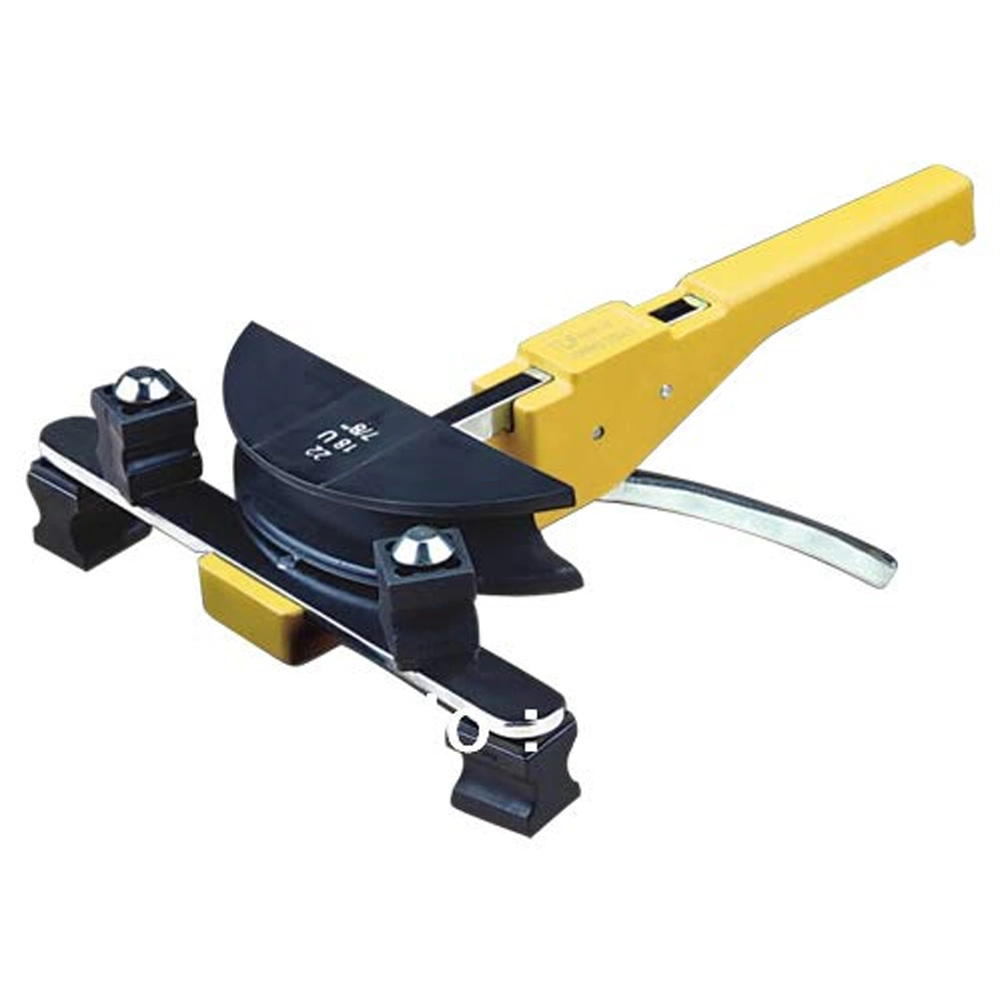

Manual tube Bender 22mm
1 in stock
Manual tube bender size 6mm to 22mm.

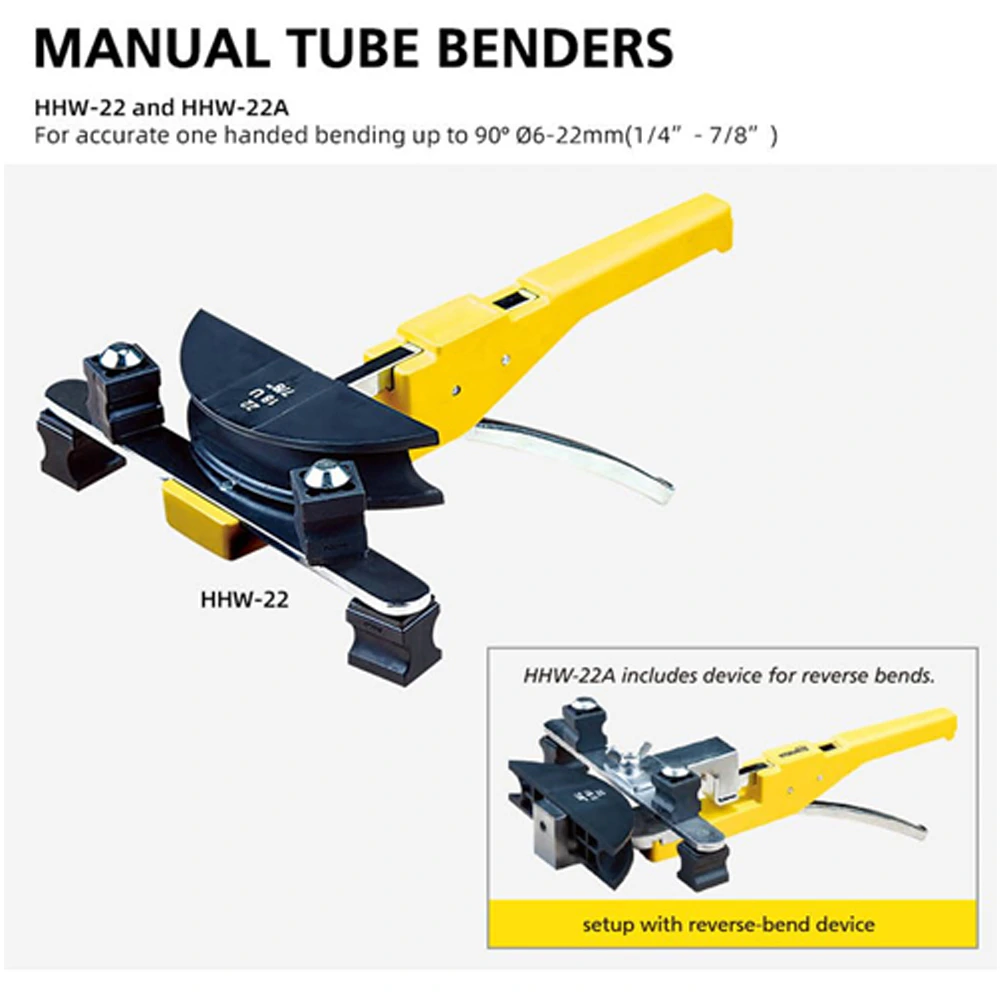

For Accurate one-handed bending up to 90 deg. dia 6 to 22mm (1/4″ to 7/8″) suitable for bending soft copper tubes, coated copper tubes and multilayer composite tubes. Universal use in sanitary, heating, air conditioning, refrigeration, and hydraulic applications. Saving on fittings storage procurement, soldering joints, pressing joints and working hours.
Accurate bending even in restricted space. production of U-bends, swan-neck bends and connecting bends possible at all levels. Easy and rapid changing of the bending shoes. fast release and removal of the bending shoes. compact and lightweight, easy to the job site.
- Model no. SMPL-M1478
- Pipe bender
- Bending capacity: 6-22mm (1/4″-7/8″)

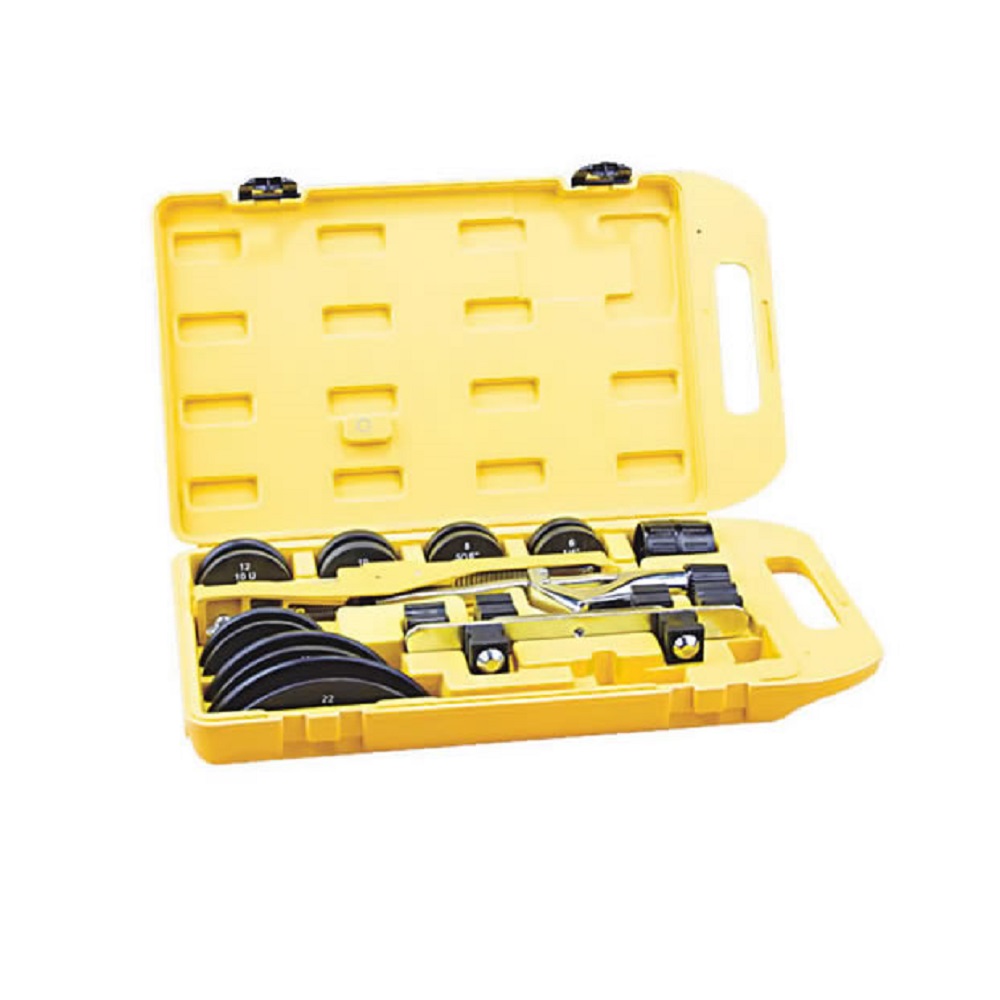

- Bending shoes: 1/4″(6mm), 5/16″(8mm), 3/8″(10mm), 1/2″(12mm), 5/8″(16mm), 3/4″(18mm), and 7/8″(22mm)
- Pipe wall thickness: 1mm
- Gross weight 4.5Kg
- Packing Size: 55X32X9cm
₹12331 ₹16857 - Including GST 18%
1 in stock
MS GI SS Copper Manual Pipe Bender 6-22mm (1/4″-7/8″)
| Weight | 5 kg |
|---|---|
| Dimensions | 55 × 32 × 9 cm |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Pipe Bending Machine
Pipe Bending Machine Electric Hydraulic 2″
The manual hydraulic pipe benders are designed for precision cold bending of thick-walled pipes (gas, water, steam pipe, unheated black iron pipes, galvanized pipes, schedule 40 & 80) up to 90 deg following GB/T 3091, DIN 2440, EN 10255, BS1387 standards.
Solwet pipe benders are ideal for plumbing, sanitary, and heating installation on construction sites. It is used in making apparatus and boiler making and for industrial applications.
Characteristic:
- Capable of bending angles from o deg to 90 deg on pipes ranging from 1/2″ to 2″.
- Cold bending, no pre-warming of the pipe is required.
- effective work with an electric pump.
- to carry handle and casters to ensure the quick and easy move from site to site.
- All components supplied in wooden case, including electric pump, the bender, bending shoes, and service pack.
- Model No. SMPL-EH2
- Electro-Hydraulic Pipe Bender
- Max pressure: 13T
- Max stroke: 250mm
- Bending capacity: 21.3-60mm (1/2″-2″)
- Bending Angle: 90°< a < 180°
- Bending shoes: 1/2″,3/4″,1″,1 1/4″,1 1/2″,2″
- Pipe wall thickness: 2.75-4.5mm
- Packing Size(mm) :Â 960*350*270
- Gross Weight: 74Kg
Model no. Hydraulic ram output (ton) Ram stroke (mm) Bending range (O.D) mm Bending shoes (inch) G.W. (kg) Packing Size (cm) SMPL-EH2 13 250 ø21.3 – ø60 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ 66.9 90X35X28 SKU: pipe-bending-machine-electro-hydraulic-2 -
-
Pipe Bending Machine
Pipe Bender Manual Hand Hydraulic pressure 6 ton size 10mm to 25mm
Manual hand hydraulic pipe threader from 3/8″(10 mm) to 1″(25 mm).
- Model No. SMPL-MH1
- Pipe bender
- Max pressure: 6T
- Max stroke: 150mm
- Bending capacity: 16-33mm (3/8″-1″)
- Bending shoes: 3/8″,1/2″,3/4″,1″.
- Pipe wall thickness: 2.3-4.5mm
SKU: pipe-bender-manual-hand-hydraulic-pressure-6-ton-size-10mm-to-25mm -
Pipe Bending Machine
Single Head Hydraulic Pipe Bending
Technical Specification data:
Max bending capacity – Φ38X 2mm (For 45-degree carbon steel)
Max bending radius – 180mm (Can according to customer’s requirement)
Min bending radius –Â Depend on the diameter
Max feeding length – 3500mm (Can according to customer’s requirement)
Max bending degree – 190 Degree
Control Panel – PLC+touch screen
Bending unit – 16 Â piece
Accuracy – Rotary – ±0.1 degree
Bending – ±0.1 degree
Rotary servo motor power – 750Kw (Japan Mitsubishi)
Oil motor power – 4Kw
Max storage units – 16 group (Can enlarge according to the requirement)
Max pressure – 12MPa (Adjustable)
Machine weight – 1500kg
Machine size – 3800 x 720 x 1100mm
SKU: single-head-hydraulic-pipe-bending
