Retractable Motorized Pergola(10 x 13 x 9 feet) with Zip Screen All Sides Dark Grey Color

Retractable Motorized Pergola For Terrace Garden With Zip Screen

Product Description:-

The retractable louver pergola is an architectural masterpiece crafted from aluminum and suitable for various applications. The sliding louvers can be completely folded to one end, allowing the light-transmitting space to reach 75%. This allows you to enjoy the panoramic sky. When closed, it can block direct sunlight and rain. The material can withstand harsh outdoor climates and environments. Aluminium construction with long service life, double top blades, load up to 120kg/m2, integrated roof gutter, easy to build with assembly instructions, and windproof.

Functional Features:-

• Sun-proof, waterproof, and ventilated – It’s powered by a new generation of shading technology with excellent shading and rain protection functionality. By flexibly adjusting the opening and closing state of the blades, you can also adjust the light and ventilation effects, allowing you to choose the best way to start your outdoor leisure life.
• Drainage System—The beam and gutter are integrated to achieve a more perfect waterproof function. Rainwater streams through the internal gutter system and to the structure’s posts, which is a practical and clever solution. Advanced rubber sealing ensures exceptional water resistance.
• Louver System – Double-layer waterproof blades, providing stronger and better heat insulation.
• Lighting System – A special waterproof LED lighting system, 24V low voltage, is stable and safe.
• Model – SOL-180
• Post – 150 x 150 x 2.0 mm
• Main Beam – 175 x 40 x 1.8 mm
• Track Beam – 173 x 40 x 1.6 mm
• Sink – 82 x 55 x 1.5 mm
• Louver – 181 x 40 x 1.2 mm
• Color – RAL 7016 Matte Grey with LED Light
• Operation – Motorized

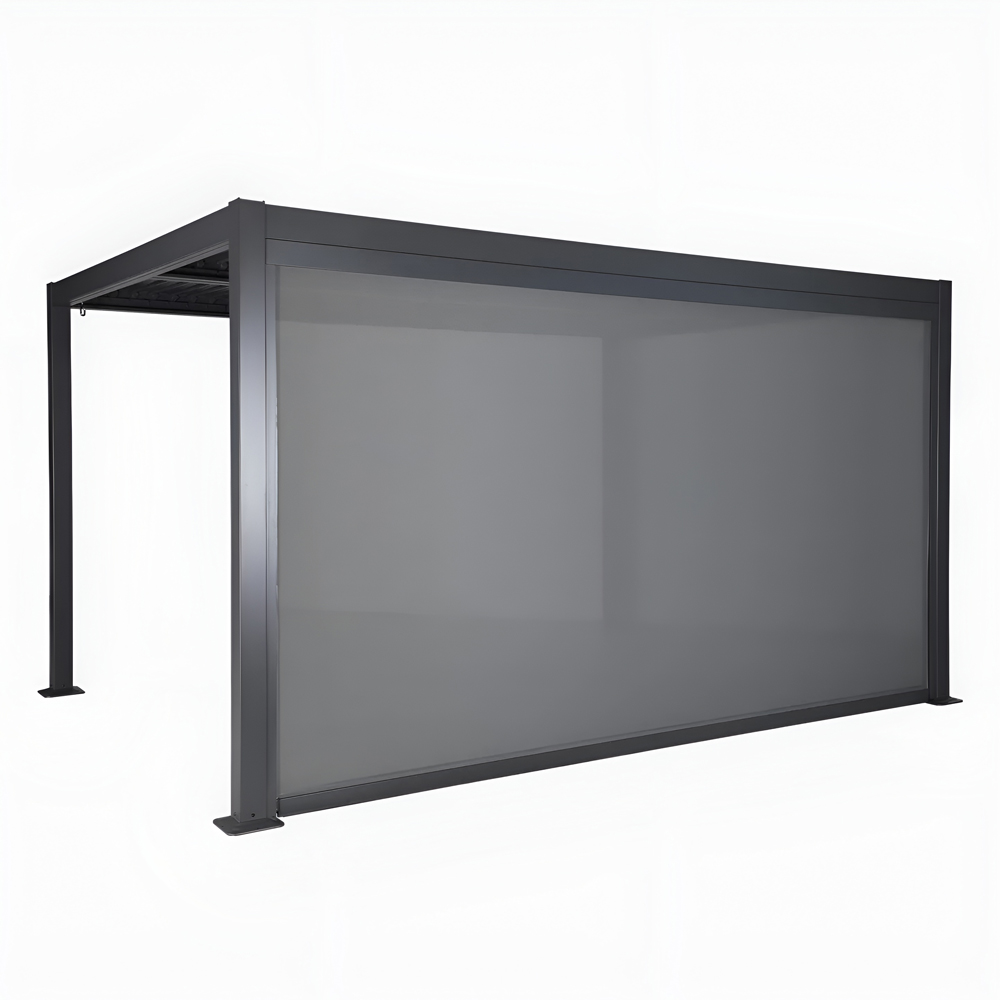

Specifications of Motorized Zip Screen Dark Grey Color

Functional Features and Specifications:-

1.  Remote-Controlled Motorized Operation – Easy up/down control at the touch of a button
2. UV & Heat Protection – Blocks harmful rays while keeping your space cool
3. Wind & Privacy Shield – Acts as a barrier against the breeze and outside view
4. All-Weather Durable Fabric – Fade-resistant, water-repellent, and low-maintenance
5. Compatible with Most Pergola Structures – Ideal for aluminum, wooden, and louvered pergolas
6. Sleek and Minimal Design – Blends seamlessly into any outdoor aesthetic.
7. Zip Screen Size – 13 x 9 feet (two sides) and 10 x 9 feet (two sides)
8. Color -Dark Grey (HJ-5006)
9. Material – 6063 Aluminium alloy + Stainless steel accessories
10. Surface – Pure resin outdoor metal high-density powder spray
11. Side View -108 x 180 x 50 mm
12. 95 mm Double-layer aluminium alloy, double-layer split track, 130 mm aluminium alloy cover

Motor and Fabric Details of Zip Screen:-

Motor Selection:10N/50N
The standard configuration of a windproof shutter motor is a built-in silent 10N motor (used with 4m²), a motor greater than 4m², and a set of 50N motors.
1. Single Frequency: A remote control intelligently controls a motor.
2. Dual Frequency: A remote control can control two motors (curtains) separately, but cannot control them together to lift.
3. Multi-Frequency: A single remote can simultaneously control the lifting or lowering of 15 motorized roller blinds or individually operate each unit. Users can select the mode that best suits their specific needs. Equipped with a Wi-Fi-enabled remote control module.

Polyester Fabric:-

1. Both Shading, Light transmission, and ventilation performance can offset up to 99% of the solar radiation, while keeping the air unimpeded.
2. Excellent fire performance, polyester fiber fabric, while other fabrics do not have flame-retardant performance.
3. Moisture-proof, bacteria cannot reproduce, and the fabric will not mildew.
4. Tear resistance, natural break resistance, significant wind resistance, and the ability to withstand frequent use, with excellent bending performance.
