Wall Fan Coil Unit – Efficient Indoor Cooling & Heating Solution:-
A Wall Fan Coil Unit (FCU) is a compact HVAC device used for cooling and heating indoor spaces. It works by circulating air over a coil filled with chilled or hot water, providing efficient temperature control.
Mounted on the wall, these units are widely used in homes, hotels, offices, and commercial buildings with centralized cooling or heating systems. They offer a quiet, energy-efficient, and space-saving solution for maintaining indoor comfort.
wall Fan coil Unit
Showing all 2 results
-
wall Fan coil Unit

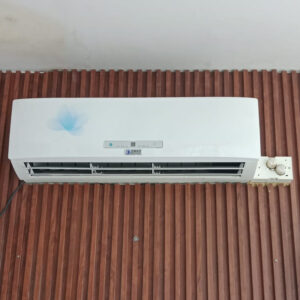

Wall Fan Coil Unit 18 Watt
Wall-mounted water temperature air conditioner FAN COIL UNIT
Manual vent valve。
Model: xc-3p
Power supply: 220V / 50Hz
Rated power: 18W
Water flow: 650L
Cooling water temperature: 7-17 ° C
Refrigerating capacity: 2-3kw
Heating water temperature: 35-70 ° C
Heating capacity: 4-6kw
Circulating air volume: 400-700m2
Cooling and heating area: 20-30m2
Low high noise: 20-36 dB
Production date: 2022Important Note:
1. The installation of water supply and return pipes must be tightened with two wrenches until the point of strength is reached!
2. In the direction of the water connection pipe, the gray-blue line is the power line of the two-way valve. The indoor temperature sensor line with a black rubber head must be thrown into the air during installation, and cannot touch the copper pipe or other objects.
3. An electric two-way valve shall be installed during refrigeration!SKU: SOL_T8B19B732492
