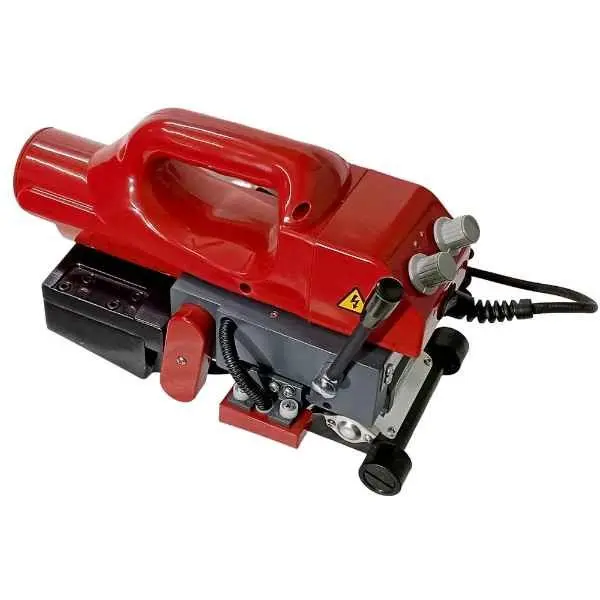

Hdpe Geomembrane Sheet Welding Pond liner Machine with Steel Roller

Hdpe Geomembrane Sheet Welding Pond liner Machine with Steel Roller

Product Description:-

HDPE geomembrane sheet welding machine LST800 advanced hot geo sheet welding machine, with a light, small structure for welding HDPE, LDPE, EVA, PVC, ECB, and PP  thermoplastic material. We used it in waterproofing projects like tunnels, subways, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, and roofing.

Technical Specification:-

Model no: LST800
Voltage: 220v
Frequency: 50/60Hz
Roller: Steel Roller (Set of 2- Up Down)
Rated Power: 800W
Welding speed: 0.5-5m/min
Heating temperature: 50-450℃
The thickness of material: 0.2mm-1.5mm (Single layer)
Overlap width:10cm
Seam Width: 12.5 mm X 2, Interior Cavity 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction)
Weight:5.0kg

Applications of Sheet Welding Machines:-

1. Solid Waste Landfills
2. Chemical Mining
3. Sewage Treatment
4. Water Conservancy
5. Anti-Seepage Project
6. Aquaculture

Boot Steps for Operating Machine:-

1. Connect the Power supply, lift the pressure handle, the pressure roller separates automatically, and press the power switch.
2. Set the required welding temperature and wait for the temperature to reach the set value.
3. Set the Speed control Knob to the required scale.
4. Place the welding machine in the welding position and insert the film material.
5. Put down the pressure handle, and the machine starts welding.
6. Do observe the welding seam on the membrane. If there is any deviation, adjust on time.
7. After welding, lift the pressure handle, move the machine away from the welding position.
8. Turn off the power switch.

Precautions to be followed:-

1. Please confirm that the machine is turned off and unplugged before disassembling the welding machine, to avoid injury from live wires or components inside the machine.
2. The welding machine generates high temperatures and high heat, which can cause fire or explosion when used incorrectly, especially when it is in proximity to combustible materials or explosive gases.
3.  Please do not touch the hot wedge ( during welding or when the welding machine has not completely cooled down ) so as not to burn.
4. The power supply voltage must match the rated voltage marked on the welding machine and be reliably grounded. Connect the welding machine to a socket with a protective ground conductor.
5. It is strictly forbidden to use the welding machine in water or muddy ground, avoid soaking, rain or damp.

Buy online SOLWET Geomembrane liner sheet welding machine LST800 is available in stores cites Delhi, Jaipur, Bhopal & Lucknow in India and to our channel network partners at best-discounted prices and fast delivery within the City, same day. We can also supply all over India by road/Air transportation. Are you looking for a quality product? You are at the right place, for HDPE geo sheet welding machines are up to 1.5mm single-layer. Solwet LST800 HDPE sheet fusion welding machine is the best performance for underground tunnels, subways, water conservancy, aquaculture, fishery ponds, biogas plants, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.

Distribution network:-

Our channel network in all metro and capital cities: Delhi, Lucknow, Jaipur, Bhopal, Mumbai, Pune, Bangalore, Kolkata, Chennai, Hyderabad, Ahmadabad, Raipur, Patna, Vishakhapatnam, Nagpur, Vadodara, Chandigarh, Shimla, Indore, Jodhpur, Kanpur, Dehradun, Ludhiana, Jalandhar, and Patna.
We sell online and offline HDPE liner welding machines with low market prices and the best quality & remarkable performance, and durability for years in adverse conditions.

We provide after-sales service within the reach of Delhi, Jaipur, Bhopal, and Lucknow. Our prices are very competitive and the best discount on the SOLWET brand.
We also offer a bulk purchase discount. You can contact us if planning to bulk purchase of HDPE geo sheet welding machine.
