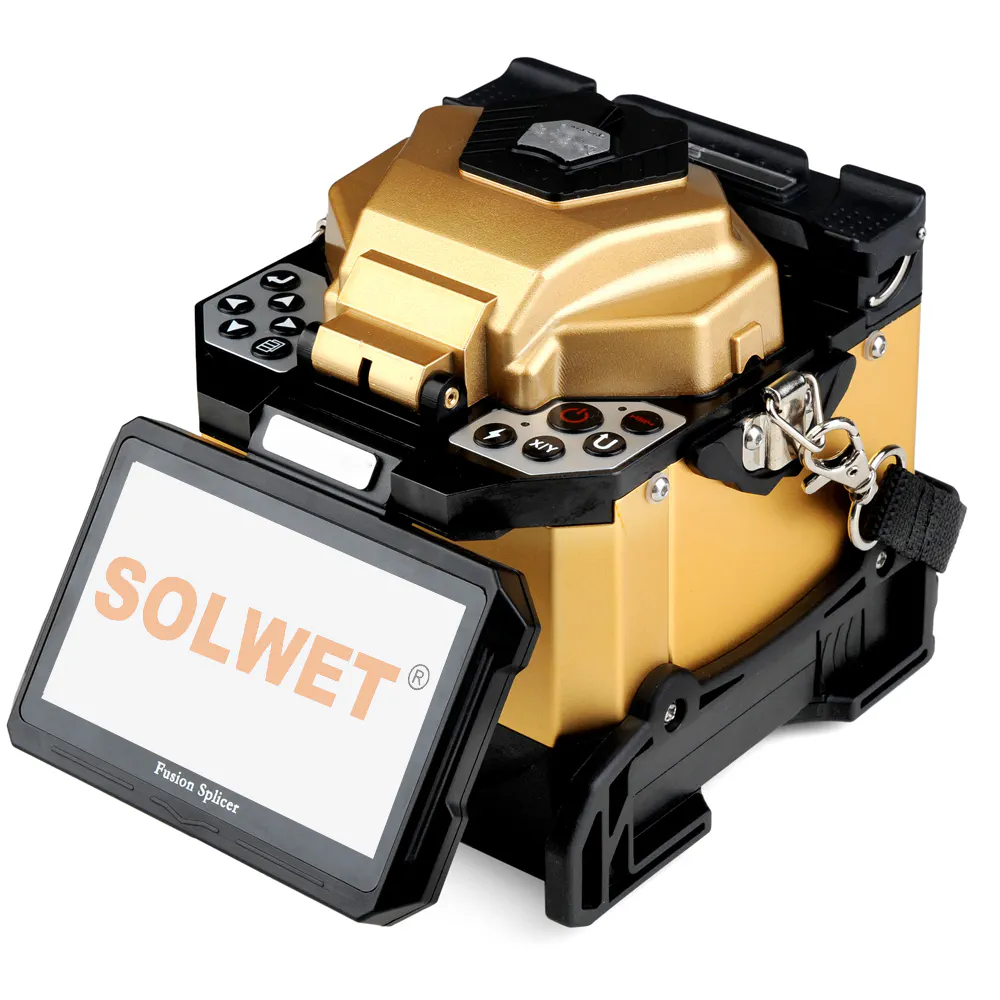

Fiber optics splicing machine T – 308X Splice time: 7 seconds high magnification for ftth

Availability:

10 in stock


Key Features:

  1.  Quick splicing time: 8 seconds
  2.  Quick heating time: 15 seconds
  3.  High Magnification

123310 160143 - Including GST 18%

10 in stock

we are fiber optic splicing machine suppliers, the Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.

Our OEM has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion splicer research. T – 308X is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.

Technical Specifications

 ModelT-308 X
Applicable FibersSM, MM, NZ-DS, EDF, Pigtail, Drop Cable (rubber-insulated wire),

SC/LC/FC connector (optional function)

Average Splice Loss0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss≥60dB
Quick splicing time8 seconds
Quick heating time15 seconds
Protection Sleeve Length40mm, 45mm, 60mm
Splicing Program50 groups
Operating LanguageChinese, English, French, Portuguese, Spanish, Italian, Indonesian
Operating Conditions-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power SupplyAC inputAC adaptor: 100~240V input voltage, 50/60Hz
DC input12V, 5A output voltage(DC)
BatteryInner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heat

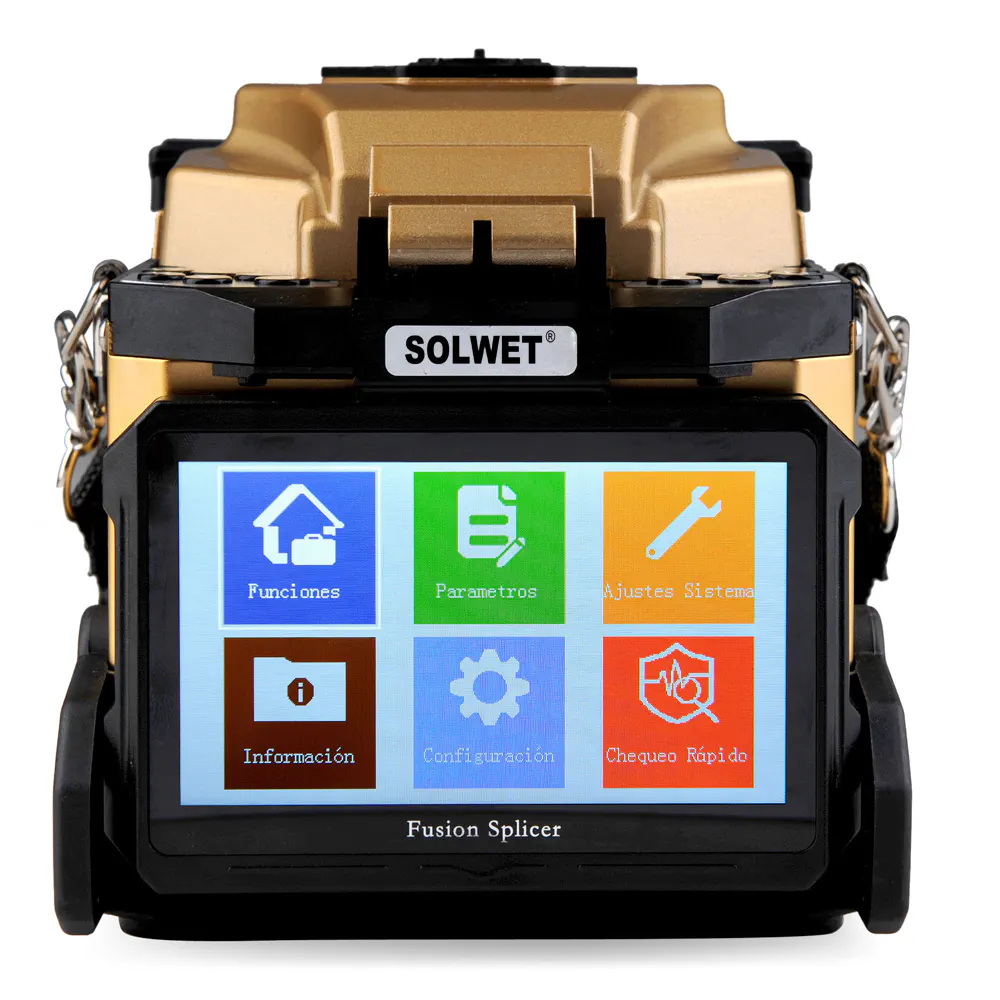

MonitorDual cameras, 90︒bi-dirctional view ,4.3 inches high resolution colorful LCD display
Fiber Image MagnificationX or Y Separately 520 times or Simultaneously 220 times
Estimated Splice LossAvailable
Cleaving Angle DetectionAvailable
Automatic Self-CheckCameraAvailable
Forward Motor
Tension Test1.96~2.25N
Storage of Splice Result6,000 groups of latest splice results
Splicing ModelAuto & Manual & Full Auto & Stepping
Optical Fiber Fixture3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector)
TerminalUSB for Memorizing and Updating
Dimensions120(W)*120(D)*130(H)mm
Weight1.29kg(without battery )

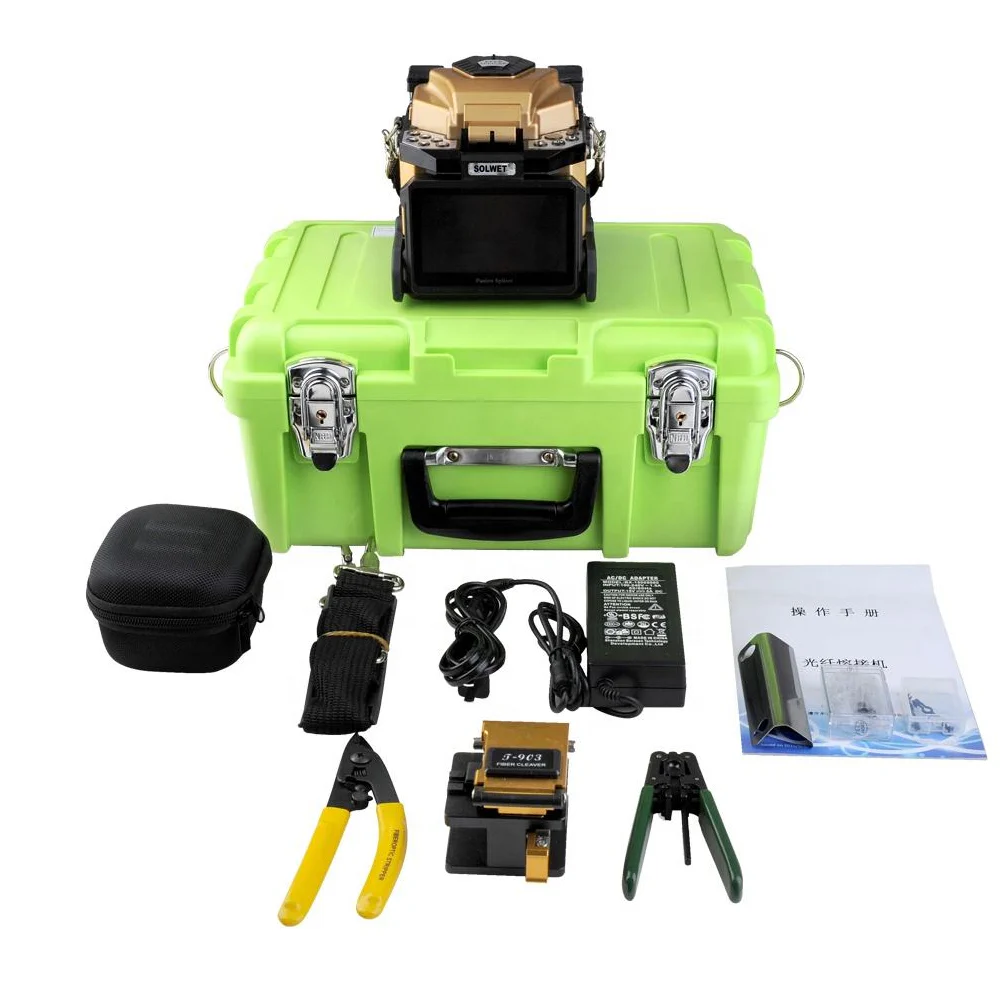

Standard Accessories

No.ItemQuantity
1Machine T-3081
2Fiber Cleaver1
3Fiber Stripper1
4AC Adaptor (Charger)1
5Battery1
6Spare Electrodes1
7Cooling Tray1
8Instruction CD1
9Quick Reference Guide1
10Rubber-insulated wire stripping pliers1
11Rubber-insulated wire 3-in-1 cutting fixture1
12Carrying Case with Carrying Strap1

*Custom-made Professional anti-shock tool kit (case) with sponge inside

*T-308= T-308 +SOC fixture (for SC/LC/FC connector)
