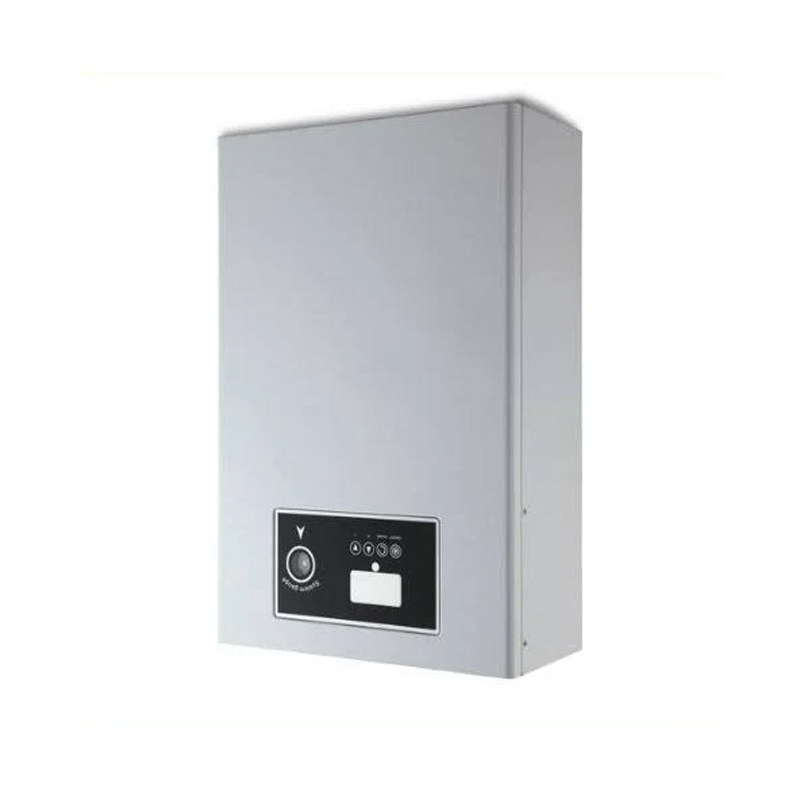

ELECTRIC HOT WATER BOILER FOR CENTRAL ROOM HEATING SYSTEM
Complete Metal case with white paint. With a convenient installation structure.
* Unique Heating Element, high heating efficiency.
* Touchpad operation panel with blue LED display
* High length Infrared remote control & the remote control distance can be 10 meters.
* The boiler is equipped with an optional control unit interface. It can connect to an external controller.
* Built-in expansion tank & pump to avoid complicated system installation.
* Timing start-up and shutdown function. Weekly cycle set the program.
* Double dry-heating protection function.
* Automatic anti-freezing function to ensure continuous heating in whole winter.
* Fault auto-detection technique, the fault code will be displayed automatically while failure.
* Ultra low noise working, no effect on the environment
* Built-in Pump
Technical specification of the Electric Hot water Boiler 7.5KW – 220V
Model (Single Heating) | SM204 | SM207 | SM209 | SM312 | SM314 | SM318 | SM321 | SM324 |
| Voltage | 220-240V | 380-400V | ||||||
| Phase | 1 | 3 | ||||||
| Frequency | 50Hz / 60Hz | |||||||
| Power | 4kw | 6kw | 9kw | 12kw | 14kw | 18kw | 21kw | 24kw |
Rated Current | 17.8A | 32.4A | 39.3A | 78.3 | 3*13A | 3*17.3A | 3*21A | 3*26A |
| Wire | 3*6mm2 | 3*8mm2 | 3*10mm2 | 3*6mm2 | 5*2.5mm2 | 5*4mm2 | ||
| Heating Area – m2 | 40-60 | 60-80 | 80-100 | 100-130 | 70-100 | 160-200 | 200-220 | 220-240 |
| Heating Output – BTU/h | 30708 | 45944 | 51180 | 61416 | 30708 | 40944 | 51180 | 61416 |
| Temp. Setting Range | 35℃~80℃ (In radiator mode ) Default Value is 65℃ | |||||||
35℃~65℃ (In floor heating mode ) Default Value is 50℃ | ||||||||
| First Class Anti-freezing function activate temp. | ≤8℃ | |||||||
| First Class Anti-freezing function stop temp. | ≥10℃ | |||||||
| Second Class Anti-freezing function activate temp. | ≤5℃ | |||||||
| Second Class Anti-freezing function stop temp. | ≥30℃ | |||||||
| Output Voltage of Pump | 220V | |||||||
| Capacity of Expansion Tank | 5L | |||||||
| Thermal Cut-out | 90C / 110C | |||||||
| Inlet & Outlet Connection | G1/2” | |||||||
| Backwater Inlet connection | G3/4” | |||||||
| Product Size | 620mm*350mm*200mm (SM Series) | |||||||
700mm*425mm*250mm (SM-E series) | ||||||||
| Packing Size | 700mm*420mm*258mm (SM Series) | |||||||
805mm*535mm*360mm (SM-E series) | ||||||||
| Out Carton (1pc/CTN) | 720mm*438mm*278mm (SM Series) | |||||||
825mm*555mm*390mm (SM-E series) | ||||||||
