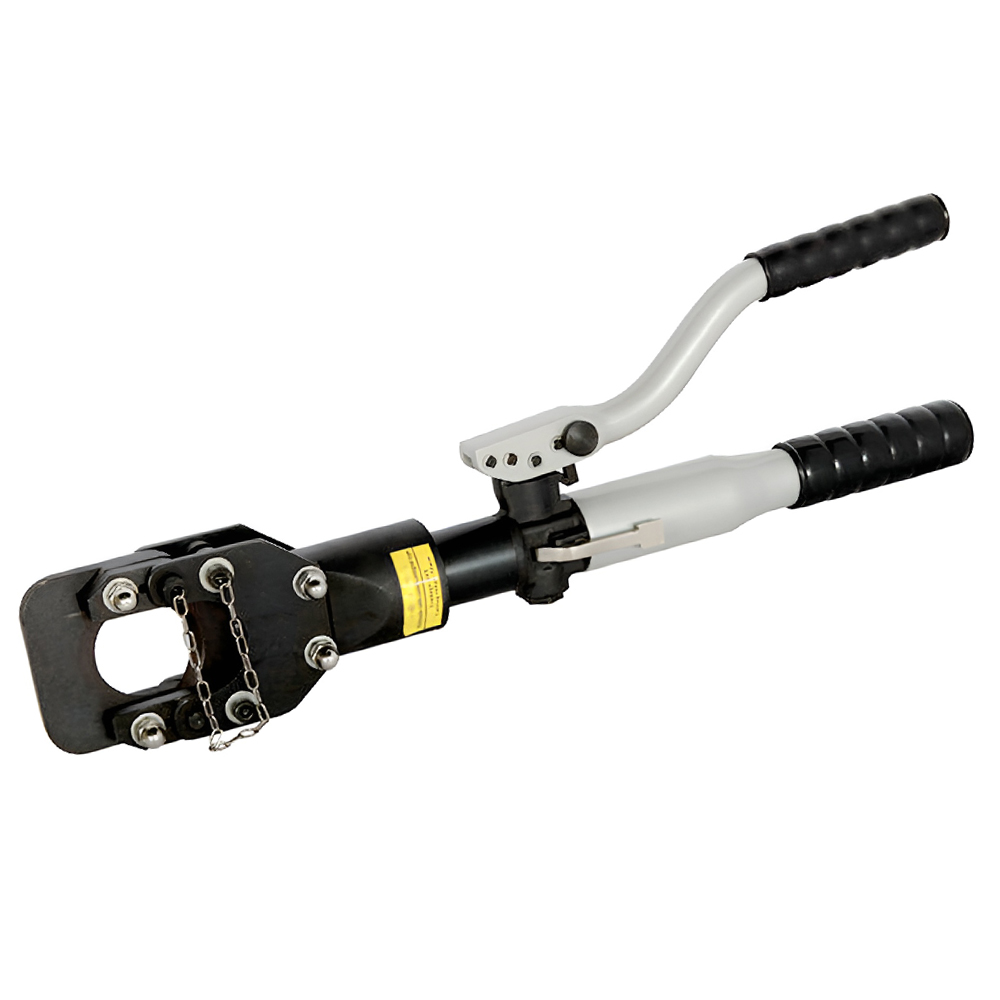

Hydraulic Cutter SMPL50A for ACSR, Cu, Al, Armoured cable

Hydraulic Cable Cutter SMPL50A

Technical Specifications:-

• Model No -SMPL 50A
• Hydraulic Ram Output – 9 Ton
• Cutting Range – 50 mm (ACSR, Cu, Al, Armoured cable)
• Gross Weight- 9.5 kg
• Packing Size – 61 x 12 x 11 cm

Product Description:-

• Closed cutting head with Bolt interlock, rotatable, flip-top style.
• High-quality cutting blades, Flip-top Head, rotating 330 deg.
• Cuts ACSR, Armoured, Al, and Cu Cables up to 50 mm.

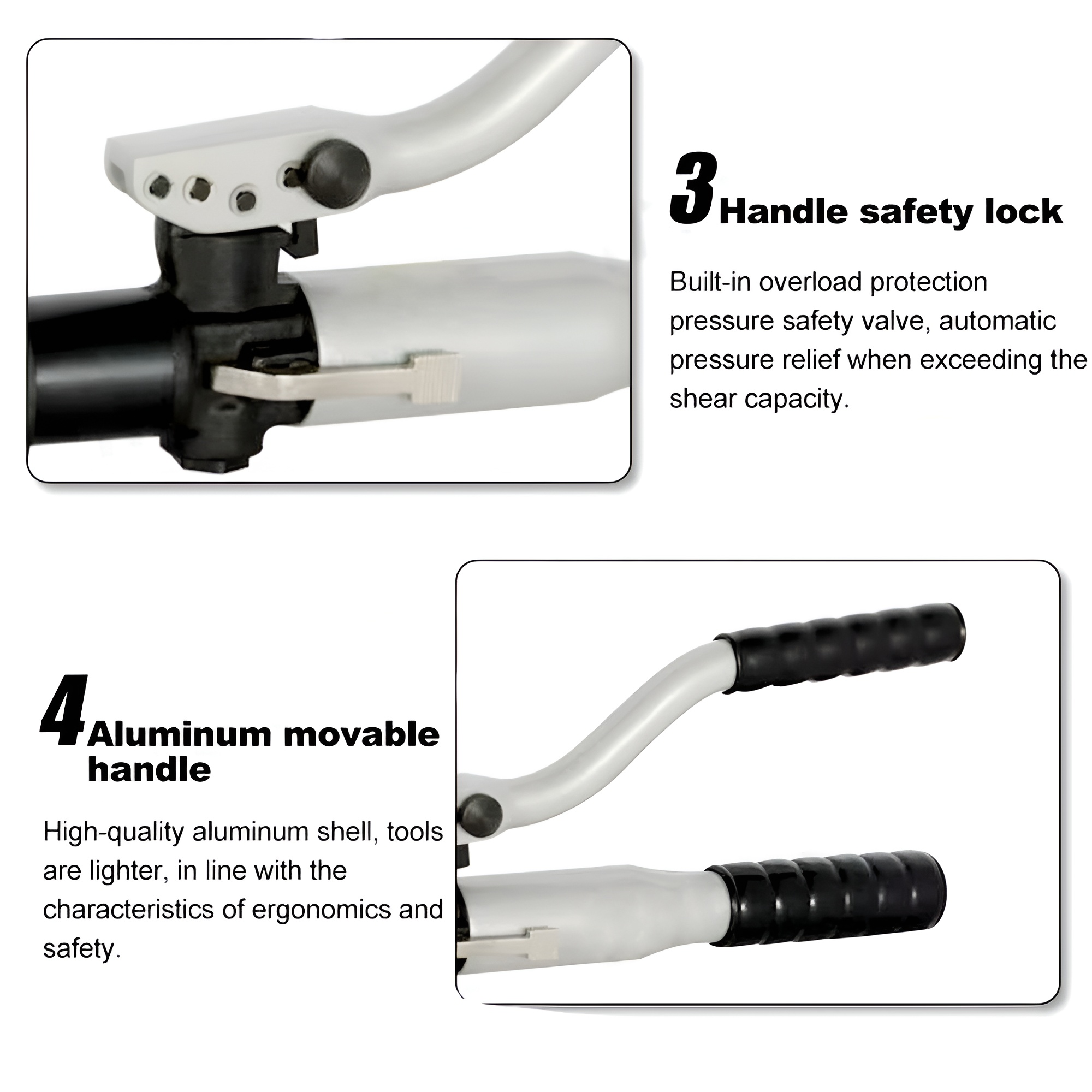

• Aluminium pump lever and housing result in low weight with built-in Safety Valve.
• Built-in pressure relief valve prevents overloading.

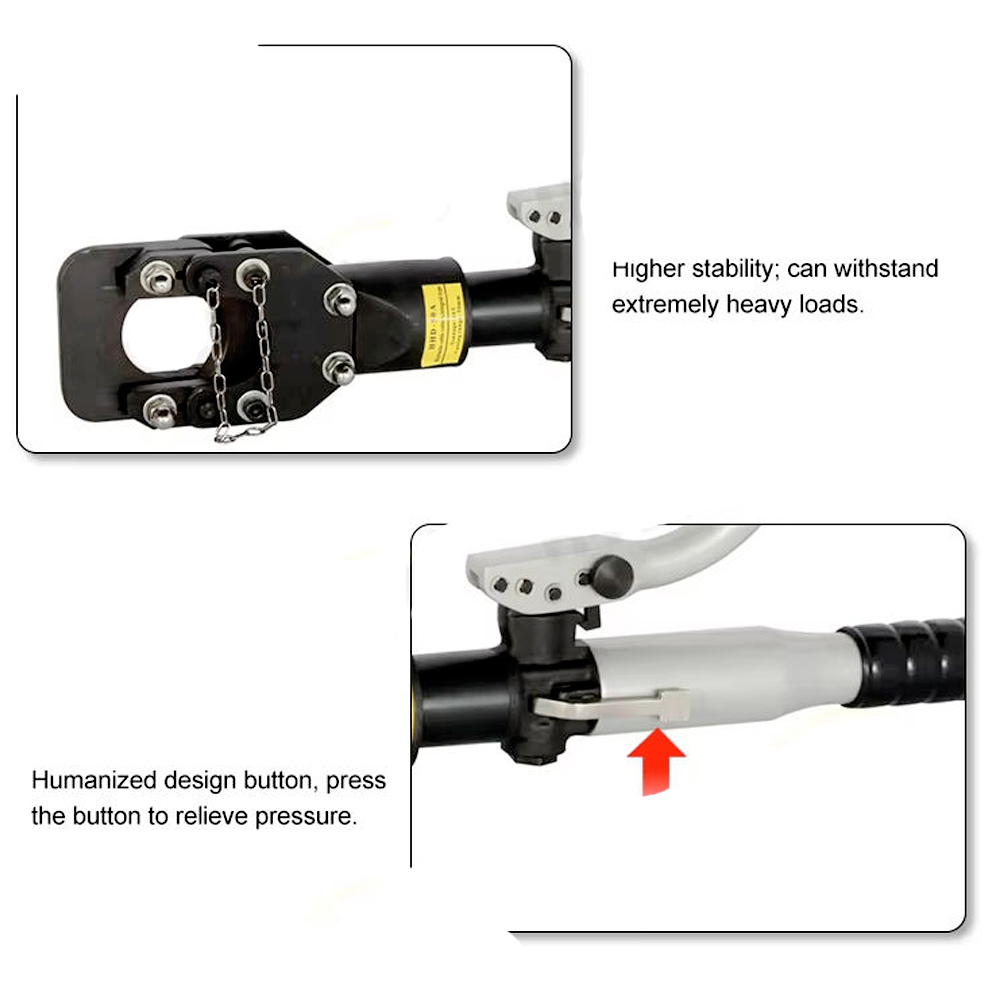

• Press the manual release to quickly retract the ram.
• Innovative 2-stage hydraulic system reduces operator fatigue and cycle time.
• Steel Storage Box .

Uses of Hydraulic Cable Cutter:- Cuts  ACSR, Armoured Al, Cu Cables
